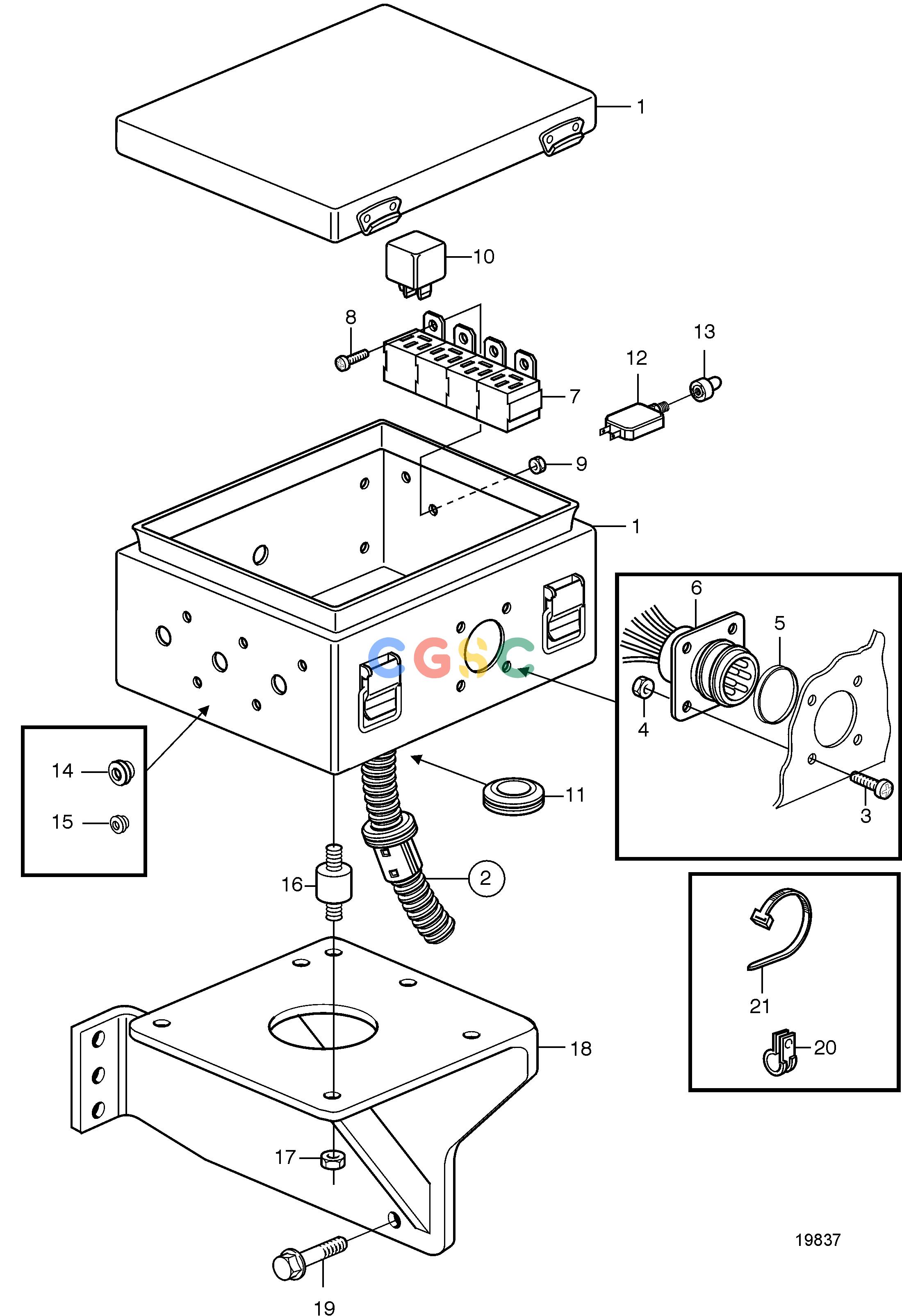

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemElectrical System 24VEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873953
|
[1] |
Box
|
|
| 2. |
874697
|
[1] |
Wiring harness
|
|
| 3. |
956046
|
[4] |
Cross recessed screw
|
|
| 4. |
955778
|
[4] |
Hexagon nut
|
|
| 5. |
846615
|
[1] |
Sealing ring
|
|
| 6. |
846611
|
[1] |
Housing, instrument panel
|
|
| 7. |
977184
|
[1] |
Housing
|
|
| 8. |
969405
|
[2] |
Six point socket scr
|
|
| 9. |
990977
|
[2] |
Lock nut
|
|
| 10. |
3171420
|
[2] |
Relay
|
|
| 11. |
943920
|
[1] |
Plug
|
|
| 12. |
966689
|
[1] |
Fuse
|
8A
|
| 13. |
862006
|
[1] |
Nut
|
|
| 14. |
974683
|
[3] |
Plug
|
|
| 15. |
974680
|
[6] |
Plug
|
|
| 16. |
1228599
|
[4] |
Cushion
|
|
| 17. |
990939
|
[4] |
Flange nut
|
|
| 18. |
3836012
|
[1] |
Bracket
|
|
| 19. |
20405792
|
[3] |
Flange screw
|
|
| 20. |
983472
|
[1] |
Cable tie
|
|
| 20. |
948211
|
[1] |
Cable tie
|
|
| 21. |
942400
|
[1] |
Clamp
|
D=7,9mm
|
| 21. |
949746
|
[1] |
Clamp
|
D=12,7mm
|
| 21. |
949747
|
[1] |
Clamp
|
D=15,9mm
|
| 21. |
945081
|
[1] |
Clamp
|
D=22,2mm
|
| 21. |
947827
|
[1] |
Clamp
|
D=25,4mm
|
