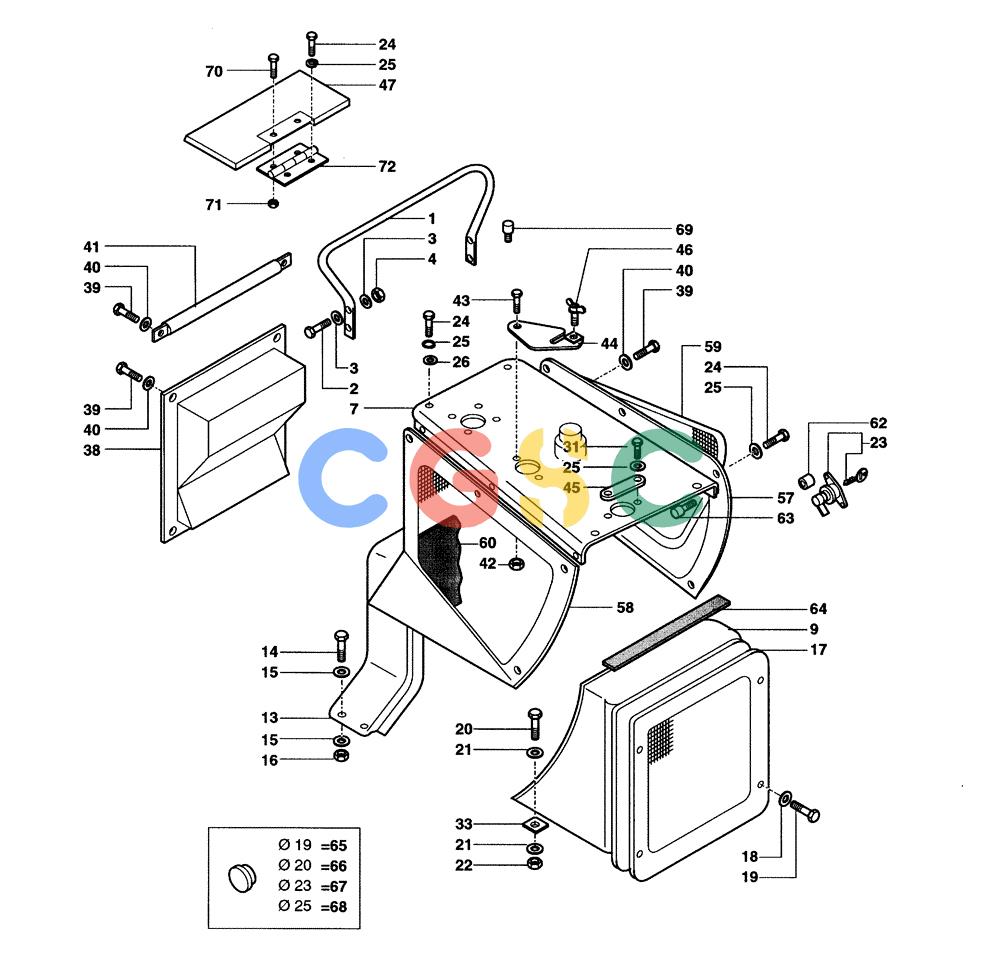

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (5.601[01C]) - HOODS - DC70 S/N 13041145 & UP LGP S/N 13045034 & UP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598273 | [1] | HANDLE | MAC |
| 2. | 76592899 | [4] | SCREW | MAC Superseded by part number: 16044024 |
| 3. | 76590895 | [8] | WASHER | MAC Superseded by part number: 86639313 |
| 4. | 76590715 | [4] | NUT | MAC- SELF-LOCKING |
| 7. | 76598752 | [1] | ENGINE HOOD PANEL | MACHOOD FRONT |
| 9. | 76598753 | [1] | COWLING | MAC |
| 13. | 76598281 | [1] | COWLING | MAC |
| 14. | 76593247 | [4] | SCREW | MAC Superseded by part number: 300512 |
| 15. | 76590745 | [8] | WASHER | MAC Superseded by part number: 8206393 |
| 16. | 76590744 | [4] | NUT | MAC Superseded by part number: 12577521 |
| 17. | 76598282 | [1] | RADIATOR GRILLE | MAC |
| 18. | 76598283 | [6] | LOCK WASHER | MAC Superseded by part number: 11198374 |
| 19. | 76590714 | [6] | SCREW | MAC Superseded by part number: 9515003 |
| 20. | 76598754 | [4] | SCREW | MAC |
| 21. | 76590724 | [8] | WASHER | MAC Superseded by part number: |
| 22. | 76591294 | [4] | NUT | MAC Superseded by part number: 12577411 |
| 23. | 76593253 | [1] | LOCK | MAC |
| 23. | 75128717 | [1] | WRENCH | NHKEY, LOCK |
| 24. | 76607068 | [17] | SCREW | MAC Superseded by part number: 11106231 |
| 25. | 76598284 | [18] | LOCK WASHER | MAC Superseded by part number: 11198479 |
| 33. | 76593255 | [4] | SHIM | MAC |
| 38. | 76598289 | [1] | FOOT BOARD | MAC |
| 39. | 76590845 | [11] | SCREW | MAC |
| 40. | 76598290 | [11] | LOCK WASHER | MAC Superseded by part number: 11194079 |
| 41. | 76598291 | [1] | CROSSRAIL | MAC |
| 42. | 76590954 | [1] | NUT | MAC Superseded by part number: 86500689 |
| 43. | 76590949 | [1] | SCREW | MAC Superseded by part number: 120112 |
| 44. | 76598292 | [1] | GUARD | MAC |
| 45. | 76593256 | [1] | BRACKET | MAC |
| 46. | 76598293 | [1] | SCREW | MAC |
| 47. | 76609667 | [1] | COVER | MACCOVER |
| 57. | 76598773 | [1] | PANEL | MACL.H |
| 58. | 76610121 | [1] | SIDE PANEL | MACR.H |
| 59. | 76610122 | [1] | LID | MACLH DOOR |
| 60. | 76598288 | [1] | INSULATING PANEL | MAC |
| 62. | 76593309 | [1] | SPACER | MAC |
| 63. | 76593310 | [2] | BLOCK | MAC Superseded by part number: 5111459 |
| 64. | 76596000 | [1] | RUBBER SEAL | MAC |
| 65. | 76596001 | [1] | PLUG | MAC |
| 66. | 76596002 | [2] | PLUG | MAC |
| 67. | 76596003 | [1] | PLUG | MAC |
| 68. | 76596004 | [1] | PLUG | MAC |
| 69. | 76605344 | [1] | INSULATOR BLOCK | MACPAD |
| 70. | 76609670 | [2] | SCREW | MAC Superseded by part number: 13276424 |
| 71. | 76590934 | [2] | NUT | MAC Superseded by part number: 12574221 |
| 72. | 76609671 | [1] | HINGE | MAC |
