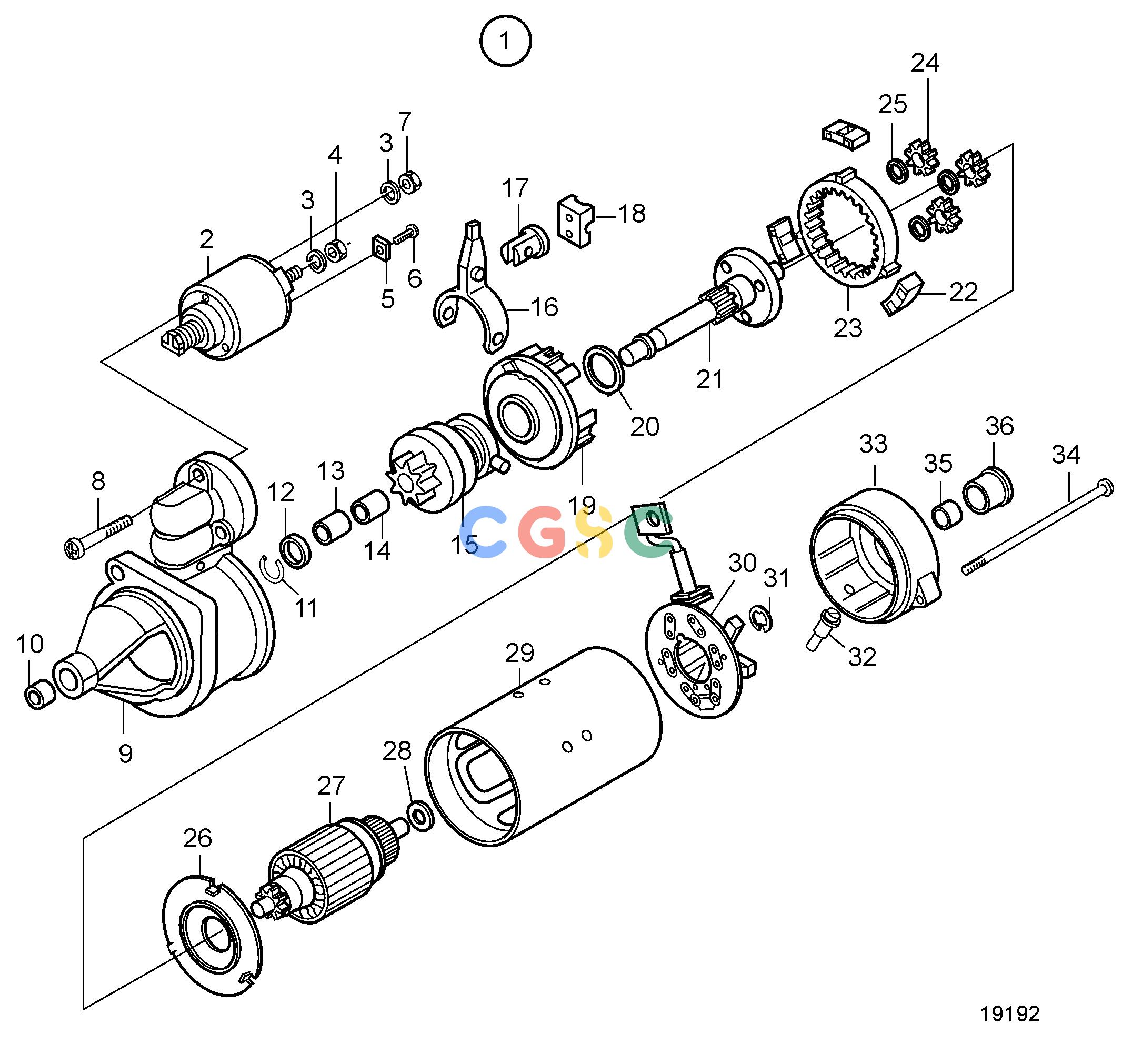

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAElectrical SystemStarter Motor, Components SN-10787691EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20405828
|
[1] |
Starter motor
|
|
| 1. |
3803517
|
[1] |
Starter motor, exch
|
|
| 2. |
20460115
|
[1] |
Relay
|
|
| 3. |
20460119
|
[2] |
Lock washer
|
|
| 4. |
20460118
|
[1] |
Hexagon nut
|
|
| 5. |
20460120
|
[1] |
Clamp
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
21147963
|
[1] |
Starter pinion
|
|
| 16. |
|
|
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
20460117
|
[1] |
Brush retainer
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
|
|
|
|
| 34. |
|
|
|
|
| 35. |
|
|
|
|
| 36. |
|
|
|
|
