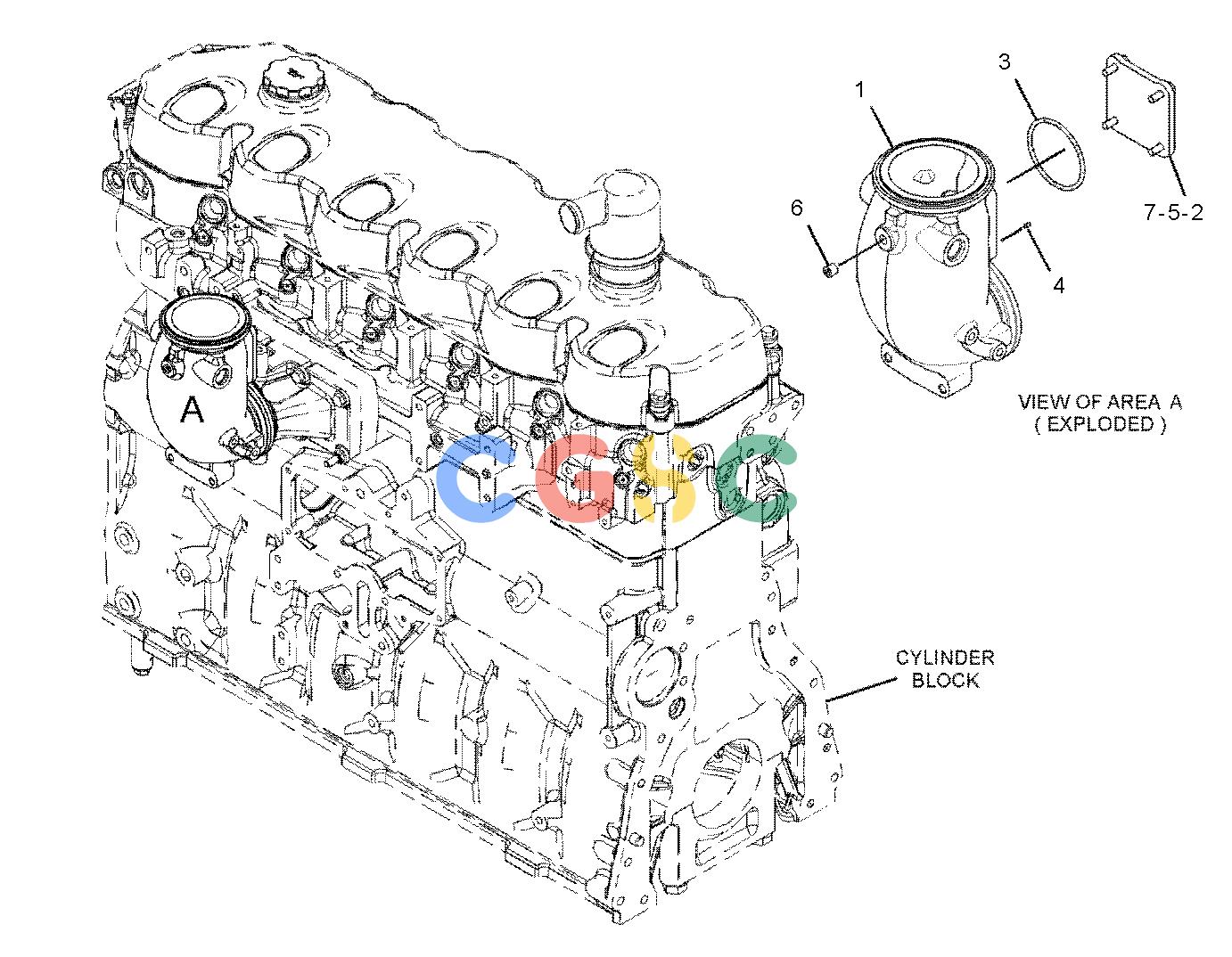

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 340-7229 | [1] | MANIFOLD | |
| 2. | 355-1125 | [1] | COVER | |
| 3. | 5P-4892 | [1] | SEAL-O-RING | |
| 4. | 6D-9953 | [1] | PIN-SPRING | |
| 5. | 6V-8214M | [4] | BOLT(M6X1X20-MM) | |
| 6. | 8T-6757 | [1] | PLUG-PIPE | |
| 7. | 9X-8267 | [4] | WASHER(6.6X12X2-MM THK) | |
| M | METRIC PART | |||
广数供应链运营团队, 14 02月, 2025，浏览： 506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 340-7229 | [1] | MANIFOLD | |
| 2. | 355-1125 | [1] | COVER | |
| 3. | 5P-4892 | [1] | SEAL-O-RING | |
| 4. | 6D-9953 | [1] | PIN-SPRING | |
| 5. | 6V-8214M | [4] | BOLT(M6X1X20-MM) | |
| 6. | 8T-6757 | [1] | PLUG-PIPE | |
| 7. | 9X-8267 | [4] | WASHER(6.6X12X2-MM THK) | |
| M | METRIC PART | |||
