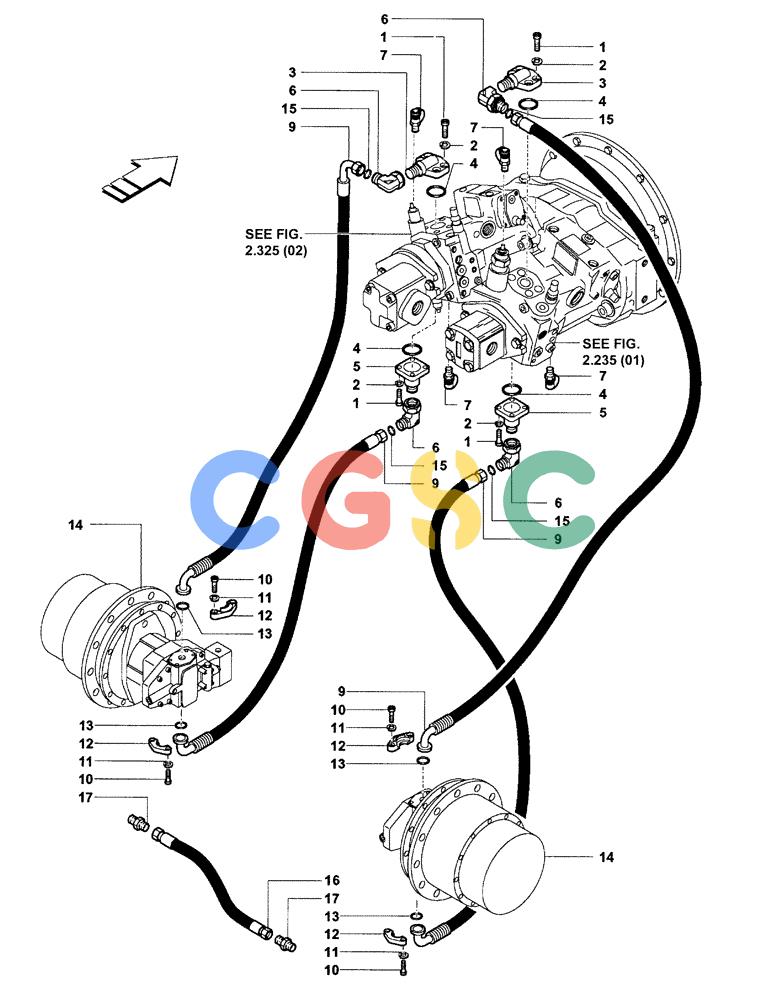

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (2.327[01A]) - HYDROSTATIC TRANSMISSION PIPINGS DC70 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590968 | [16] | SCREW | MAC Superseded by part number: 81869630 |
| 2. | 76590958 | [16] | LOCK WASHER | MAC Superseded by part number: 10571873 |
| 3. | 76590970 | [2] | FLANGE | MAC |
| 4. | 76590971 | [4] | SEAL | MAC Superseded by part number: 1725417 |
| 5. | 76590972 | [2] | FLANGE | MAC |
| 6. | 76607280 | [4] | HYD CONNECTOR | MAC |
| 7. | 76592913 | [4] | HYD CONNECTOR | MAC |
| 9. | 76590975 | [4] | HOSE | MAC |
| 10. | 76590976 | [16] | SCREW | MAC Superseded by part number: 14422221 |
| 11. | 76590977 | [16] | LOCK WASHER | MAC- LOCKWASHER Superseded by part number: 10569579 |
| 12. | 76590978 | [8] | HALF-FLANGE | MAC |
| 13. | 76590979 | [4] | O-RING | MAC- O'RING Superseded by part number: 1725418 |
| 14. | 76590797 | [2] | HYDRAULIC MOTOR | MACDRIVE ASSY. - SEE FIG. 2.329 (01A) FOR PARTS |
| 15. | 76596044 | [4] | SEAL | MAC- O'RING |
| 16. | 76598707 | [1] | FLEXIBLE HOSE | MAC |
| 17. | 76598708 | [2] | HYD CONNECTOR | MAC |
