纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (2.329[02A]) - HYDROSTATIC DRIVE ENGINES - MOTOR DC70 - DC80 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
622 次

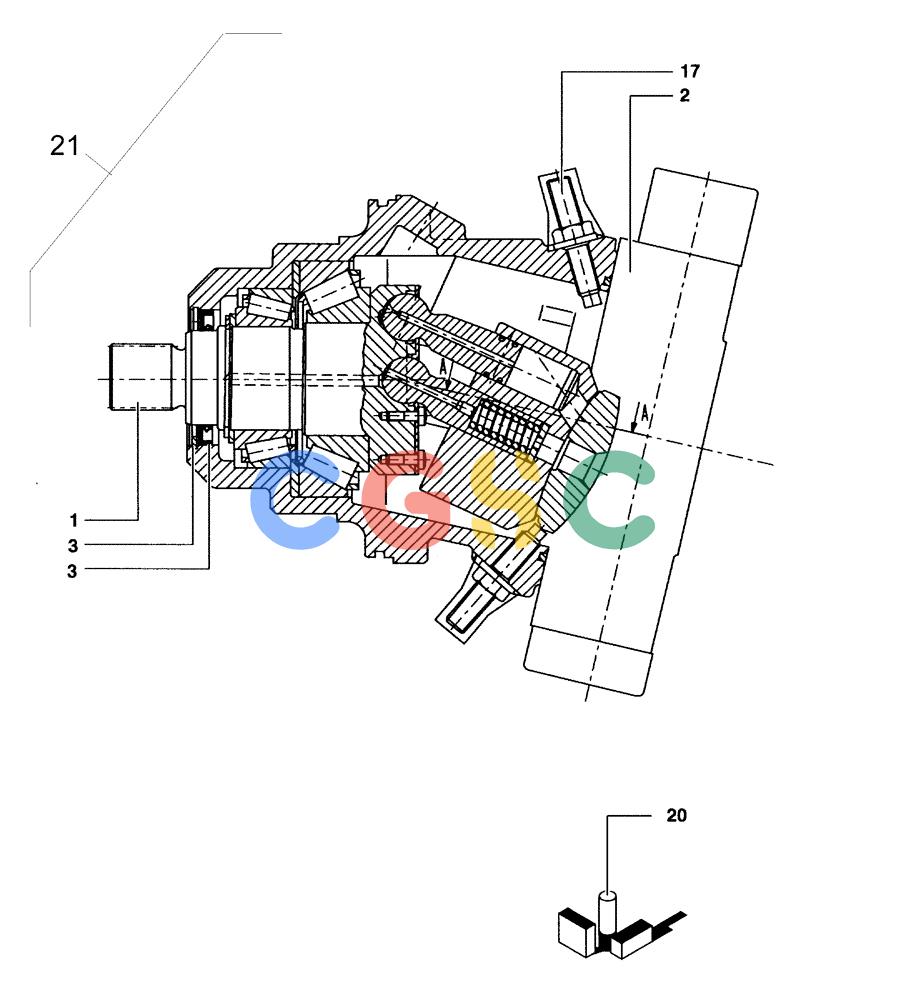

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598632 | [1] | ROTOR DISTRIBUTOR | MACROTATING GROUP - ASSY SEE TAV.3 |
| 1. | 76593126 | [1] | HYDROSTATIC MOTOR | MACROTATING GROUP - ASSY SEE TAV. 3 |
| 2. | 76598633 | [1] | COVER | MAC- ASSY SEE TAV.4 |
| 2. | 76593132 | [1] | COVER | MAC- ASSY SEE TAV. 4 |
| 3. | 76598634 | [1] | GASKET | MACKIT - SEALS Superseded by part number: 87441446 |
| 3. | 76593033 | [1] | KIT | MAC- SEALS |
| 17. | 76593129 | [1] | SCREW | MAC |
| 20. | 76598635 | [1] | KIT | MAC-SEALS |
| 20. | 76593131 | [1] | KIT | MACSEALS |
| 21. | 76593034 | [1] | HYDRAULIC MOTOR | MACMOTOR,HYDRAULIC |
| 21. | 76598677 | [1] | HYDRAULIC PUMP | MACMOTOR, HYDRAULIC |
