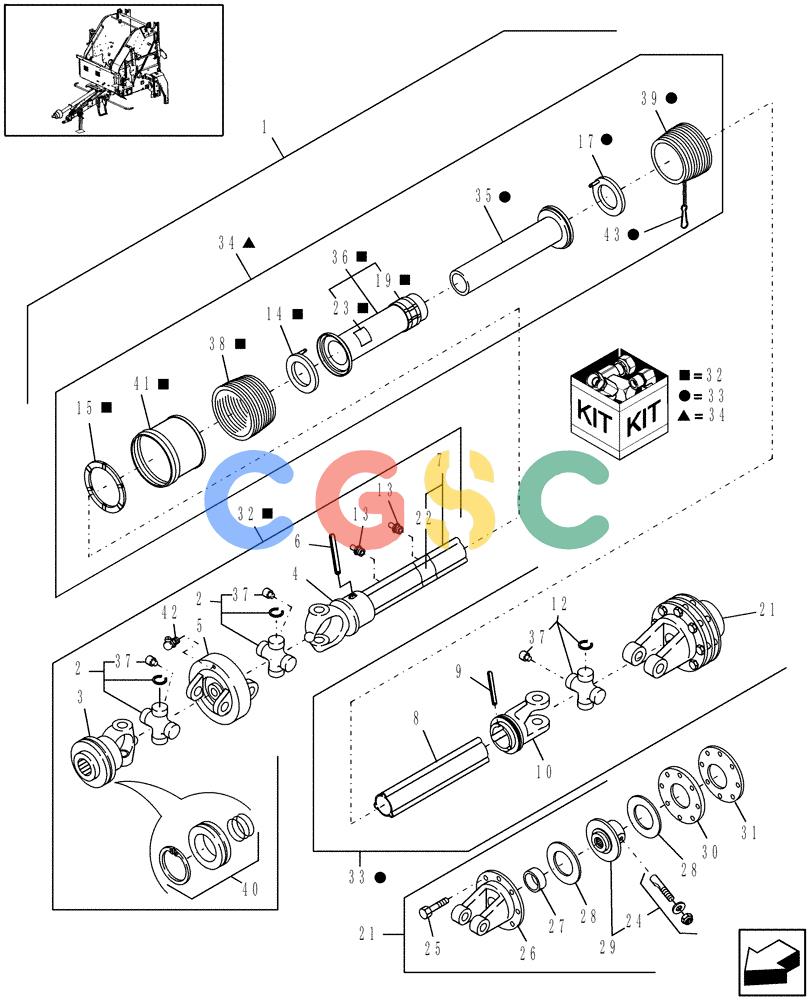

凯斯零件查询(RBX563) - CASE IH ROUND BALER (9/05-12/06) (01.21) - POWER TAKE OFF, 1000 RPM, SLIP CLUTCH, NORTH AMERICA, P.I.N. Y6N016414 & AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
763 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87516694
|
[1] |
PTO,1 3/8 x 21 Spline Incl
|
BEL
1000 RPM, Slip Clutch
|
| 2. |
87517787
|
[1] |
U-JOINT SPIDER
|
BEL
|
| 3. |
87517788
|
[1] |
YOKE
|
BEL
|
| 4. |
87517786
|
[1] |
YOKE
|
BEL
|
| 5. |
87517785
|
[1] |
BODY
|
BEL
|
| 6. |
87517784
|
[1] |
ROLL PIN,8.6mm OD x 80mm L
|
BEL
|
| 7. |
87517780
|
[1] |
TUBE
|
BEL
Outer
|
| 8. |
87517781
|
[1] |
TUBE,1170 mm L
|
BEL
|
| 9. |
86625846
|
[1] |
PIN
|
NH
Spring Superseded by part number: 87586150
|
| 10. |
87517779
|
[1] |
YOKE
|
BEL
|
| 11. |
87517776
|
[1] |
SLIP CLUTCH
|
BEL
|
| 12. |
87018246
|
[1] |
SPIDER
|
RAC
|
| 13. |
87012758
|
[2] |
LUBE NIPPLE
|
PA
LUBRICATOR Superseded by part number: 84036369
|
| 14. |
87517774
|
[1] |
SHIELD
|
BEL
|
| 15. |
87517775
|
[1] |
SHIELD
|
BEL
Includes: Clip
|
| 16. |
PL
|
[12] |
PROCURE LOCALLY
|
BAS
Screw
|
| 17. |
86625852
|
[1] |
RING NUT
|
NH
|
| 19. |
87518208
|
[1] |
COLLAR ASSY.
|
BEL
|
| 22. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 22. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
| 23. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 23. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 24. |
86625865
|
[1] |
KIT
|
NH
Tapered
|
| 25. |
87012735
|
[8] |
KIT
|
PA
Bolt
|
| 26. |
86625860
|
[1] |
CLUTCH PLATE
|
NH
Superseded by part number: 86625849, 86625849, 87012732
|
| 27. |
86984909
|
[1] |
BUSHING
|
EML
Superseded by part number: 84026575
|
| 28. |
84011442
|
[2] |
DISC
|
ZED
Superseded by part number: 86517364
|
| 29. |
86625864
|
[1] |
HUB
|
NH
|
| 30. |
87517773
|
[1] |
THRUST PLATE
|
BEL
|
| 31. |
87517766
|
[1] |
BELLEVILLE SPRING
|
BEL
|
| 32. |
87517789
|
[1] |
FRONT PTO ASSY
|
BEL
|
| 33. |
87517790
|
[1] |
REAR PTO ASSY
|
BEL
|
| 34. |
87517791
|
[1] |
REPAIR KIT
|
BEL
|
| 35. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Shield
|
| 37. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 40. |
87018800
|
[1] |
KIT
|
PA
Kit
|
| 42. |
933205R91
|
[1] |
LUBE NIPPLE,90 Degree, M8 x 1.25
|
IH
|
| 43. |
86979198
|
[1] |
CHAIN,229mm L
|
PA
Safety
|
