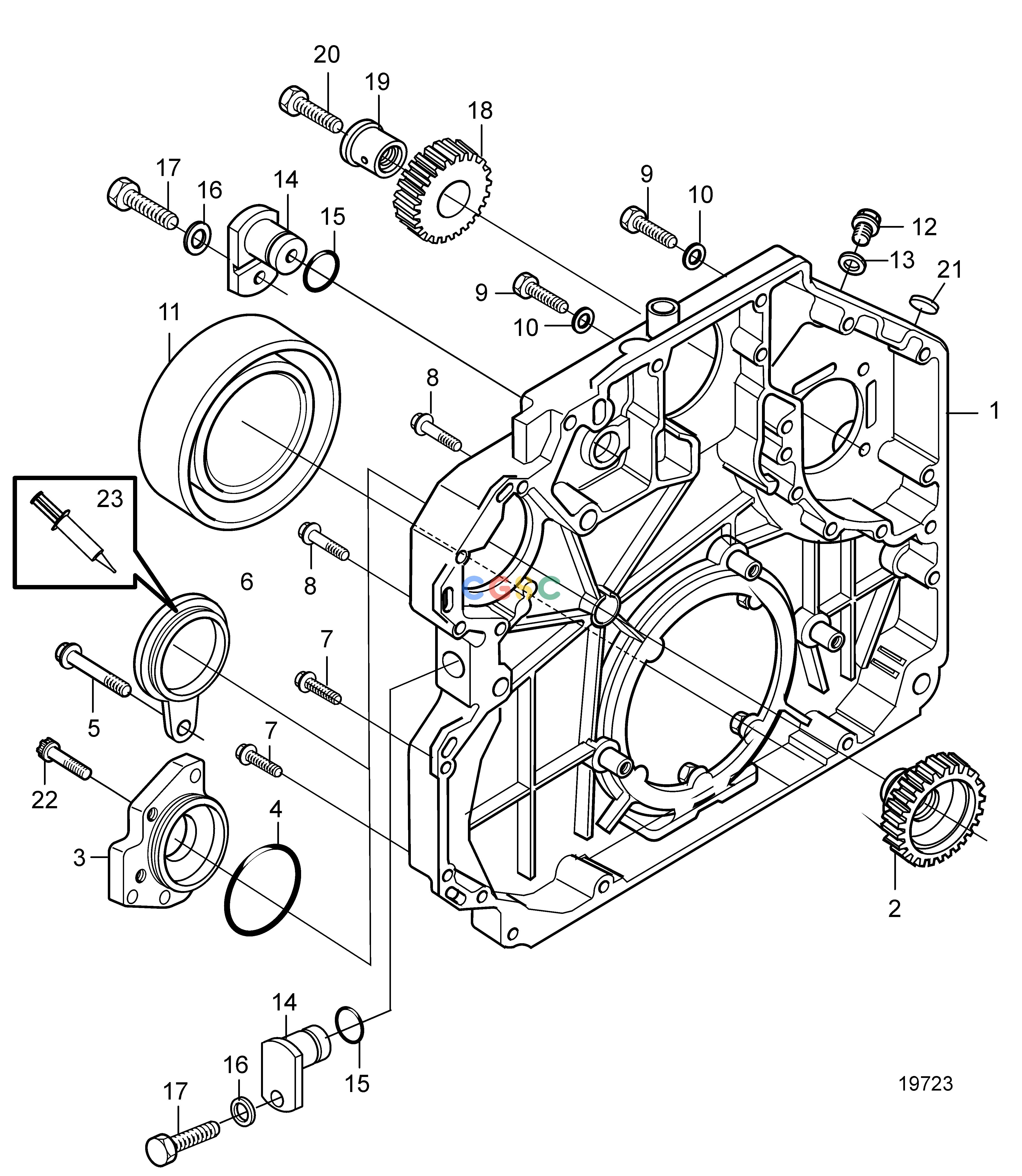

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAEngineTiming Gear Casing and GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20405735
|
[1] |
Timing gear cover
|
(20459974)
|
| 1. |
20743680
|
[1] |
Timing gear cover
|
(20405735)
|
| 2. |
20512175
|
[1] |
Gear
|
|
| 2. |
20916167
|
[1] |
Gear
|
(20512175)
|
| 3. |
20460507
|
[1] |
Flange
|
PTO ''C'', 8& 16cm³ hydr. pump by keel cooling system. D5A & D7A T.
|
| 3. |
21101972
|
[1] |
Flange
|
PTO ''C'', 8& 16cm³ hydr. pump by keel cooling system. D5A & D7A T., (2
|
| 3. |
3586614
|
[1] |
Adapter
|
PTO ''C'', 8 & 16cm³ hydr. pump, freshwater system.
|
| 4. |
20405652
|
[1] |
O-ring
|
|
| 5. |
20460508
|
[3] |
Six point screw
|
|
| 6. |
20405740
|
[1] |
Cover
|
Replaced by 20459901
|
| 6. |
20459901
|
[1] |
Cover
|
(20405740)
|
| 6. |
20706651
|
[1] |
Cover
|
SN-01099468
|
| 6. |
20950063
|
[1] |
Cover
|
SN01099469-, Replaced by 22610639
|
| 6. |
22610639
|
[1] |
Cover
|
SN11830770-, Use Sealant 22618325
|
| 7. |
975199
|
[12] |
Flange screw
|
|
| 8. |
20450801
|
[4] |
Flange screw
|
|
| 9. |
20405653
|
[2] |
Screw
|
|
| 10. |
955900
|
[2] |
Washer
|
|
| 11. |
20412286
|
[1] |
Lip seal, crankshaft seal
|
|
| 12. |
960630
|
[1] |
Plug
|
|
| 13. |
969011
|
[1] |
Gasket
|
|
| 14. |
20405553
|
[1] |
Wear part
|
|
| 15. |
20459904
|
[1] |
O-ring
|
|
| 16. |
973494
|
[1] |
Washer
|
|
| 17. |
20405706
|
[1] |
Screw
|
|
| 18. |
20405558
|
[1] |
Idler gear
|
|
| 18. |
20555503
|
[1] |
Idler gear
|
(20405558)
|
| 19. |
11700504
|
[1] |
Pivot pin
|
|
| 20. |
20405560
|
[1] |
Hexagon screw
|
|
| 21. |
20405605
|
[1] |
Cover
|
|
| 22. |
20405559
|
[3] |
Six point screw
|
|
| 23. |
22618325
|
[1] |
Sealant
|
|
