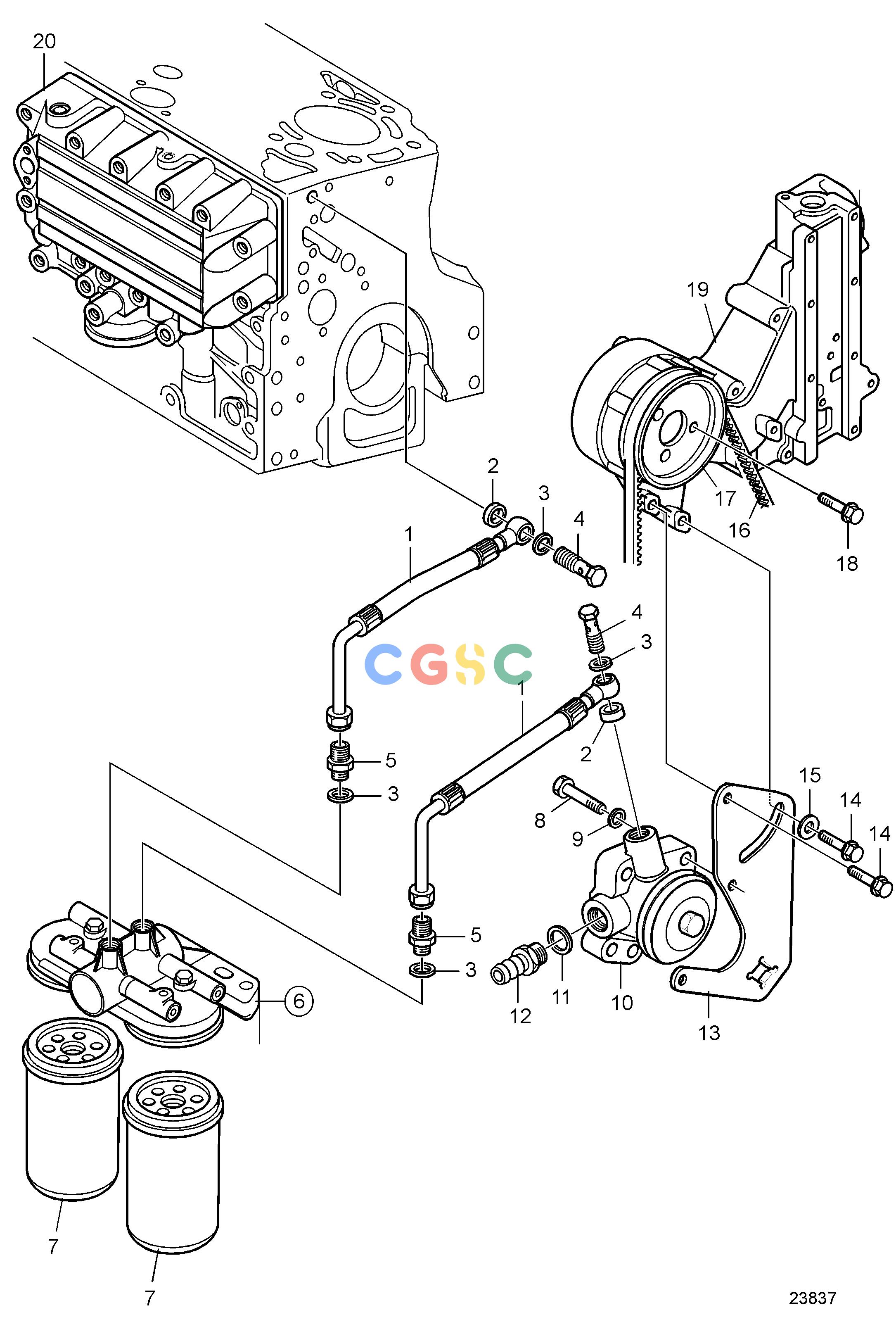

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAFuel SystemFuel Filter Housing and Fuel Filter with Shift Valve, ClassifiableEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
256 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20798506
|
[1] |
Hose
|
|
| 2. |
20799234
|
[2] |
Sealing ring
|
|
| 3. |
21108673
|
[4] |
Sealing ring
|
|
| 4. |
20405562
|
[2] |
Hollow screw
|
|
| 5. |
20799255
|
[2] |
Nipple
|
|
| 6. |
20798472
|
[1] |
Fuel filter housing
|
|
| 7. |
864315
|
[2] |
Filter
|
|
| 8. |
20450912
|
[2] |
Hex. socket screw
|
|
| 9. |
20460063
|
[1] |
Spring washer
|
|
| 10. |
20460417
|
[1] |
Pump
|
SN-010557491
|
| 10. |
21518471
|
[1] |
Pump
|
For V-belt 21322035
|
| 10. |
21264822
|
[1] |
Pump
|
Replaces earlier fuelpumps, Replaced by 21518471
|
| 11. |
947622
|
[1] |
Gasket
|
|
| 12. |
20412596
|
[1] |
Hose nipple
|
|
| 13. |
20460254
|
[1] |
Bracket
|
|
| 14. |
20460028
|
[2] |
Hexagon screw
|
|
| 15. |
20405734
|
[2] |
Washer
|
|
| 16. |
976490
|
[1] |
V-belt
|
L=1200mm
|
| 17. |
888715
|
[1] |
Gear pulley
|
|
| 18. |
20405792
|
[3] |
Flange screw
|
L=16mm
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
