纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (0.140[01]) - SOLENOID - INJECTION EQUIPMENT DC70 - DC80 - DC100 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
410 次

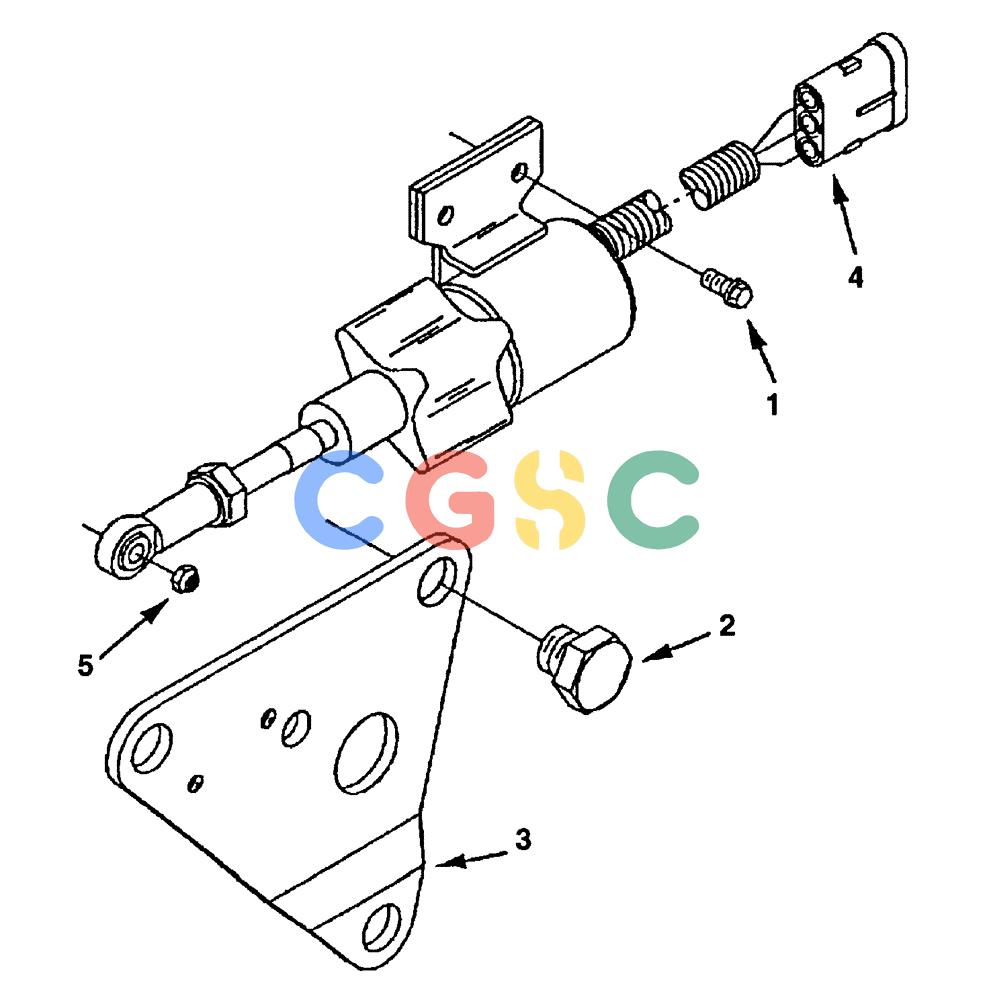

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3900626 | [2] | SCREW,M6 x 12mm | L6 x 1 x 12 |
| 2. | 76192538 | [2] | SCREW | TOR16 x 1.5 x 12 Superseded by part number: J991132 |
| 3. | 76193253 | [1] | BRACKET | TOR Superseded by part number: J930590 |
| 4. | 76193320 | [1] | ELECTROMAGNET | MAC Superseded by part number: REFERENCE |
| 5. | 76192490 | [1] | NUT | TOR5 x 0.8 Superseded by part number: J930683 |
