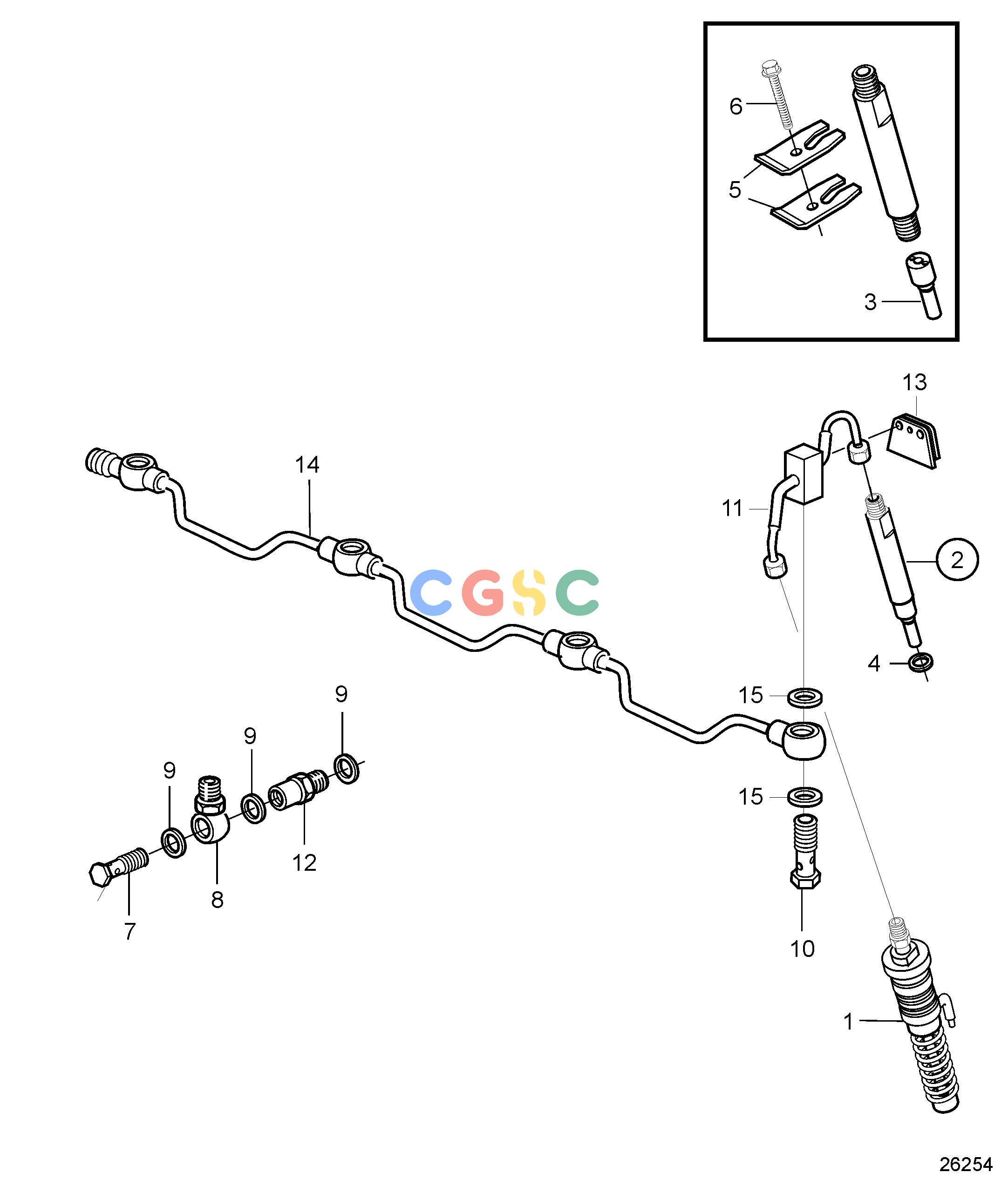

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAFuel SystemInjectors and Leak-off Line, Jacketed Pressure Pipes Stage 2 Tier 2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20500360
|
[4] |
Injection pump
|
|
| 1. |
3803967
|
[4] |
Injection pump
|
|
| 2. |
20502189
|
[4] |
Injector
|
|
| 2. |
3803948
|
[4] |
Injector
|
|
| 3. |
20524235
|
[4] |
Nozzle
|
|
| 4. |
11700426
|
[4] |
Gasket
|
|
| 5. |
11700424
|
[8] |
Bracket
|
|
| 6. |
20405559
|
[4] |
Six point screw
|
|
| 7. |
20405847
|
[1] |
Valve
|
|
| 8. |
|
|
|
|
| 9. |
969011
|
[3] |
Gasket
|
|
| 10. |
888767
|
[4] |
Hollow screw
|
|
| 11. |
21932558
|
[4] |
Fuel pipe, delivery pipe
|
|
| 12. |
20550302
|
[1] |
Bushing
|
|
| 13. |
888770
|
[6] |
Sealing ring
|
|
| 14. |
888875
|
[1] |
Leak-off line
|
|
| 15. |
947620
|
[8] |
Gasket
|
|
