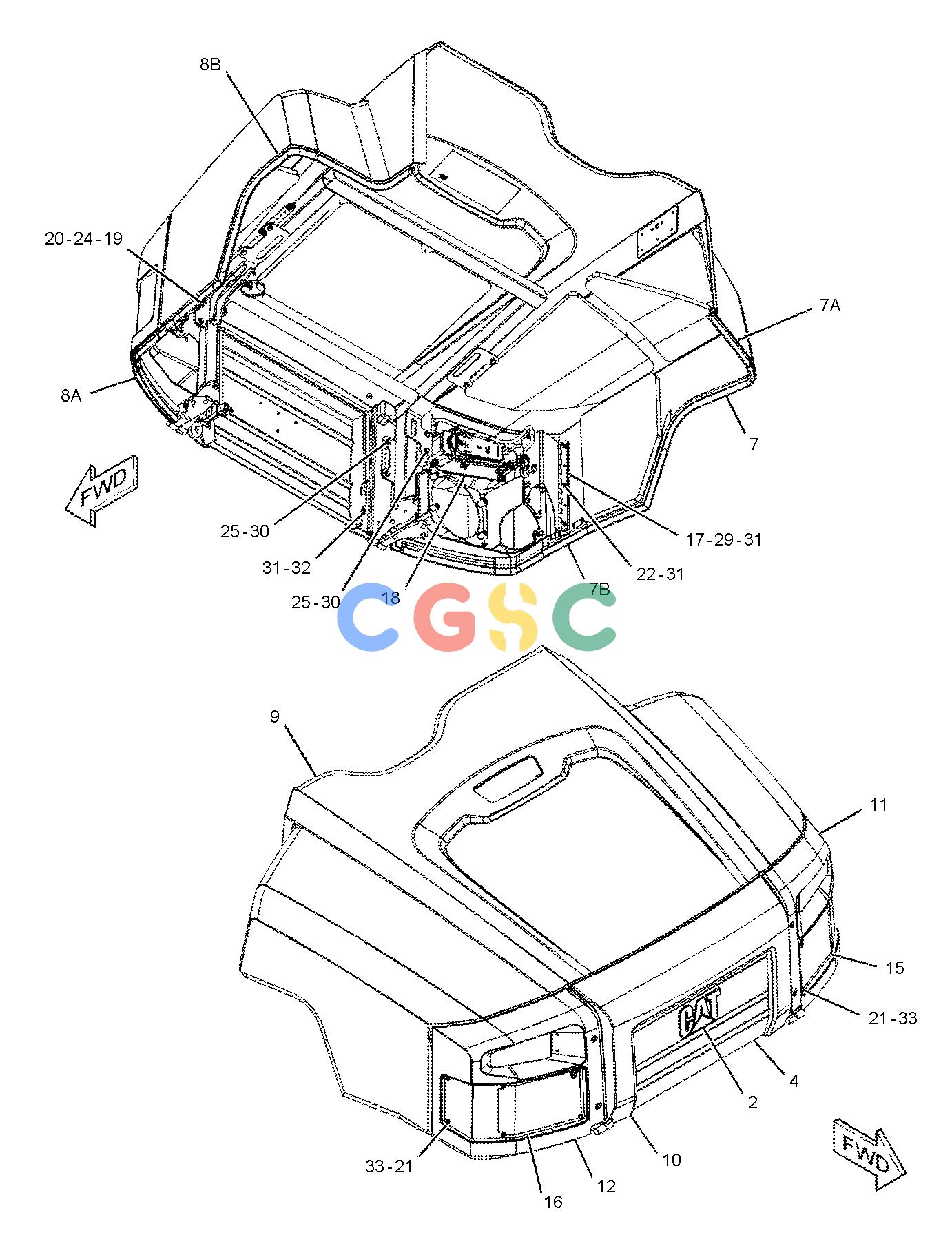

卡特零件查询（725C） 428-8459: HOOD GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 359-5895 | [2] | HINGE AS | |
| 2. | 374-3455 | [1] | PLATE-IDENTIFICATION(CAT) | |
| 3. | 384-0455 | [1] | FRAME AS-HOOD | |
| 4. | 385-7999 | [1] | GRILL AS | |
| 5. | 385-8003 | [2] | HINGE AS | |
| 6. | 386-2761 | [1] | GRILL AS | |
| | 5G-8871M | [1] | BOSS(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 7. | 387-2779 | [1] | SEAL AS(RH)(RH) | |
| 7A. | 280-7618E | | SEAL(142-CM) | |
| 7B. | 280-7618E | | SEAL(125-CM) | |
| 8. | 387-2780 | [1] | SEAL AS(LH)(LH) | |
| 8A. | 280-7618E | | SEAL(121-CM) | |
| 8B. | 280-7618E | | SEAL(150-CM) | |
| 9. | 390-8109Y | [1] | HOOD GP-ENGINE | |
| 10. | 391-4779 | [1] | PANEL AS(GRILL) | |
| 11. | 391-4780 | [1] | PANEL AS(LH) | |
| 12. | 391-4781 | [1] | PANEL AS(RH) | |
| 13. | 416-5840 | [2] | BUSHING-FLANGE | |
| 14. | 417-9992 | [4] | NUT-PUSH ON | |
| 15. | 418-5070 | [1] | HOOD AS(SIDE PANEL, LH) | |
| 16. | 418-5072 | [1] | GRILL | |
| 17. | 418-7828 | [1] | GRILL AS | |
| | 5G-8871M | [1] | BOSS(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 18. | 425-6525Y | [1] | WIRING GP-LIGHTING | |
| 19. | 216-7352M | [4] | SCREW-TRUSS HEAD(M8X1.25X30-MM) | |
| 20. | 245-1094 | [4] | NUT-RETAINING | |
| 21. | 3E-8020M | [12] | SCREW-TRUSS HEAD(M6X1X25-MM) | |
| 22. | 3T-0852M | [6] | LOCKNUT(M8X1.25-THD) | |
| 23. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 24. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 25. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 26. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 27. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 28. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 29. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 30. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| 31. | 8T-4224 | [25] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-7547M | [12] | BOLT(M8X1.25X30-MM) | |
| 33. | 9X-2038 | [12] | WASHER(7X19X2-MM THK) | |
| 34. | 417-1541E | | SEAL(170-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
