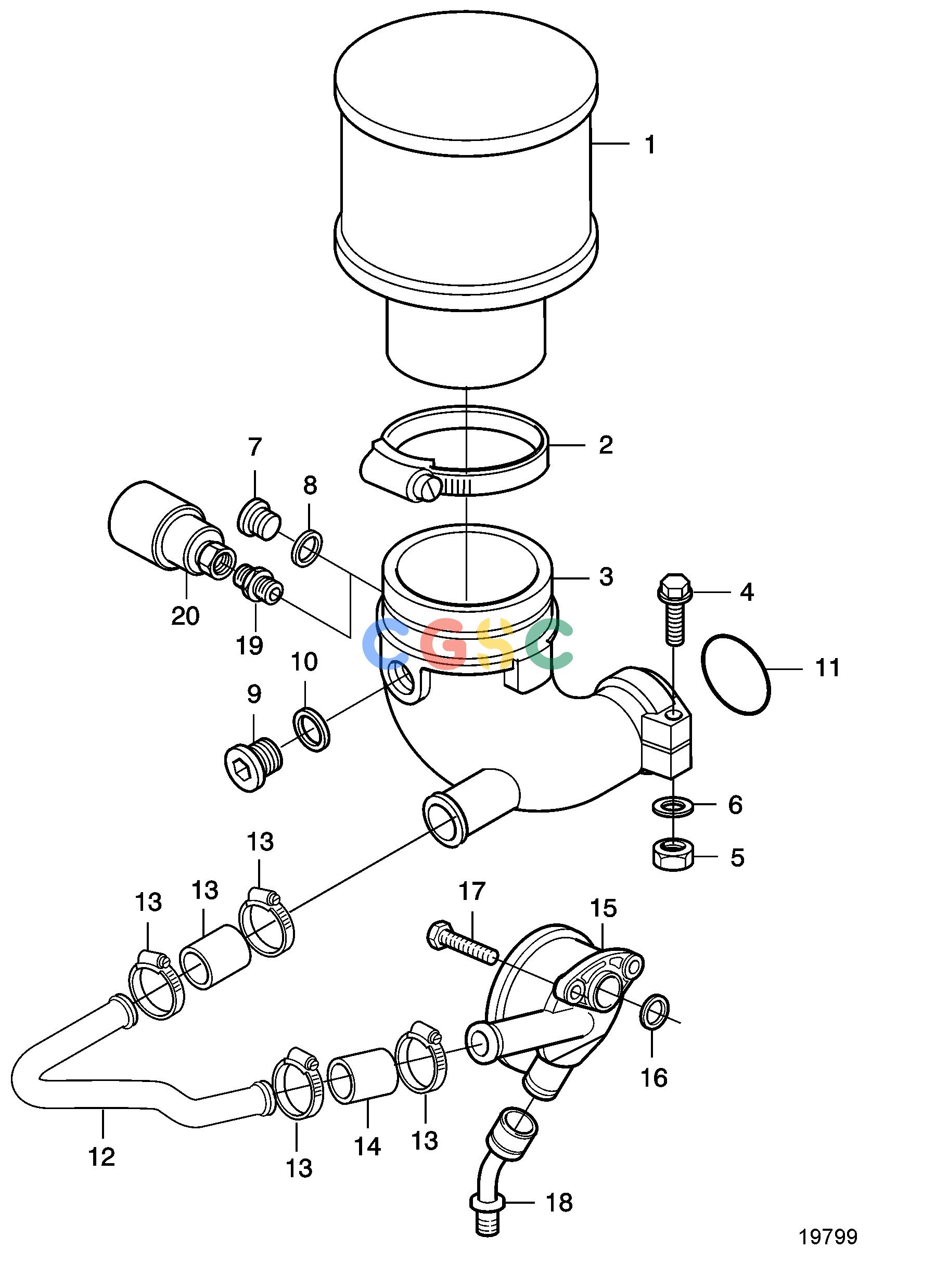

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAIntake and Exhaust SystemCrankhouse Ventilation and Air FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
581 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20483100
|
[1] |
Air filter
|
|
| 2. |
888791
|
[1] |
Hose clamp
|
|
| 3. |
888888
|
[1] |
Air inlet pipe
|
|
| 4. |
11700269
|
[2] |
Screw
|
|
| 5. |
990940
|
[2] |
Flange nut
|
|
| 6. |
20460127
|
[2] |
Washer
|
|
| 7. |
20450895
|
[1] |
Plug
|
|
| 8. |
947281
|
[1] |
Gasket
|
|
| 9. |
20459195
|
[1] |
Plug
|
|
| 10. |
957189
|
[1] |
Gasket
|
|
| 11. |
888889
|
[1] |
Sealing ring
|
|
| 12. |
888890
|
[1] |
Pipe bend
|
|
| 13. |
20405755
|
[4] |
Hose clamp
|
|
| 14. |
888814
|
[2] |
Connection hose
|
|
| 15. |
20405626
|
[1] |
Oil separator
|
|
| 16. |
20405627
|
[1] |
Gasket
|
|
| 17. |
20450728
|
[2] |
Flange screw
|
|
| 18. |
20405625
|
[1] |
Conduit coupling
|
|
