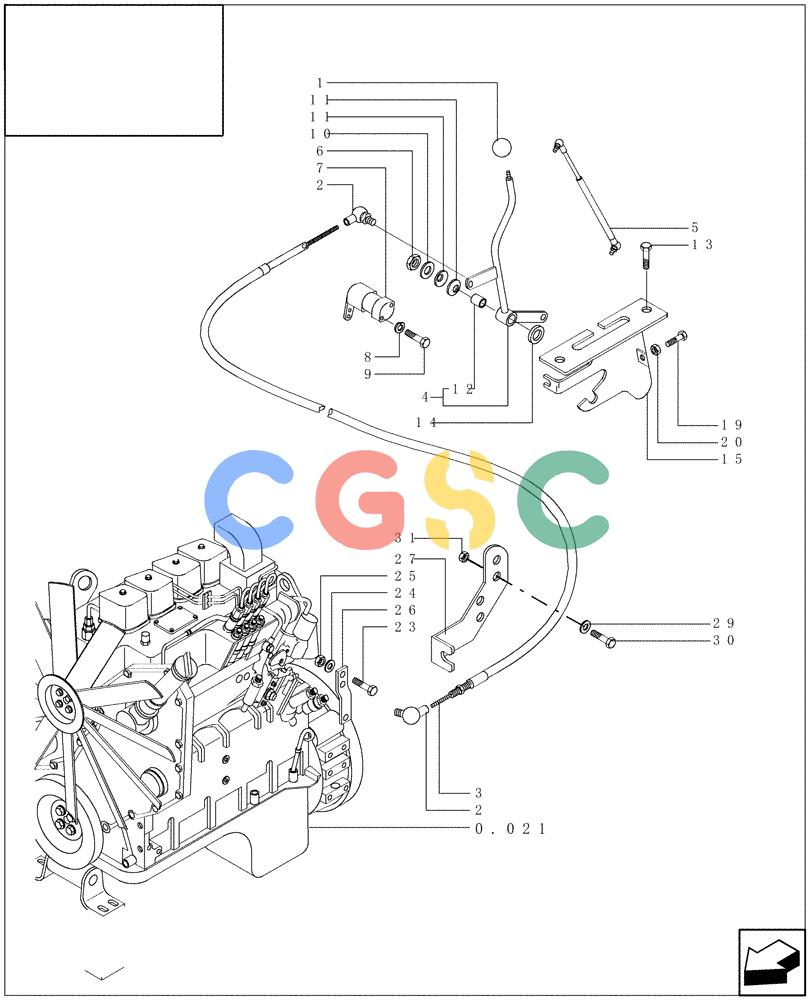

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (0.520[01A]) - THROTTLE CONTROL - DC70 STD. S/N 13041002 TO 13041067; LGP S/N 13045015 AND DOWN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
537 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76590910 | [1] | KNOB | MAC |
| 2. | 76593028 | [2] | ARTICULATION | MAC Superseded by part number: 154104301 |
| 3. | 76592831 | [1] | CABLE | MAC |
| 4. | 76593027 | [1] | LEVER | MAC |
| 5. | 76593026 | [1] | TIE-ROD | MAC |
| 6. | 76590915 | [1] | NUT | MAC Superseded by part number: 12577321 |
| 7. | 76590916 | [1] | POTENTIOMETER | MAC |
| 8. | 76590917 | [2] | LOCK WASHER | MAC |
| 9. | 76590918 | [2] | SCREW | MAC Superseded by part number: 300806 |
| 10. | 76590919 | [1] | WASHER | MAC Superseded by part number: 14496804 |
| 11. | 76590920 | [2] | SPRING | MAC |
| 12. | 76590921 | [1] | SLEEVE | MAC |
| 13. | 76590719 | [2] | SCREW | MAC Superseded by part number: 9706704 |
| 14. | 76590923 | [1] | WASHER | MAC |
| 15. | 76593029 | [1] | SUPPORT | MAC |
| 19. | 76590928 | [1] | SCREW | MAC Superseded by part number: 16043824 |
| 20. | 76590929 | [1] | NUT | MAC Superseded by part number: 43362 |
| 23. | 76590749 | [2] | SCREW | MAC Superseded by part number: 86508568 |
| 24. | 76590873 | [2] | WASHER | MAC Superseded by part number: 10519404 |
| 25. | 76590930 | [2] | NUT | TOR |
| 26. | 76605321 | [1] | BRACKET | MAC |
| 27. | 76605322 | [1] | BRACKET | MAC |
| 29. | 76590713 | [2] | WASHER | MAC Superseded by part number: 14496621 |
| 30. | 76590714 | [2] | SCREW | MAC Superseded by part number: 9515003 |
| 31. | 76590715 | [2] | NUT | MAC |
