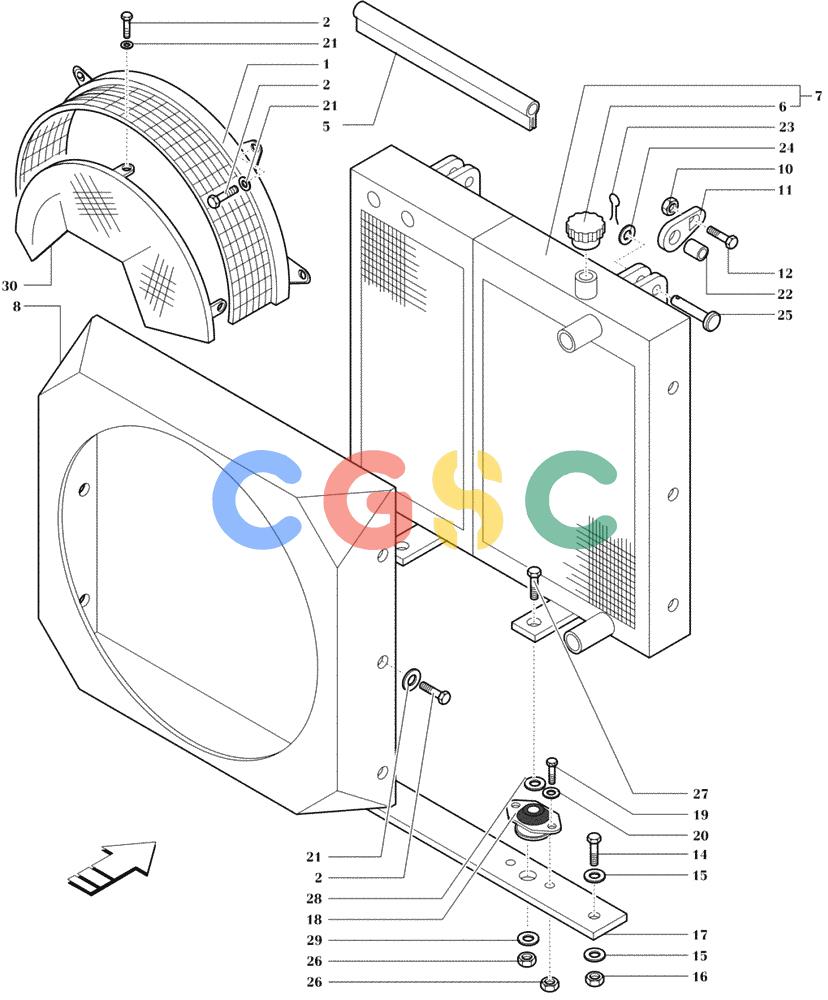

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (0.550[01A]) - ENGINE COOLING SYSTEM - WATER RADIATOR - DC70 STD. S/N13041067 & DOWN ; LGP S/N 13045015 & DOWN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
905 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598487 | [1] | SHIELD | MAC |
| 2. | 76590749 | [13] | SCREW | MAC Superseded by part number: 86508568 |
| 5. | 76590875 | [2] | SEAL | MAC |
| 6. | 76590876 | [1] | PLUG | MAC Superseded by part number: 4999682 |
| 7. | 76605959 | [1] | RADIATOR | MAC- Forestery |
| 8. | 76595990 | [1] | CONVEYOR | MAC- SHROUD |
| 10. | 76590715 | [2] | NUT | MAC- SELF-LOCKING |
| 11. | 76595991 | [2] | LINK | MAC |
| 12. | 76592883 | [2] | SCREW | MAC Superseded by part number: 73161469 |
| 14. | 76593247 | [2] | SCREW | MAC Superseded by part number: 300512 |
| 15. | 76590745 | [4] | WASHER | MAC Superseded by part number: 8206393 |
| 16. | 76590744 | [2] | NUT | MAC- SELF-LOCKING Superseded by part number: 12577521 |
| 17. | 76592885 | [2] | SUPPORT | MAC |
| 18. | 76592886 | [4] | BLOCK | MAC |
| 19. | 76590719 | [2] | SCREW | MAC Superseded by part number: 9706704 |
| 20. | 76590713 | [2] | WASHER | MAC Superseded by part number: 14496621 |
| 21. | 76598240 | [13] | LOCK WASHER | MAC |
| 22. | 76592815 | [2] | BLOCK | MAC |
| 23. | 76592887 | [2] | COTTER PIN | MAC- COTTER PIN Superseded by part number: |
| 24. | 76590728 | [2] | WASHER | MAC Superseded by part number: 895-11012 |
| 25. | 76592888 | [2] | PIN | MAC |
| 27. | 76598241 | [2] | SCREW | MAC |
| 28. | 76592890 | [2] | WASHER | MAC |
| 29. | 76592891 | [2] | WASHER | MAC |
| 30. | 76598489 | [1] | SHIELD | MAC |
