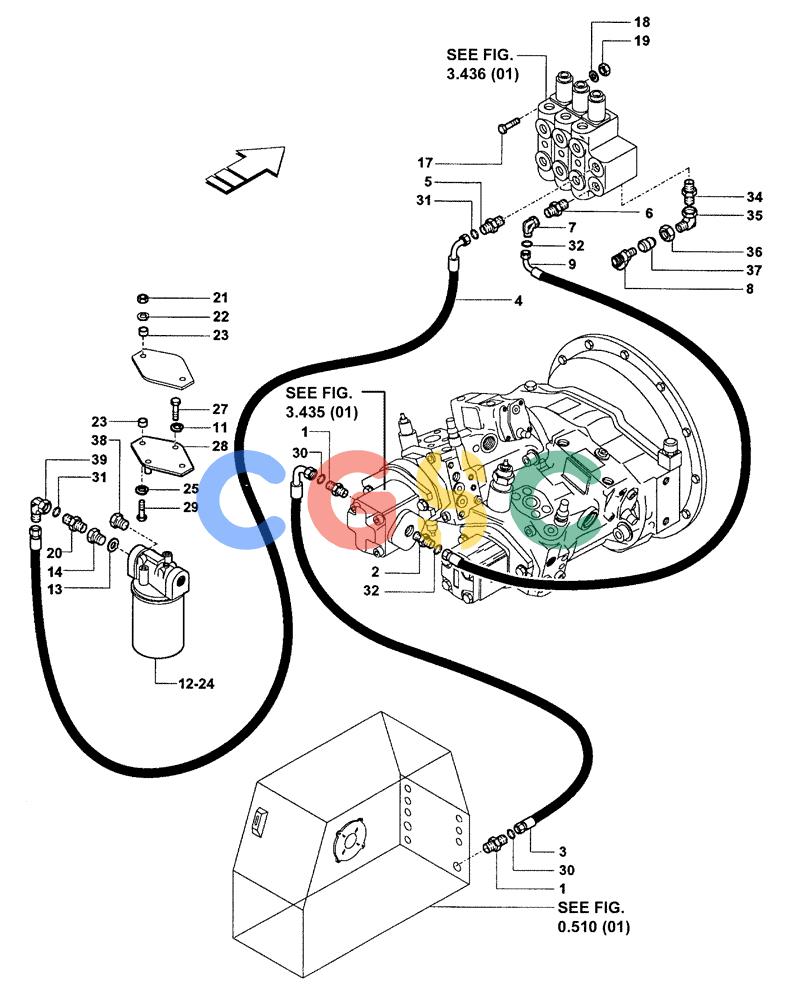

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.434[02A]) - HYDRAULIC SYSTEM PIPING DC70 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
544 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591049 | [2] | HYD CONNECTOR | MAC |
| 2. | 76590990 | [1] | HYD CONNECTOR | MAC |
| 3. | 76591152 | [1] | HOSE | MAC |
| 4. | 76598590 | [1] | FLEXIBLE HOSE | MAC |
| 5. | 76590992 | [1] | HYD CONNECTOR | MAC |
| 7. | 76591041 | [1] | HYD CONNECTOR | MAC |
| 8. | 76591157 | [1] | SENSOR | TOR |
| 9. | 76591158 | [1] | HOSE | MAC |
| 11. | 76590713 | [3] | WASHER | MAC Superseded by part number: 14496621 |
| 12. | 76596013 | [1] | FILTER | MACASSY. - INCLUDES FILTER ELEMENT (REF. 24) |
| 13. | 76591162 | [1] | GASKET | MAC Superseded by part number: 10265460 |
| 14. | 76591062 | [1] | HYD CONNECTOR | MAC |
| 15. | 76593099 | [1] | HYD CONNECTOR | MAC |
| 17. | 76590949 | [3] | SCREW | MAC Superseded by part number: 120112 |
| 18. | 76590716 | [3] | WASHER | MAC |
| 19. | 76590715 | [3] | NUT | MAC |
| 21. | 76590848 | [2] | NUT | MAC Superseded by part number: 15503611 |
| 22. | 76590895 | [2] | WASHER | MAC Superseded by part number: 86639313 |
| 23. | 76592906 | [4] | PAD | MAC |
| 24. | 76596012 | [1] | HYDRAULIC OIL FILTER | MACELEMENT - ALSO PART OF FILTER ASSY. (REF. 12) |
| 25. | 76590847 | [2] | WASHER | MAC Superseded by part number: 10519624 |
| 27. | 76590736 | [3] | SCREW | TOR Superseded by part number: 43138 |
| 28. | 76596078 | [1] | BRACKET | MAC |
| 29. | 76593101 | [2] | SCREW | MAC |
| 30. | 76596049 | [2] | SEAL | MAC- O'RING |
| 31. | 76596051 | [2] | SEAL | MAC- O'RING |
| 32. | 76596046 | [2] | SEAL | MAC- O'RING |
| 34. | 76591023 | [1] | HYD CONNECTOR | MAC |
| 35. | 76591042 | [1] | HYD CONNECTOR | MAC |
| 36. | 76605324 | [1] | NUT | MAC |
| 37. | 76605325 | [1] | RING | MAC |
| 38. | 76605840 | [1] | PLUG | MAC |
| 39. | 76598439 | [1] | HYD CONNECTOR | MAC |
