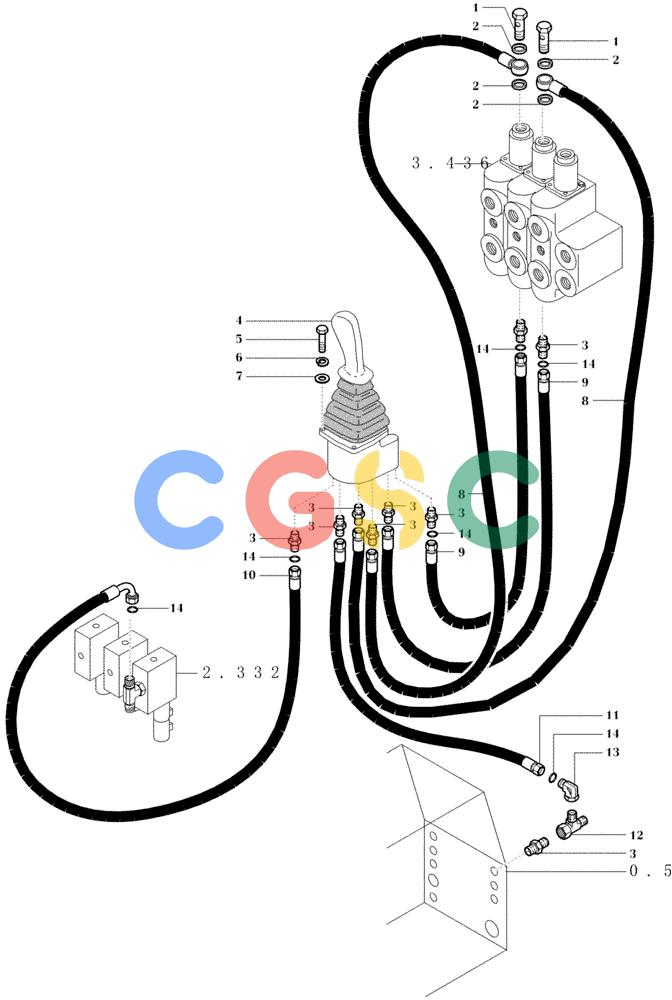

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.437[01]) - CONTROL VALVE LINKAGE DC70 STD. S/N13041171 & DOWN; LGP S/N 13045047 & DOWN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76591049 | [2] | HYD CONNECTOR | MACFITTING |
| 2. | 76591034 | [4] | GASKET | MACWASHER-GASKET |
| 3. | 76591032 | [9] | HYD CONNECTOR | MACFITTING |
| 4. | 76593120 | [1] | HANDLE | MACMANIPULATOR ASSY. - SEE FIG. 3.437 (02) Superseded by part number: 76615878 |
| 5. | 76591088 | [4] | SCREW | MAC |
| 6. | 76590750 | [4] | LOCK WASHER | MAC Superseded by part number: 86517328 |
| 7. | 76590873 | [4] | WASHER | MAC Superseded by part number: 10519404 |
| 8. | 76593066 | [2] | HOSE | MAC |
| 9. | 76591092 | [2] | FLEXIBLE HOSE | MAC |
| 10. | 76591036 | [1] | HOSE | MACHOSE |
| 11. | 76591094 | [1] | HOSE | MAC |
| 12. | 76591028 | [1] | HYD CONNECTOR | MACFITTING |
| 13. | 76591029 | [1] | HYD CONNECTOR | MACFITTING |
| 14. | 76596047 | [10] | SEAL | MACO-RING |
