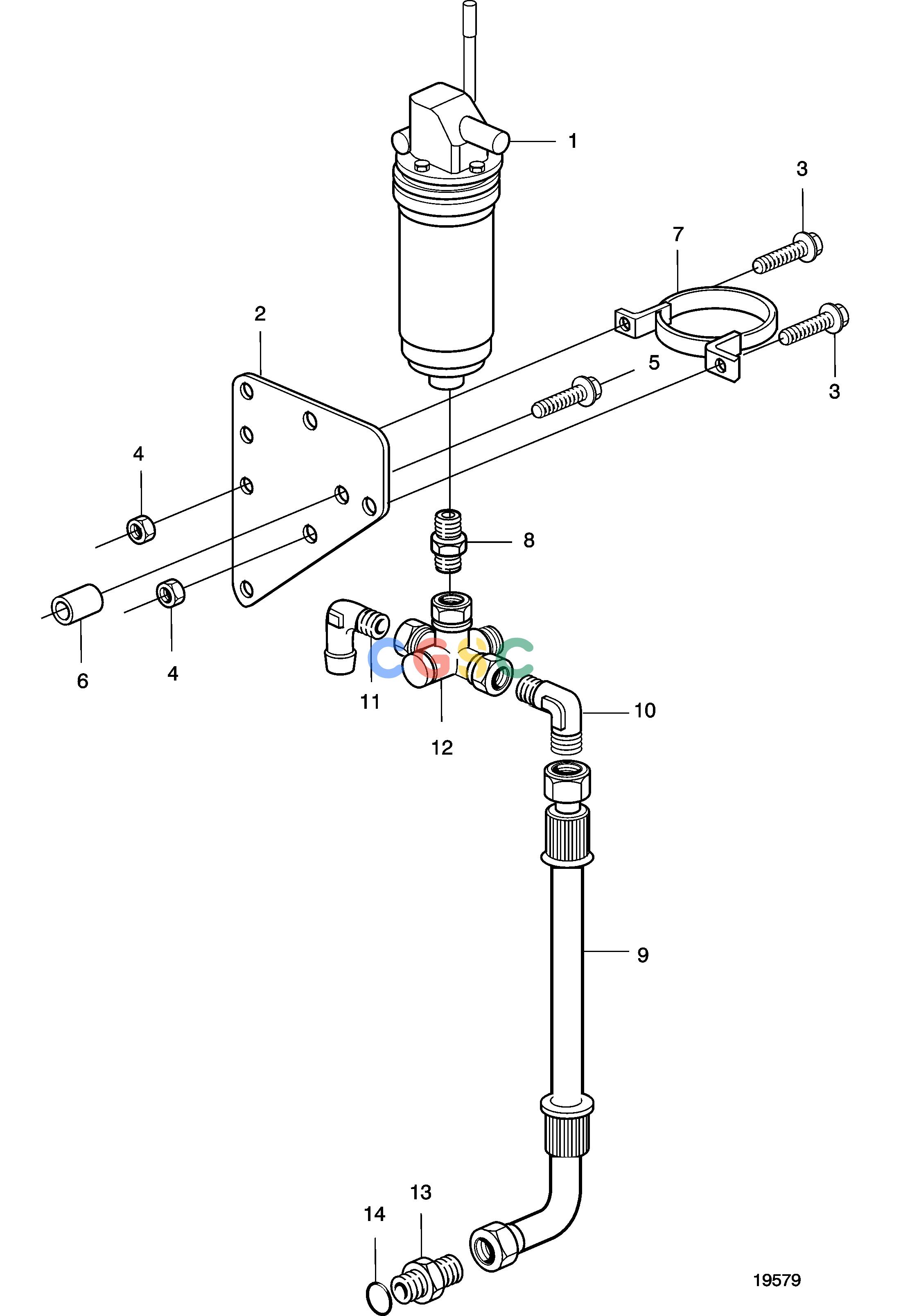

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TALubricating SystemOil Drain Pump, Enginemounted (0-10°)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827475
|
[1] |
Oil drain pump
|
|
| 2. |
3838605
|
[1] |
Bracket
|
|
| 3. |
984735
|
[4] |
Flange screw
|
L=25mm
|
| 4. |
990940
|
[4] |
Flange nut
|
|
| 5. |
20450802
|
[3] |
Flange screw
|
|
| 6. |
888723
|
[3] |
Spacer sleeve
|
|
| 7. |
3838616
|
[1] |
Attaching clamp
|
|
| 8. |
16452
|
[1] |
Double nipple
|
|
| 9. |
888725
|
[1] |
Hose
|
|
| 10. |
942590
|
[1] |
Elbow nipple
|
|
| 11. |
957111
|
[1] |
Elbow nipple
|
|
| 12. |
866572
|
[1] |
Faucet
|
|
| 13. |
20542739
|
[1] |
Nipple
|
|
| 14. |
11998
|
[1] |
Gasket
|
|
