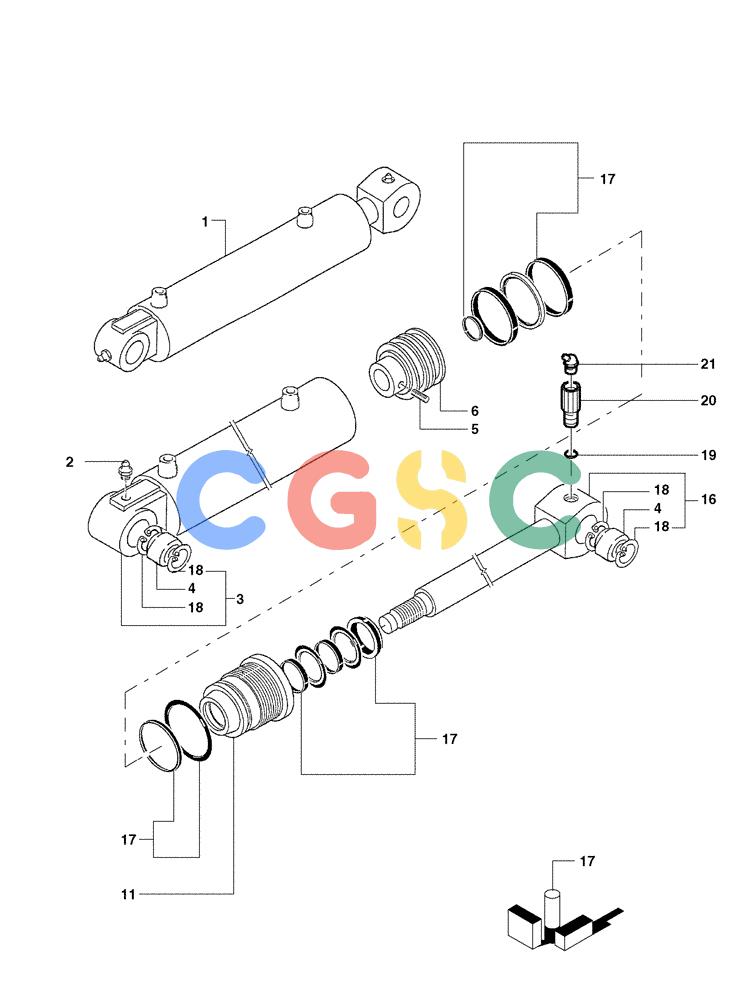

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (3.444[02]) - HYDRAULIC TILT CYLINDER DC70 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
604 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76598713 | [1] | CYLINDER | MACASSY- TILT |
| 2. | 76591112 | [2] | LUBE NIPPLE | MAC |
| 3. | 76598714 | [1] | CYLINDER | MACTUBE |
| 4. | ARTICULATIO | [2] | ARTICULATION | NHSPHERICAL BUSHING Superseded by part number: 76592911 |
| 5. | 76591222 | [1] | SCREW | MAC |
| 6. | 76598709 | [1] | PISTON | MAC |
| 11. | 76598715 | [1] | BUSHING | MACHEAD |
| 16. | 76598716 | [1] | ROD | MAC |
| 17. | 76598712 | [1] | KIT | MAC- SEAL |
| 18. | 76591125 | [4] | LOCKING RING | MAC Superseded by part number: 11061376 |
| 19. | 76605326 | [1] | SEALING WASHER | MAC |
| 20. | 76605327 | [1] | HYD CONNECTOR | MAC |
| 21. | 76598253 | [1] | LUBE NIPPLE | MAC Superseded by part number: 13408411 |
