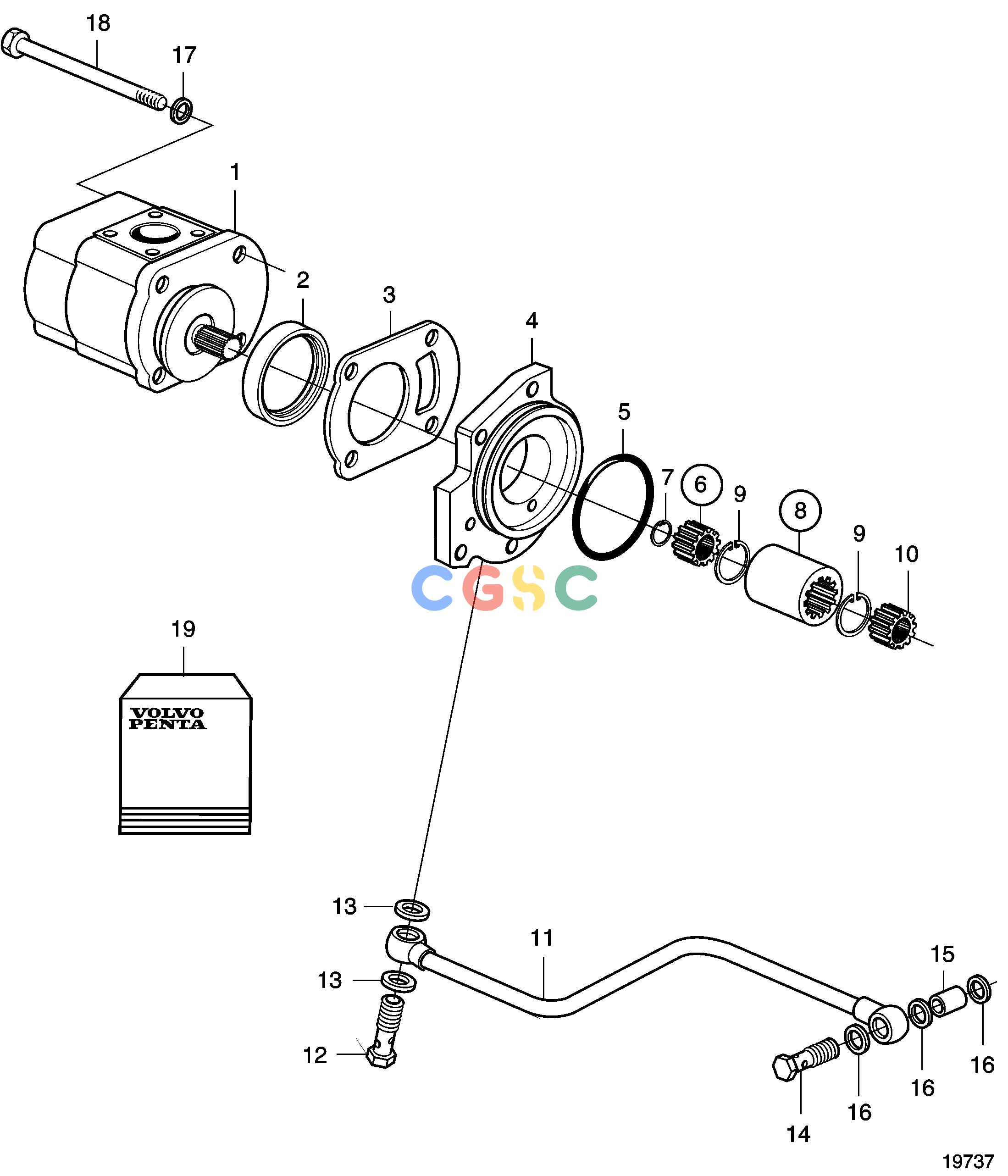

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TAMiscellaneous EquipmentHydraulic Pump, 16cm³, ''PTO C'', at Seawater SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3586612
|
[1] |
Hydraulic pump
|
|
| 2. |
20460515
|
[1] |
Camshaft seal
|
|
| 3. |
20460516
|
[1] |
Gasket
|
|
| 4. |
3586614
|
[1] |
Adapter
|
|
| 5. |
20405652
|
[1] |
O-ring
|
|
| 6. |
3586617
|
[1] |
Clutch flange
|
|
| 7. |
20464560
|
[1] |
Clip
|
|
| 8. |
20544297
|
[1] |
Sleeve
|
(3586616)
|
| 9. |
20544298
|
[2] |
E-circlip
|
|
| 10. |
3586618
|
[1] |
Nut
|
|
| 11. |
3586615
|
[1] |
Lubricating pipe
|
|
| 12. |
980973
|
[1] |
Hollow screw
|
|
| 13. |
947281
|
[2] |
Gasket
|
|
| 14. |
20450664
|
[1] |
Hollow screw
|
|
| 15. |
993813
|
[1] |
Spacer sleeve
|
|
| 16. |
969011
|
[3] |
Gasket
|
|
| 17. |
3586613
|
[4] |
Washer
|
|
| 18. |
3586609
|
[4] |
Hexagon screw
|
L=110mm
|
| 19. |
20460514
|
[1] |
Gasket kit
|
|
