沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TATransmissionsReverse Gear ZF 220EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
750 次

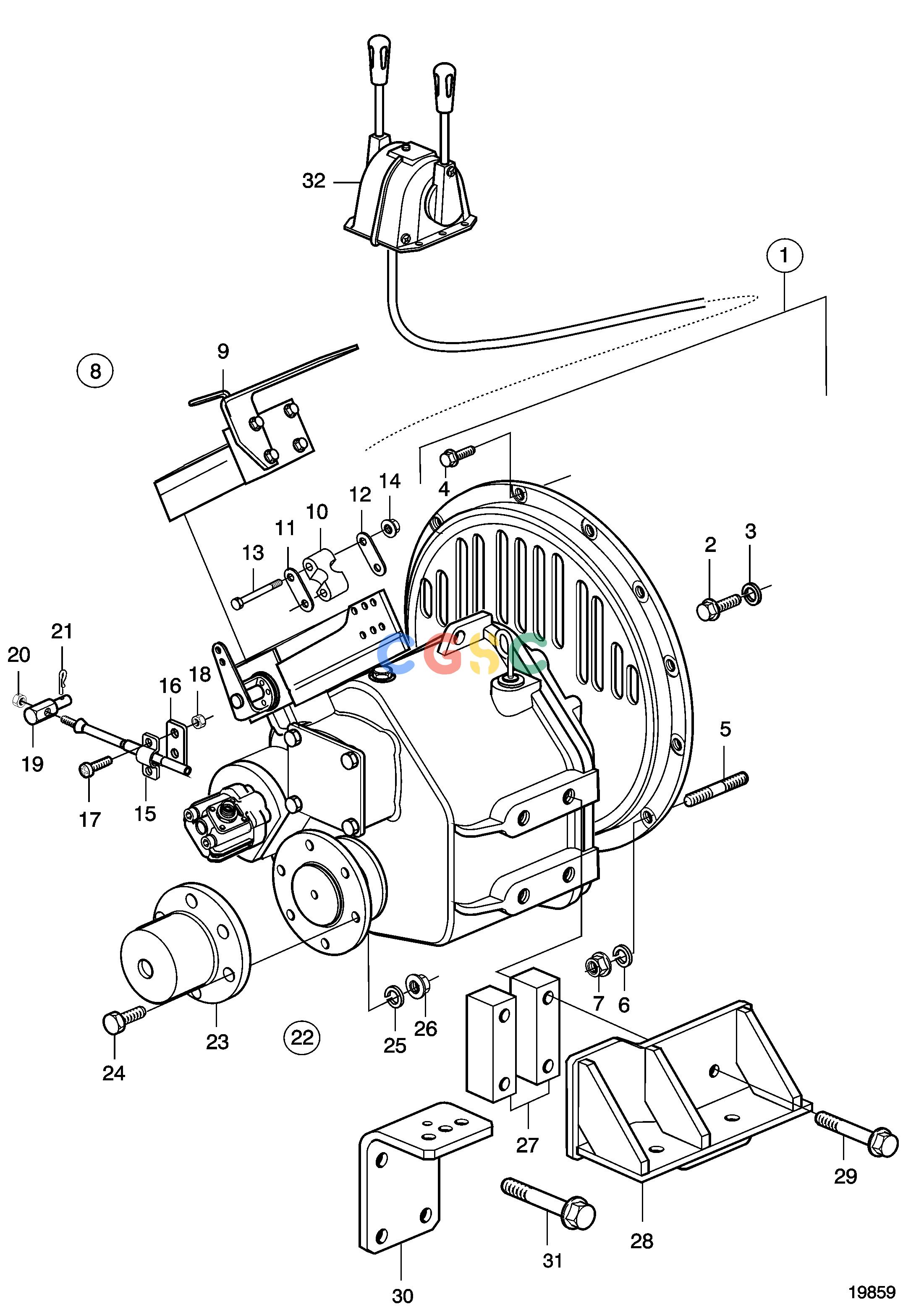

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
984753
|
[8] |
Flange screw
|
L=25mm
|
| 3. |
942336
|
[8] |
Spring washer
|
|
| 4. |
970948
|
[8] |
Hexagon screw
|
|
| 5. |
953067
|
[4] |
Stud
|
|
| 6. |
|
|
|
|
| 7. |
990941
|
[4] |
Flange nut
|
|
| 8. |
|
|
|
|
| 9. |
3838425
|
[1] |
Slip valve
|
|
| 10. |
872074
|
[1] |
Retainer
|
|
| 11. |
819068
|
[1] |
Washer
|
|
| 12. |
872076
|
[1] |
Washer
|
|
| 13. |
969439
|
[2] |
Six point socket scr
|
L=40mm
|
| 14. |
990977
|
[2] |
Lock nut
|
|
| 15. |
21471054
|
[1] |
Bracket
|
|
| 15. |
6853782
|
[1] |
Cable clamp
|
|
| 16. |
|
|
|
|
| 17. |
956079
|
[2] |
Cross recessed screw
|
|
| 18. |
990977
|
[2] |
Lock nut
|
|
| 19. |
853217
|
[1] |
Cube
|
|
| 20. |
|
|
|
|
| 21. |
907824
|
[1] |
Split pin
|
|
| 22. |
|
|
|
|
| 23. |
842106
|
[1] |
Companion flange
|
|
| 24. |
955739
|
[6] |
Hexagon screw
|
|
| 25. |
941912
|
[6] |
Spring washer
|
|
| 26. |
963119
|
[6] |
Lock nut
|
|
| 27. |
7745900_024
|
|
Spacer
|
|
| 28. |
7745900_024
|
|
Engine suspension
|
|
| 29. |
7745900_024
|
|
Flange screw
|
|
| 30. |
7745900_025
|
|
Engine suspension
|
|
| 31. |
7745900_025
|
|
Flange screw
|
|
| 32. |
853200
|
[1] |
Control
|
|
