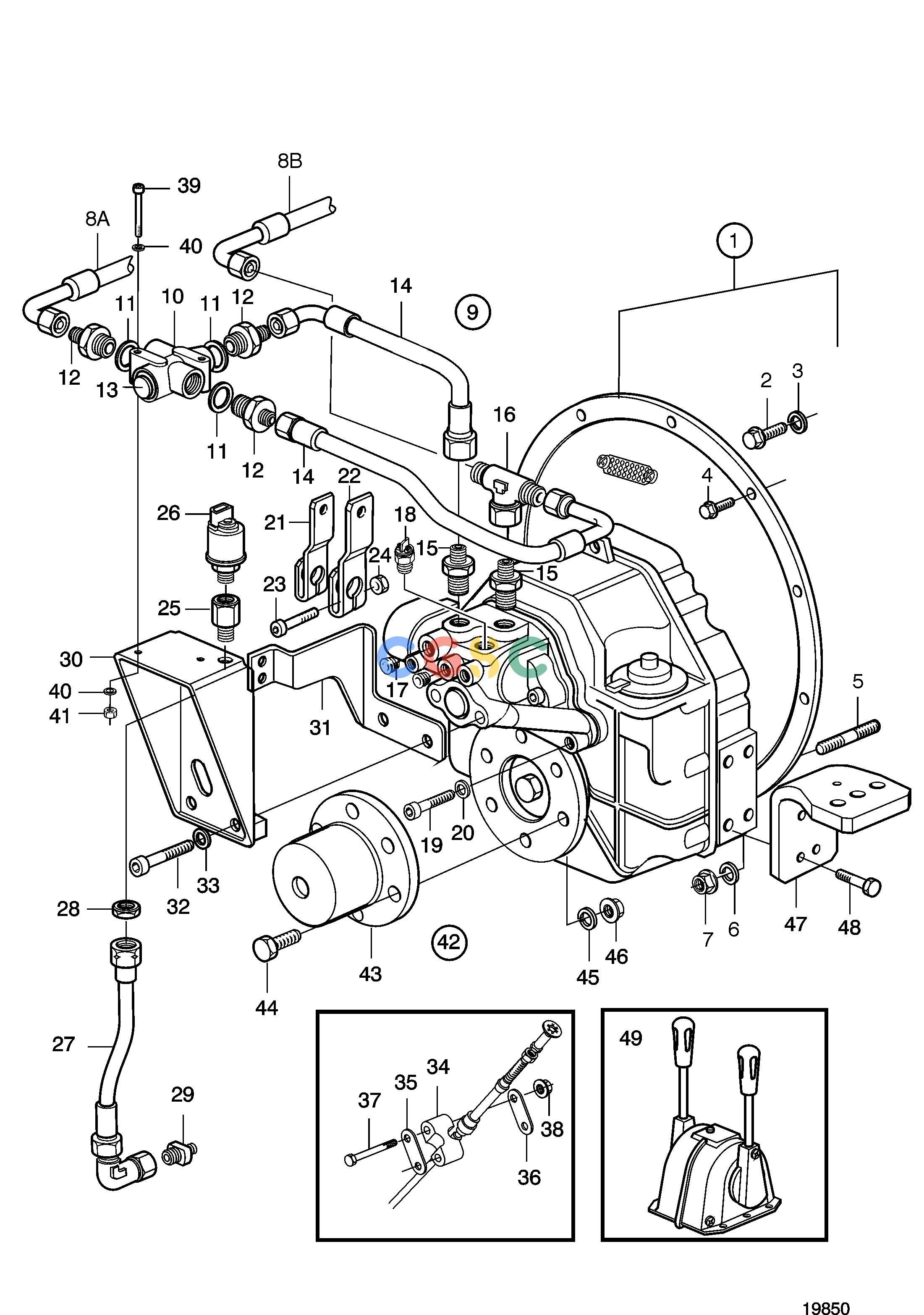

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TATransmissionsReverse Gear ZF 45-1EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
159 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
984753
|
[8] |
Flange screw
|
L=25mm
|
| 3. |
942336
|
[8] |
Spring washer
|
|
| 4. |
970948
|
[8] |
Hexagon screw
|
|
| 5. |
953067
|
[4] |
Stud
|
L=45mm
|
| 6. |
|
|
|
|
| 7. |
990941
|
[4] |
Flange nut
|
|
| 8A. |
3836192
|
[1] |
Hose
|
To oil cooler.
|
| 8B. |
3836192
|
[1] |
Hose
|
From oil cooler.
|
| 9. |
3839542
|
[1] |
Slip valve
|
|
| 10. |
3583503
|
[1] |
Thermostat housing
|
Range of adjustment: 55°C - 70°C
|
| 11. |
3583498
|
[3] |
Gasket
|
|
| 12. |
3583497
|
[3] |
Nipple
|
|
| 13. |
|
|
|
|
| 14. |
3583495
|
[2] |
Hose
|
|
| 15. |
3583499
|
[2] |
Fitting
|
|
| 16. |
|
|
|
|
| 17. |
|
|
|
|
| 18. |
873948
|
[1] |
Switch kit
|
|
| 19. |
941761
|
[8] |
Hex. socket screw
|
L=40mm
|
| 20. |
941907
|
[8] |
Spring washer
|
|
| 21. |
3586320
|
[1] |
Engagement lever
|
|
| 22. |
3582220
|
[1] |
Engagement lever
|
|
| 23. |
959220
|
[1] |
Hex. socket screw
|
|
| 24. |
955782
|
[1] |
Hexagon nut
|
|
| 25. |
|
|
|
|
| 26. |
866839
|
[1] |
Sensor
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
3587202
|
[1] |
Nipple
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
|
|
|
|
| 34. |
872074
|
[1] |
Retainer
|
|
| 35. |
819068
|
[1] |
Washer
|
|
| 36. |
872076
|
[1] |
Washer
|
|
| 37. |
969439
|
[2] |
Six point socket scr
|
L=40mm
|
| 38. |
990977
|
[2] |
Lock nut
|
|
| 39. |
959215
|
[2] |
Hex. socket screw
|
|
| 40. |
949607
|
[2] |
Spring washer
|
|
| 41. |
990978
|
[2] |
Lock nut
|
|
| 42. |
3838470
|
[1] |
Clutch flange
|
|
| 43. |
|
|
|
|
| 44. |
959667
|
[6] |
Hexagon screw
|
|
| 45. |
940280
|
[6] |
Spring washer
|
|
| 46. |
963119
|
[6] |
Lock nut
|
|
| 47. |
7745900_023
|
|
Engine suspension
|
|
| 48. |
7745900_023
|
|
Flange screw
|
|
| 49. |
853200
|
[1] |
Control
|
|
