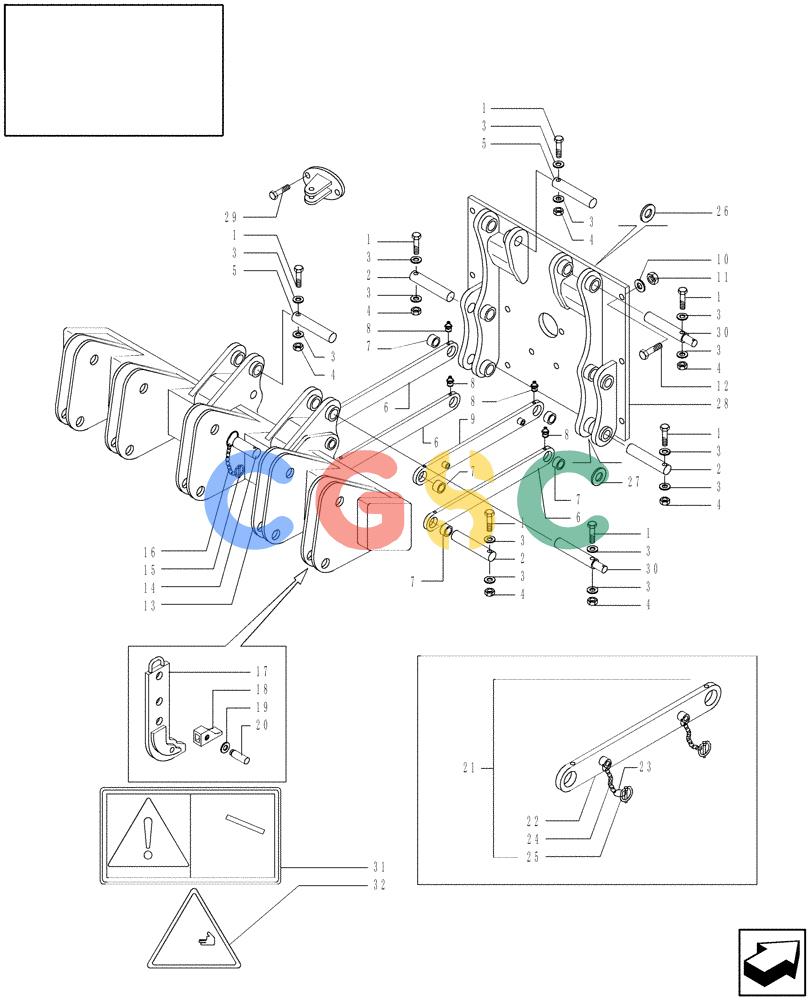

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (9.500[01A]) - RIPPER DC70 - DC80 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
958 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76595881 | [12] | SCREW | MAC Superseded by part number: 15971531 |
| 2. | 76595882 | [8] | PIN | MAC |
| 3. | 76590713 | [24] | WASHER | MAC Superseded by part number: 14496621 |
| 4. | 76590715 | [12] | NUT | MAC- SELF-LOCKING |
| 5. | 76595883 | [2] | PIN | TOR |
| 6. | 76595884 | [3] | LINK | MAC |
| 7. | 76595885 | [8] | BUSHING | MAC |
| 8. | 76591112 | [8] | LUBE NIPPLE | MAC |
| 9. | 76595886 | [1] | LINK | MAC |
| 10. | 76590732 | [12] | WASHER | MAC |
| 11. | 76609751 | [12] | NUT | MAC- SELF-LOCKING |
| 12. | 76595887 | [12] | SCREW | MAC Superseded by part number: 350616 |
| 13. | 76595888 | [1] | FRAME | MAC |
| 14. | 76595889 | [3] | PIN | MAC |
| 15. | 76595890 | [3] | CLIP | MAC |
| 16. | 76595891 | [1] | LINK CHAIN | MAC |
| 17. | 76595892 | [3] | SHANK | MAC |
| 18. | 77904537 | [3] | POINT | LEC |
| 19. | 77904539 | [3] | WASHER | LEC |
| 20. | 77904538 | [3] | PIN | LEC |
| 21. | 76595893 | [1] | LINK | MAC |
| 22. | 76595894 | [1] | LINK | MAC |
| 23. | 76593325 | [4] | LINK CHAIN | MAC |
| 24. | 76595900 | [2] | LINK CHAIN | MAC |
| 25. | 76595901 | [2] | CLIP | MAC |
| 26. | 76593039 | [4] | SPACER | MAC |
| 27. | 76595902 | [16] | SPACER | MAC |
| 28. | 76593903 | [1] | FRAME | TOR Superseded by part number: 76595903 |
| 29. | 76609752 | [2] | SCREW | MAC |
| 30. | 76605366 | [2] | PIN | MACPin |
| 31. | 76596017 | [3] | DECAL | MAC |
| 32. | 76596019 | [2] | DECAL | MAC |
