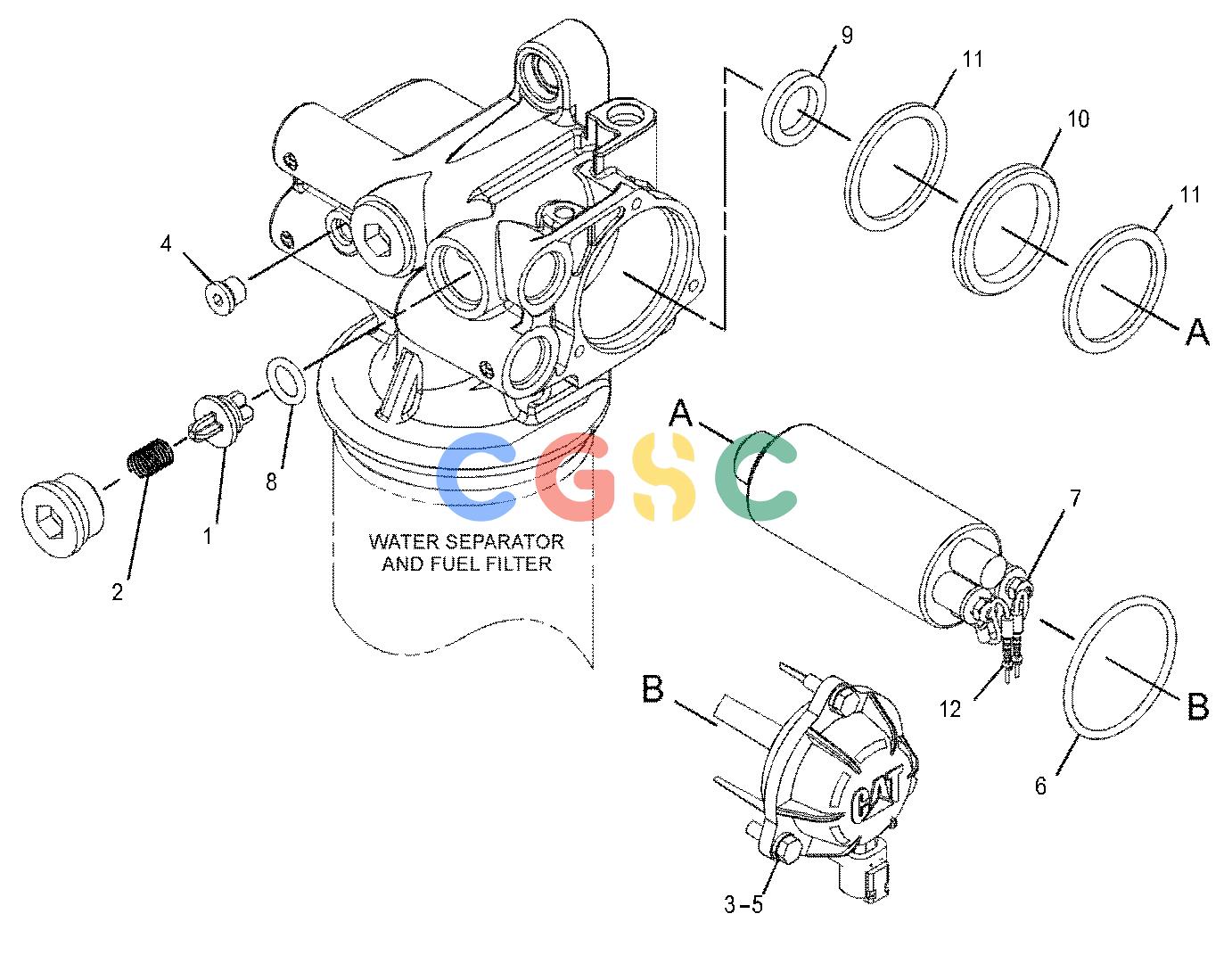

卡特零件查询（725C） 390-4679: PUMP GP-FUEL PRIMING
广数供应链运营团队, 15 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 436-8983 | [2] | VALVE-CHECK | |
| 2. | 162-2222 | [2] | SPRING | |
| 3. | 9X-8267 | [3] | WASHER(6.6X12X2-MM THK) | |
| 4. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 5. | 8T-4138M | [3] | BOLT(M6X1X20-MM) | |
| 6. | 447-7206 | [1] | SEAL-O-RING | |
| 7. | 6D-5801 | [2] | LOCKNUT(8-32-THD) | |
| 8. | 236-6717 | [2] | SEAL-O-RING | |
| 9. | 188-7541 | [1] | SEAL | |
| 10. | 188-7536 | [1] | SEAL | |
| 11. | 173-1016 | [2] | RING-BACKUP | |
| 12. | 179-7400 | [2] | SEAL | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | M | | METRIC PART |
