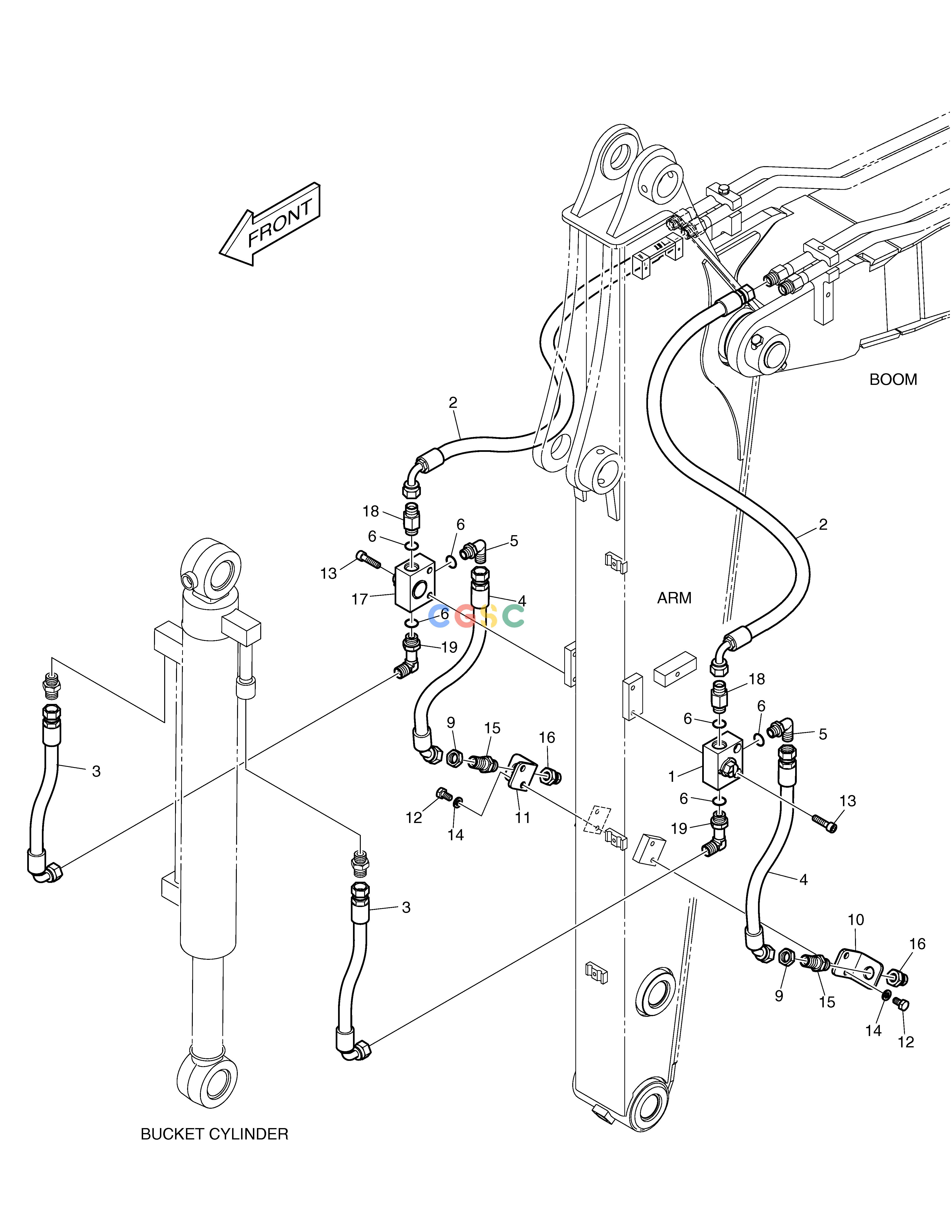

斗山零件查询ARM PIPING - CLAMSHELL(ARM 1.6m) DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1028639C
|
[-] |
ARM PIPING;CLAMSHELL
|
|
| 1. |
421-00022
|
[1] |
VALVE;SWITCH
|
|
| 10. |
K1027949
|
[1] |
BRACKET
|
|
| 11. |
K1027950
|
[1] |
BRACKET
|
|
| 12. |
S0511866
|
[4] |
BOLT
|
|
| 13. |
S2212466
|
[4] |
BOLT
|
|
| 14. |
S5102603
|
[4] |
. WASHER
|
|
| 15. |
DS2410002
|
[2] |
ADAPTER
|
|
| 16. |
2181-2820D3
|
[2] |
PLUG
|
|
| 17. |
421-00022
|
[1] |
VALVE;SWITCH
|
|
| 18. |
2181-1126D33
|
[2] |
ADAPTER
|
|
| 19. |
2181-1702D34
|
[2] |
ELBOW
|
|
| 2. |
DS2093631
|
[2] |
HOSE
|
|
| 2. |
DS2058448
|
[2] |
|
|
| 3. |
DS20551093
|
[2] |
HOSE
|
|
| 4. |
DS2054398
|
[2] |
HOSE
|
|
| 5. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 6. |
S8000181
|
[6] |
O-RING
|
|
| 9. |
121-00010D3
|
[2] |
. NUT
|
|
