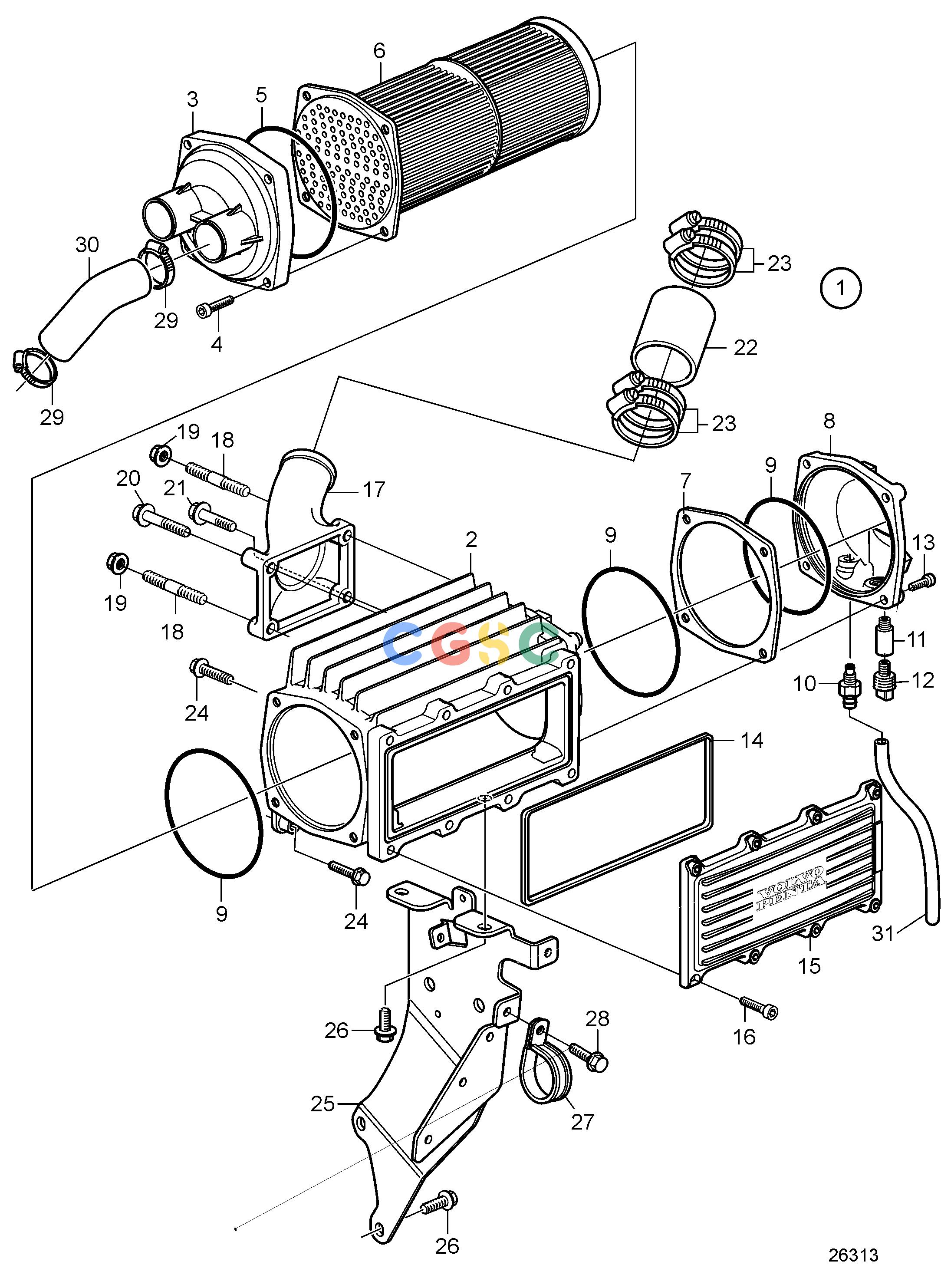

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Cooling SystemCharge Air CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889391
|
[1] |
Charge air cooler
|
|
| 2. |
21692360
|
[1] |
Housing
|
|
| 3. |
3889405
|
[1] |
Kit
|
|
| 4. |
3838337
|
[4] |
Screw
|
|
| 5. |
3838406
|
[1] |
O-ring
|
(3583632)
|
| 6. |
3583638
|
[1] |
Tube
|
|
| 7. |
3838407
|
[1] |
Spacer
|
(3583630)
|
| 8. |
3583629
|
[1] |
Cover
|
|
| 9. |
3838406
|
[4] |
O-ring
|
|
| 10. |
3583822
|
[1] |
Draining nipple
|
|
| 11. |
838929
|
[1] |
Anode
|
|
| 12. |
838928
|
[1] |
Plug
|
|
| 13. |
3838337
|
[3] |
Screw
|
|
| 14. |
3583634
|
[1] |
Gasket
|
|
| 15. |
3583633
|
[1] |
Cover
|
|
| 16. |
3583635
|
[8] |
Screw
|
|
| 17. |
3582786
|
[1] |
Connecting pipe
|
|
| 18. |
953049
|
[2] |
Stud
|
|
| 19. |
945408
|
[2] |
Flange nut
|
|
| 20. |
965216
|
[1] |
Flange screw
|
|
| 21. |
947760
|
[1] |
Flange screw
|
|
| 22. |
865747
|
[1] |
Hose
|
|
| 23. |
994565
|
[2] |
Hose clamp
|
|
| 24. |
973924
|
[4] |
Flange screw
|
|
| 25. |
3848536
|
[1] |
Bracket
|
(3812944)
|
| 26. |
946173
|
[5] |
Flange screw
|
|
| 27. |
984474
|
[2] |
Clamp
|
|
| 28. |
946440
|
[2] |
Flange screw
|
|
| 29. |
943478
|
[2] |
Hose clamp
|
|
| 30. |
3583016
|
[1] |
Hose
|
|
| 31. |
942754
|
[1] |
Hose
|
|
