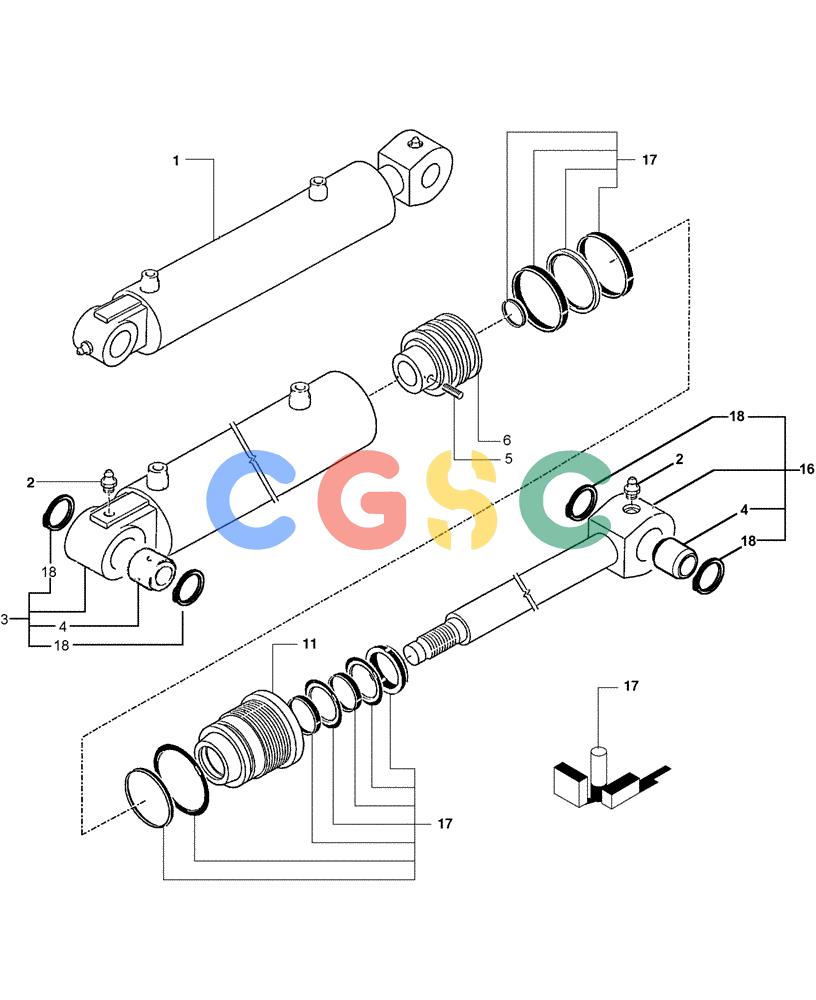

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (9.500[04A]) - RIPPER CYLINDERN DC70 - DC80 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76596083 | [1] | CYLINDER | MACASSY., RIPPER |
| 2. | 76591112 | [2] | LUBE NIPPLE | MACNIPPLE, LUBE |
| 3. | 76596084 | [1] | CYLINDER | MACHOUSING, CYLINDER |
| 4. | 76591124 | [2] | ARTICULATION | MACBUSHING Superseded by part number: 79037239 |
| 5. | 76591222 | [1] | SCREW | MAC |
| 6. | 76591223 | [1] | PISTON | MAC |
| 11. | 76591228 | [1] | BASE PLATE | MACGLAND |
| 16. | 76596085 | [1] | CYLINDER | MACROD, CYLINDER |
| 17. | 76591234 | [1] | SEAL KIT | MACKIT, SEALS Superseded by part number: V282183, U282182, 8210196, 8207696, 8207016, 8204583, 8204581, 1422270 |
| 18. | 76591125 | [4] | LOCKING RING | MACRING, LOCKING Superseded by part number: 11061376 |
