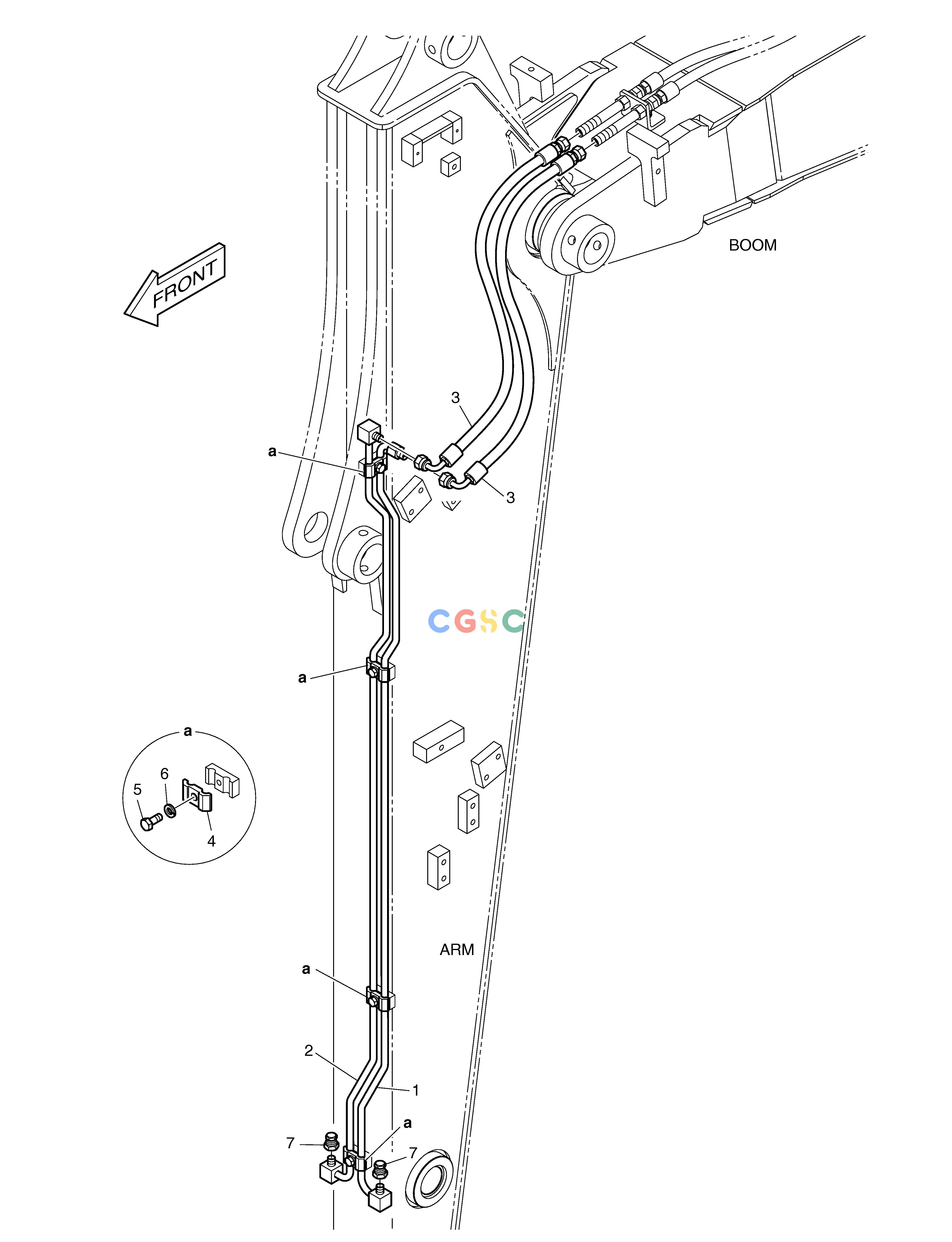

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1028701C | [-] | QUICK CLAMP PIPING | |
| -. | 420212-11477 | [-] | ||
| 1. | K1029112B | [1] | PIPE | 420207-02761 |
| 1. | 420207-02761 | [1] | ||
| 2. | K1029113A | [1] | PIPE | 420207-02762 |
| 2. | 420207-02762 | [1] | ||
| 3. | DS2055995 | [2] | HOSE | |
| 3. | DS20551379 | [2] | ||
| 4. | K1004011 | [4] | CLAMP | |
| 5. | S0508866 | [4] | BOLT | |
| 6. | S5102503 | [4] | . WASHER | |
| 7. | 2181-2820D1 | [2] | PLUG |
