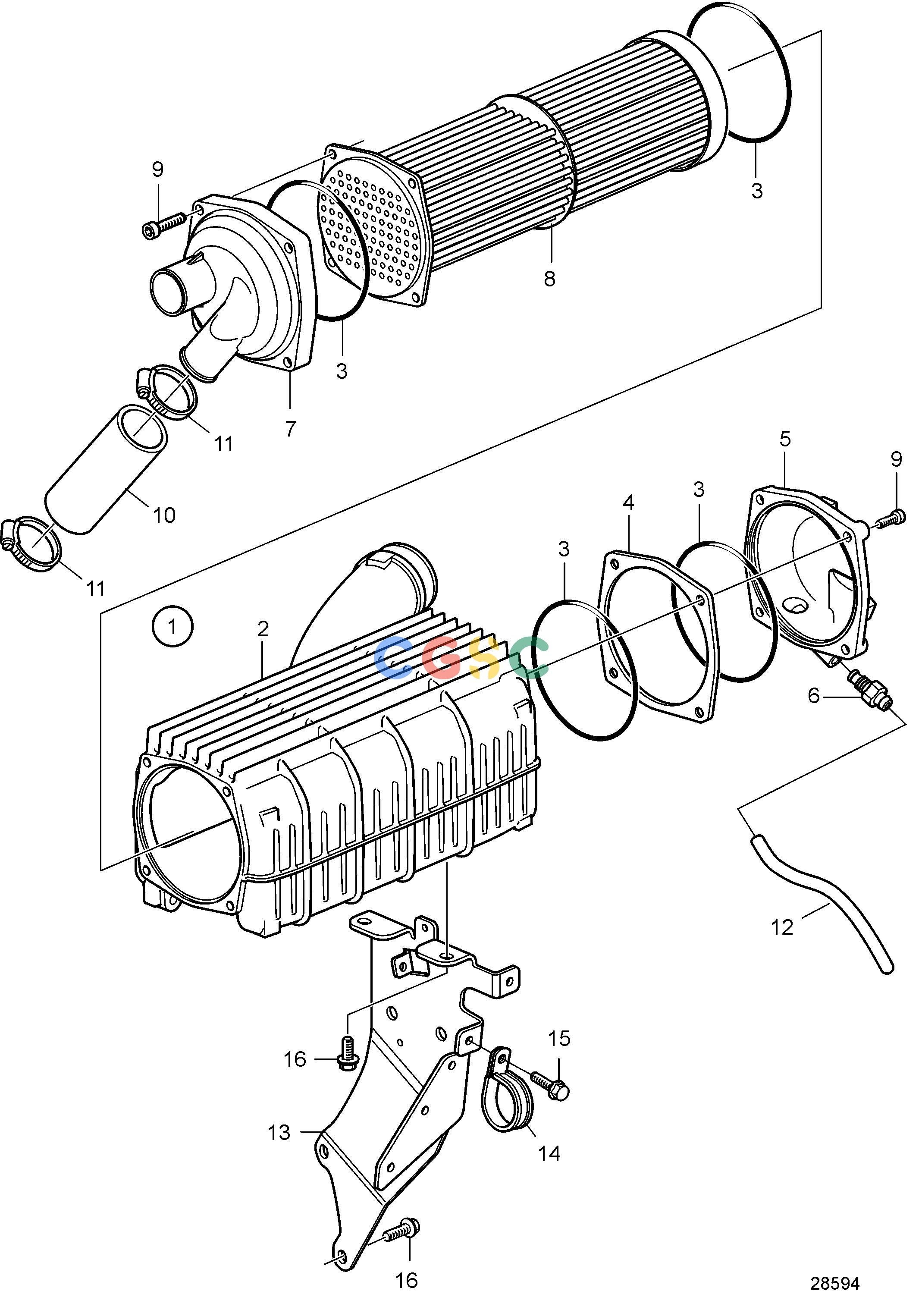

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Cooling SystemCharge Air Cooler SNA501446-EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21951171
|
[1] |
Charge air cooler
|
|
| 2. |
3819771
|
[1] |
Housing
|
|
| 3. |
3838406
|
[4] |
O-ring
|
|
| 4. |
21787130
|
[1] |
Spacer
|
|
| 5. |
21687551
|
[1] |
Cover
|
|
| 6. |
3583822
|
[1] |
Draining nipple
|
|
| 7. |
22092538
|
[1] |
Cap
|
|
| 8. |
3819770
|
[1] |
Tube
|
|
| 9. |
21787133
|
[8] |
Screw
|
|
| 10. |
943370
|
[1] |
Rubber hose
|
|
| 11. |
943478
|
[2] |
Hose clamp
|
|
| 12. |
942754
|
[1] |
Hose
|
|
| 13. |
3848536
|
[1] |
Bracket
|
(3812944)
|
| 14. |
984474
|
[2] |
Clamp
|
|
| 15. |
946440
|
[2] |
Flange screw
|
|
| 16. |
946173
|
[5] |
Flange screw
|
|
