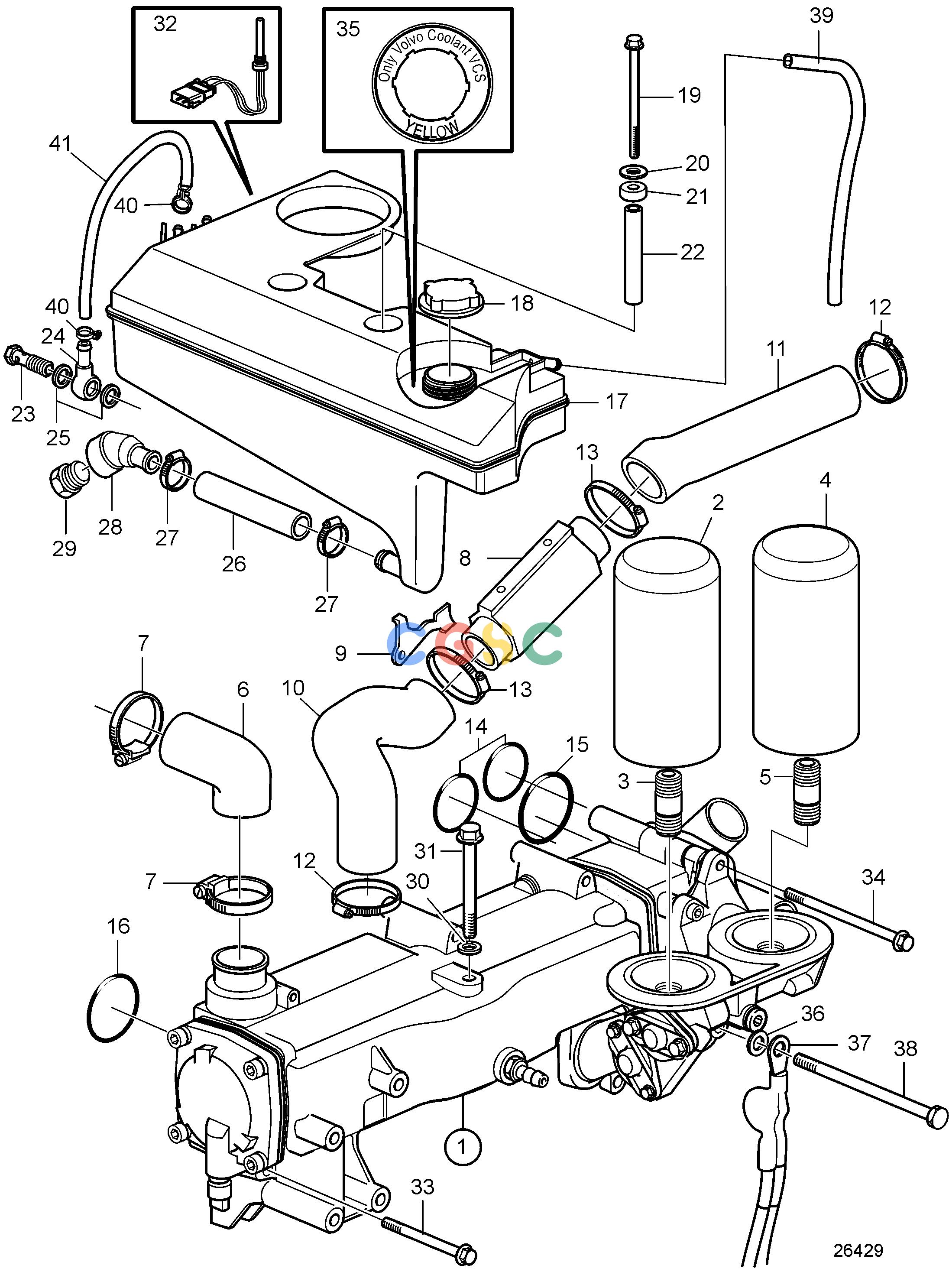

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Cooling SystemHeat Exchanger and Expansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
887 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
40005715
|
[1] |
Heat exchanger
|
Kit 3818868 ineeded., Replaced by 22369740
|
| 1. |
22369740
|
[1] |
Heat exchanger
|
Replaced
|
| 1. |
22866513
|
[1] |
Heat exchanger
|
SN-A407905
|
| 1. |
22437234
|
[1] |
Heat exchanger
|
SNA407906-
|
| 2. |
21632901
|
[1] |
Oil filter
|
By pass
|
| 3. |
423067
|
[1] |
Nipple
|
|
| 4. |
3582732
|
[1] |
Oil filter
|
Full flow.
|
| 5. |
3583695
|
[1] |
Nipple
|
|
| 6. |
3808093
|
[1] |
Hose
|
(3582929)
|
| 7. |
961672
|
[2] |
Hose clamp
|
|
| 8. |
3583818
|
[1] |
Fuel cooler
|
|
| 9. |
3583819
|
[1] |
Bracket
|
|
| 10. |
3583009
|
[1] |
Hose
|
|
| 11. |
3583015
|
[1] |
Hose
|
|
| 12. |
943478
|
[2] |
Hose clamp
|
|
| 13. |
943479
|
[2] |
Hose clamp
|
|
| 14. |
949722
|
[2] |
O-ring
|
|
| 15. |
976041
|
[1] |
O-ring
|
|
| 16. |
969415
|
[1] |
O-ring
|
|
| 17. |
3887582
|
[1] |
Expansion tank
|
(3584072)
|
| 18. |
1674083
|
[1] |
Pressure cap
|
|
| 19. |
965184
|
[2] |
Flange screw
|
L=100mm
|
| 20. |
976944
|
[2] |
Washer
|
|
| 21. |
3285120
|
[2] |
Spacer sleeve
|
|
| 22. |
3583863
|
[2] |
Spacer sleeve
|
|
| 23. |
969299
|
[1] |
Hollow screw
|
|
| 24. |
858750
|
[1] |
Banjo nipple
|
|
| 25. |
11994
|
[2] |
Gasket
|
|
| 26. |
952969
|
[1] |
Hose
|
|
| 27. |
943472
|
[2] |
Hose clamp
|
|
| 28. |
3808586
|
[1] |
T-nipple
|
(3584237)
|
| 29. |
479956
|
[1] |
Plug
|
|
| 30. |
3583833
|
[1] |
Gasket
|
|
| 31. |
3583648
|
[1] |
Hex. socket screw
|
|
| 32. |
3547710
|
[1] |
Level guard
|
|
| 33. |
965184
|
[4] |
Flange screw
|
|
| 34. |
968893
|
[1] |
Flange screw
|
|
| 35. |
21506995
|
[1] |
Label
|
|
| 36. |
955894
|
[1] |
Washer
|
|
| 37. |
21923306
|
[1] |
Wiring harness kit
|
|
| 38. |
980103
|
[1] |
Hexagon screw
|
|
| 39. |
942754
|
[1] |
Hose
|
|
| 40. |
975270
|
[2] |
Hose clamp
|
|
| 41. |
942700
|
[1] |
Hose
|
|
