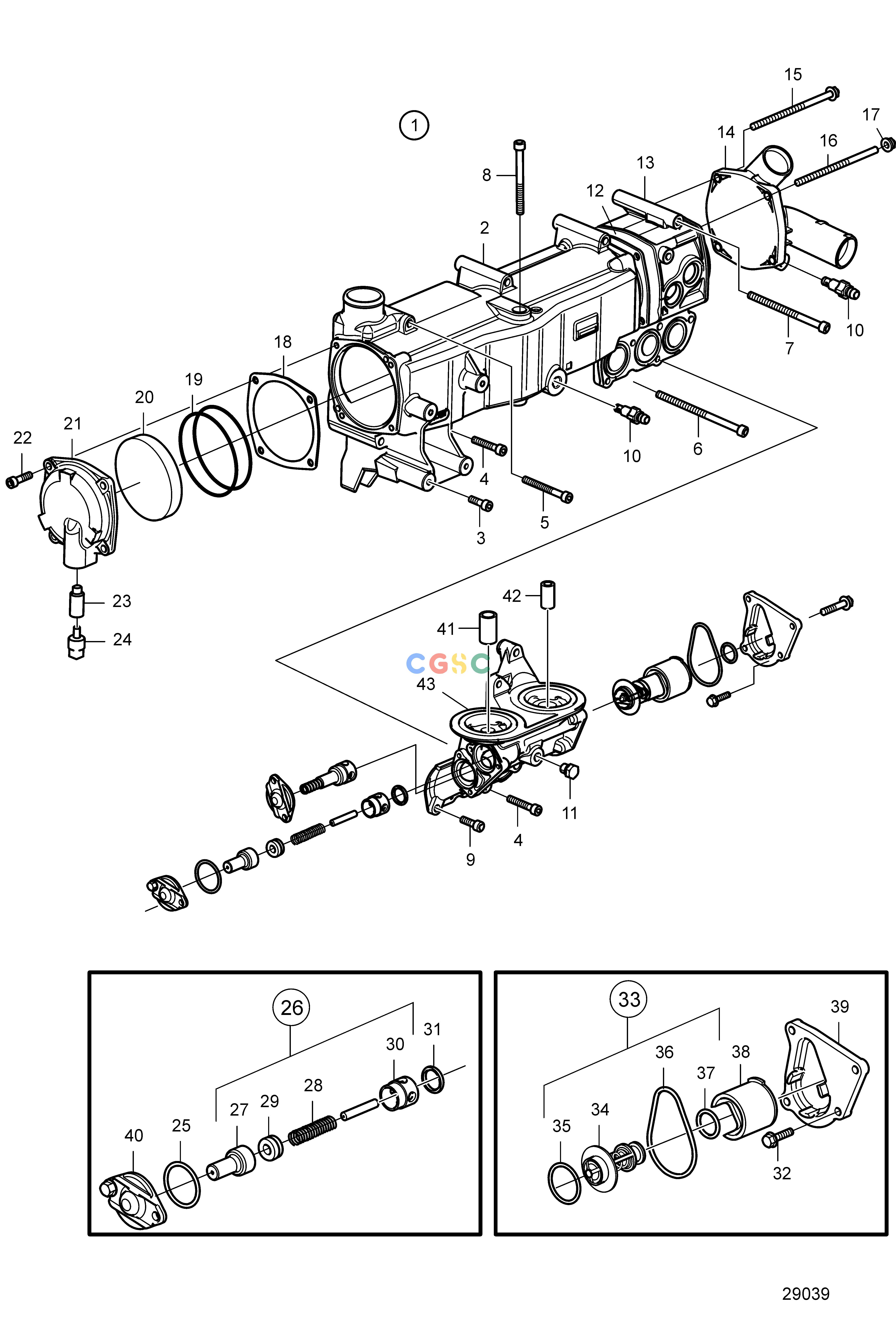

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Cooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
941 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22369740
|
[1] |
Heat exchanger
|
|
| 1. |
22866513
|
[1] |
Heat exchanger
|
SN-A407905
|
| 1. |
22437234
|
[1] |
Heat exchanger
|
SNA407906-
|
| 2. |
40005720
|
[1] |
Housing
|
|
| 2. |
40005785
|
[1] |
Housing
|
SN-A407905
|
| 2. |
|
|
|
SNA407906-
|
| 3. |
945444
|
[5] |
Flange screw
|
|
| 4. |
947760
|
[4] |
Flange screw
|
|
| 5. |
965184
|
[6] |
Flange screw
|
|
| 6. |
980103
|
[1] |
Hexagon screw
|
|
| 7. |
968893
|
[1] |
Flange screw
|
|
| 8. |
3583648
|
[1] |
Hex. socket screw
|
|
| 9. |
959222
|
[5] |
Hex. socket screw
|
|
| 10. |
3583822
|
[2] |
Draining nipple
|
|
| 11. |
960629
|
[1] |
Plug
|
|
| 12. |
3583642
|
[1] |
Spacer
|
|
| 13. |
|
|
|
|
| 14. |
22369744
|
[1] |
End cover
|
|
| 15. |
21122819
|
[2] |
Hex. socket screw
|
|
| 16. |
3583650
|
[2] |
Stud
|
|
| 17. |
945408
|
[2] |
Flange nut
|
|
| 18. |
3583646
|
[1] |
Spacer
|
SN-A407905
|
| 18. |
|
|
|
SNA407906-
|
| 19. |
3583647
|
[4] |
O-ring
|
|
| 20. |
40005719
|
[3] |
Tube
|
|
| 21. |
3583641
|
[1] |
End cover
|
SN-A407905
|
| 21. |
22441904
|
[1] |
End cover
|
SNA407906-
|
| 22. |
959223
|
[4] |
Hex. socket screw
|
|
| 23. |
838929
|
[1] |
Anode
|
SN-A407905
|
| 24. |
838928
|
[1] |
Plug
|
SN-A407905
|
| 25. |
949659
|
[2] |
O-ring
|
|
| 26. |
21068158
|
[2] |
Reduction valve
|
|
| 27. |
|
|
|
|
| 28. |
469332
|
[1] |
Spring
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
469846
|
[2] |
Sealing ring
|
|
| 32. |
947542
|
[8] |
Flange screw
|
|
| 33. |
3588437
|
[1] |
Kit
|
|
| 34. |
3583827
|
[1] |
Thermostat
|
|
| 35. |
3583830
|
[1] |
O-ring
|
|
| 36. |
3583831
|
[1] |
O-ring
|
|
| 37. |
3583832
|
[1] |
O-ring
|
|
| 38. |
3583829
|
[1] |
Retainer
|
|
| 39. |
3583828
|
[1] |
Cover
|
|
| 40. |
471648
|
[2] |
Cover
|
|
| 41. |
423067
|
[1] |
Nipple
|
|
| 42. |
3583695
|
[1] |
Nipple
|
|
| 43. |
3584419
|
[1] |
Housing
|
|
