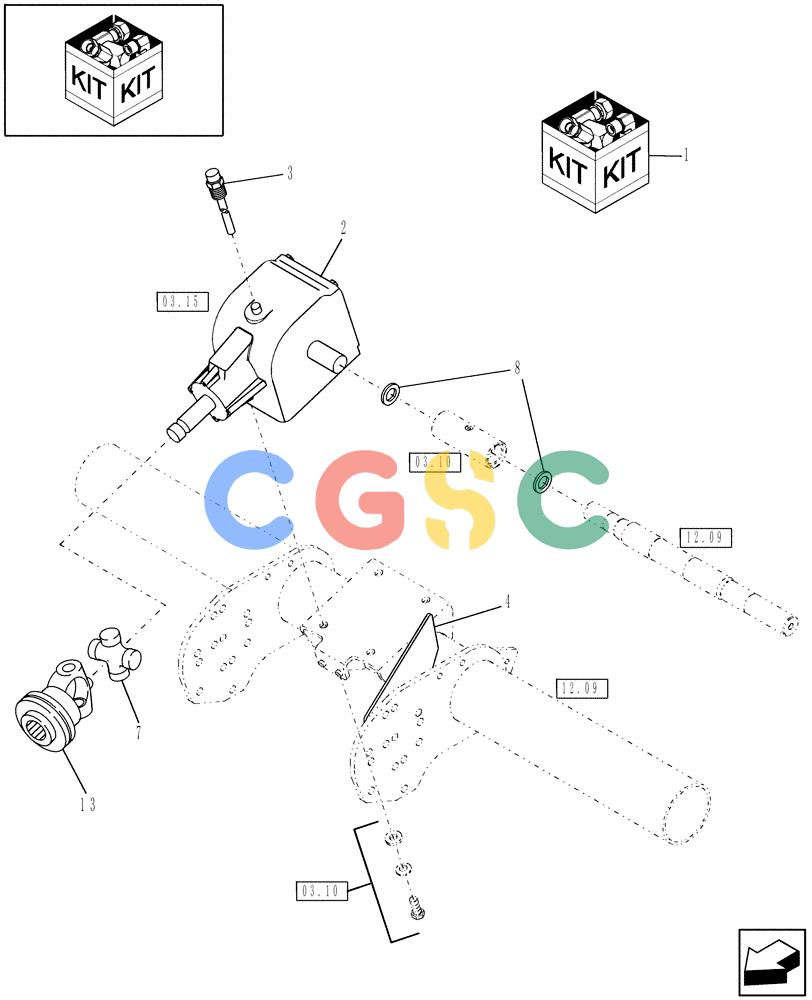

凯斯零件查询(RBX563) - CASE IH ROUND BALER (9/05-12/06) (18.91) - GEARBOX CONVERSION KIT, 1000 TO 540 RPM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
588 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86643864
|
[1] |
DIA KIT, HARVESTER
|
PA
Gearbox Conversion, 1000 RPM to 540 RPM, Includes: Installation Instructions Superseded by part number: 86625850, 86625841, 87349347, 86637820, 87391830, 86637370, 86626270, 87041061
|
| 1. |
87702276
|
[1] |
CONVERSION KIT
|
NH
Gearbox Conversion, 1000 RPM to 540 RPM, Includes: Installation Instructions
|
| 2. |
87025454
|
[1] |
GEARBOX
|
PA
540 RPM Superseded by part number: 87391830
|
| 2. |
87391830
|
[1] |
GEARBOX
|
PA
540 RPM
|
| 3. |
86626270
|
[1] |
DIPSTICK,129mm L
|
NH
|
| 4. |
86637820
|
[1] |
PLATE
|
PA
Fixture
|
| 7. |
86625850
|
[1] |
U-JOINT SPIDER
|
NH
|
| 7. |
87517787
|
[1] |
U-JOINT SPIDER
|
BEL
|
| 8. |
86637370
|
[1] |
SEAL,40mm ID x 52mm OD x 7mm Thk
|
NH
|
| 12. |
87041061
|
[1] |
WARNING DECAL
|
BEL
540 RPM, English
|
| 12. |
87042013
|
[1] |
DECAL
|
BEL
WARNING, 540 RPM, French
|
| 13. |
86625841
|
[1] |
YOKE
|
NH
1-3/8" - 6 Splines
|
| 13. |
87518490
|
[1] |
YOKE
|
BEL
1-3/8" - 6 Splines
|
