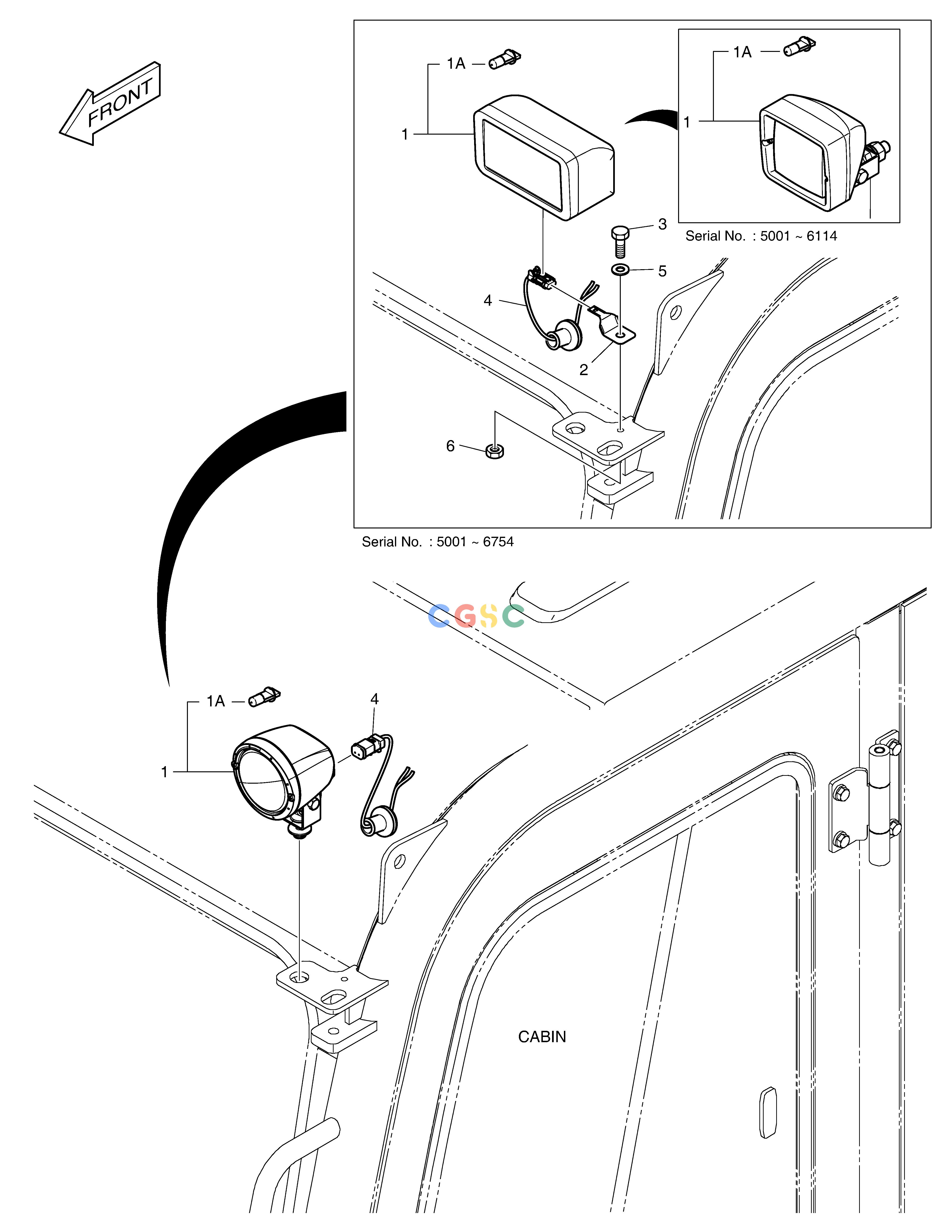

斗山零件查询CABIN LAMP DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1033639A
|
[-] |
CABIN WORK LAMP
|
|
| -. |
301005-00062
|
[-] |
|
|
| -. |
301005-00062A
|
[-] |
|
|
| -. |
301005-00062C
|
[-] |
|
|
| 1. |
K1025100
|
[1] |
LAMP;WORK
|
534-00029
|
| 1. |
534-00029
|
[1] |
LAMP;WORKING
|
|
| 1. |
301005-00181
|
[1] |
LAMP,WORK
|
|
| 1A. |
2515-1016D2
|
[1] |
BULB
|
|
| 2. |
2197-1661
|
[1] |
BRACKET
|
|
| 3. |
2120-2166D5
|
[1] |
BOLT
|
|
| 4. |
K1030700
|
[1] |
HARNESS;JOINT
|
|
| 4. |
310207-00743
|
[1] |
|
|
| 4. |
310207-02560B
|
[1] |
|
|
| 5. |
2114-1898D2
|
[1] |
WASHER
|
|
| 6. |
2121-1311D2
|
[1] |
NUT
|
|
