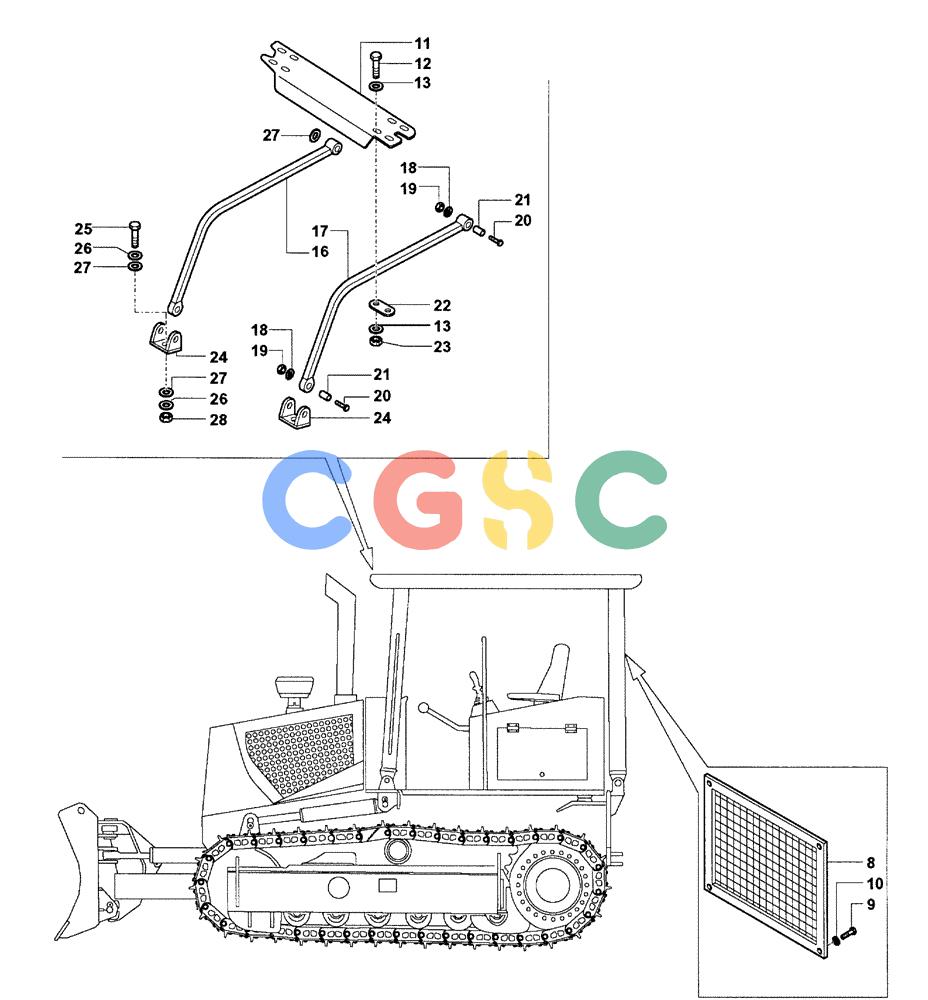

纽荷兰零件查询(DC70) - CRAWLER DOZER (N.A. VERSION) (4/99-) (9.800[01A]) - SHIELDS DC70 - DC80 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
128 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8. | 76598462 | [1] | SHIELD | MAC |
| 9. | 76591115 | [5] | SCREW | MAC Superseded by part number: 11112224 |
| 10. | 76598239 | [5] | LOCK WASHER | MAC Superseded by part number: 76605521 |
| 11. | 76590744 | [1] | NUT | MACSHIELD Superseded by part number: 12577521 |
| 12. | 76610050 | [8] | SCREW | MACSCREW Superseded by part number: 190003800887 |
| 13. | 76590724 | [16] | WASHER | MAC Superseded by part number: |
| 16. | 76610042 | [1] | SHIELD | MACSHIELD |
| 17. | 76610043 | [1] | SHIELD | MACSHIELD |
| 18. | 76591411 | [8] | WASHER | MAC |
| 19. | 76591395 | [4] | NUT | MAC |
| 20. | 76591396 | [4] | SCREW | MAC |
| 21. | 76591402 | [4] | SILENTBLOC | MAC |
| 22. | 76610044 | [4] | BRACKET | MACBRACKET |
| 23. | 76591294 | [4] | NUT | MAC Superseded by part number: 12577411 |
| 24. | 76610115 | [2] | SUPPORT | MACSUPPORT |
| 24. | 76610045 | [2] | SUPPORT | MACSUPPORT |
| 25. | 76610047 | [2] | SCREW | MACSCREW Superseded by part number: 2976844 |
| 26. | 76610046 | [4] | WASHER | MACWASHER |
| 27. | 76591401 | [8] | WASHER | MAC |
| 28. | 76610051 | [2] | NUT | MACNUT, LOCK Superseded by part number: 86639243 |
