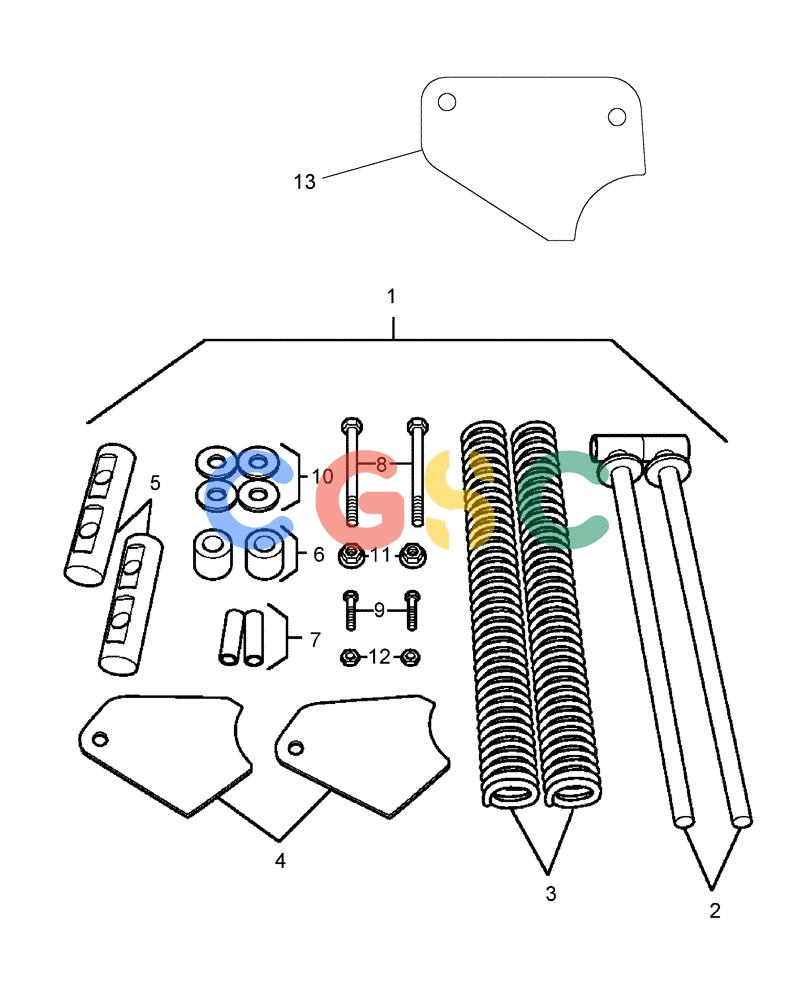

凯斯零件查询(RBX563) - CASE IH ROUND BALER (9/05-12/06) (18.96) - DOUBLE SPRING KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87040143
|
[1] |
DIA KIT, HARVESTER
|
PA
Double Spring, Includes: Installation Instructions
|
| 2. |
87028071
|
[2] |
ROD ASSY.
|
PA
|
| 3. |
87029355
|
[2] |
SPRING,Compression, 2.14" OD x 19.9" L
|
NH
|
| 4. |
87520954
|
[1] |
SUPPORT ASSY.
|
PA
LH
|
| 4. |
87520955
|
[1] |
SUPPORT ASSY.
|
PA
RH
|
| 5. |
87037447
|
[2] |
PIN
|
PA
|
| 6. |
86562970
|
[4] |
BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L
|
NH
|
| 7. |
87022950
|
[2] |
SPACER,12.83mm ID x 19.05mm OD x 58.75mm L
|
PA
|
| 8. |
426-896
|
[2] |
BOLT,Hex, 1/2" - 13 x 6", Gr 8
|
CAS
Superseded by part number: 280470
|
| 9. |
426-524
|
[4] |
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8
|
CAS
Superseded by part number: 86514369
|
| 10. |
141781
|
[8] |
WASHER
|
NH
|
| 11. |
232-4148
|
[2] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
| 12. |
232-4145
|
[4] |
LOCK NUT,5/16"-18, GC
|
FLX
Superseded by part number: 280736
|
| 13. |
87381148
|
[4] |
PLATE
|
PA
|
