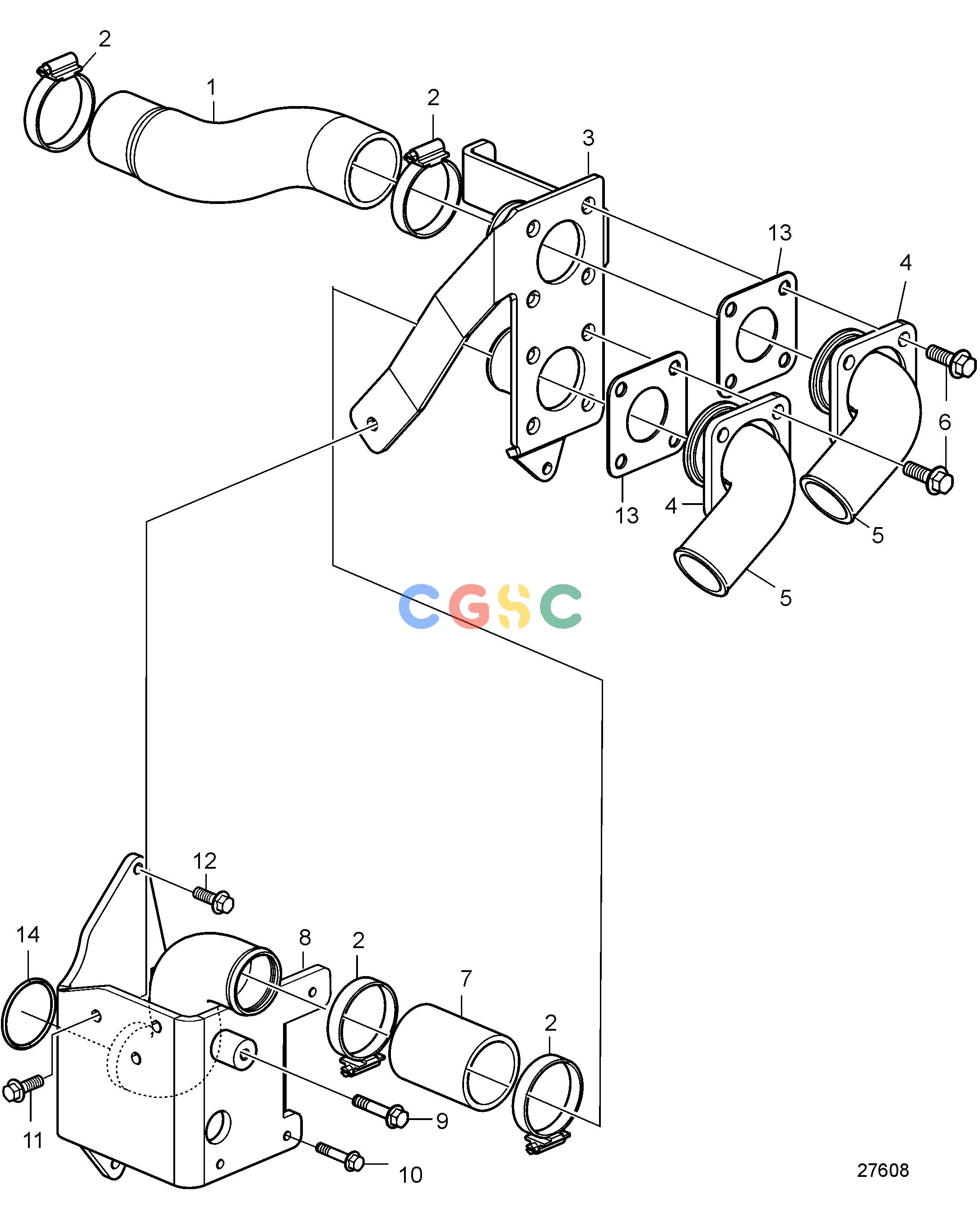

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Cooling SystemKeel CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22276765
|
[1] |
Hose
|
|
| 2. |
60111132
|
[4] |
Hose clamp
|
|
| 3. |
22276741
|
[1] |
Bracket
|
|
| 4. |
842029
|
[2] |
Flange
|
|
| 5. |
848596
|
[2] |
Hose attachment
|
|
| 6. |
969445
|
[8] |
Flange screw
|
|
| 7. |
992129
|
[1] |
Rubber hose
|
|
| 8. |
22212804
|
[1] |
Bracket
|
|
| 9. |
947760
|
[1] |
Flange screw
|
|
| 10. |
946470
|
[3] |
Flange screw
|
|
| 11. |
945444
|
[1] |
Flange screw
|
|
| 12. |
945444
|
[4] |
Flange screw
|
|
| 13. |
3888837
|
[2] |
Gasket
|
|
| 14. |
969415
|
[1] |
O-ring
|
|
