沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Cooling SystemWater PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
246 次

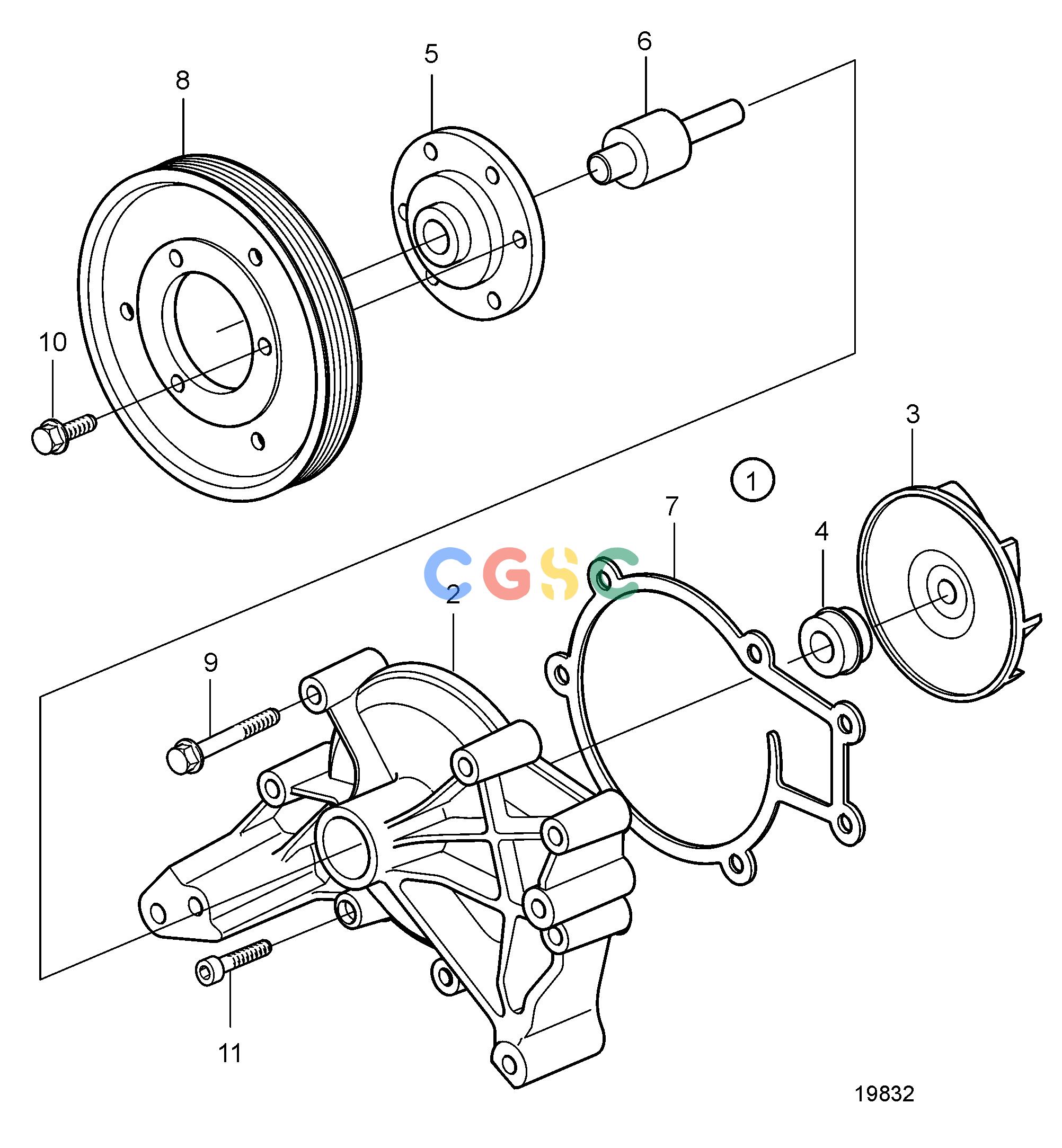

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803854
|
[1] |
Coolant pump, exch
|
SN-2006032252
|
| 1. |
3801313
|
[1] |
Coolant pump, exch
|
SN2006032253-, Replaced by 3801650
|
| 1. |
3801650
|
[1] |
Coolant pump, exch, exch
|
|
| 1. |
22577750
|
[1] |
Coolant pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3582673
|
[1] |
Sealing ring
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
3818912
|
[1] |
Gasket
|
(3583811)
|
| 8. |
3582674
|
[1] |
Pulley
|
|
| 9. |
973924
|
[6] |
Flange screw
|
L=50mm
|
| 10. |
946173
|
[3] |
Flange screw
|
L=20mm
|
| 11. |
959223
|
[1] |
Hex. socket screw
|
L=30mm
|
