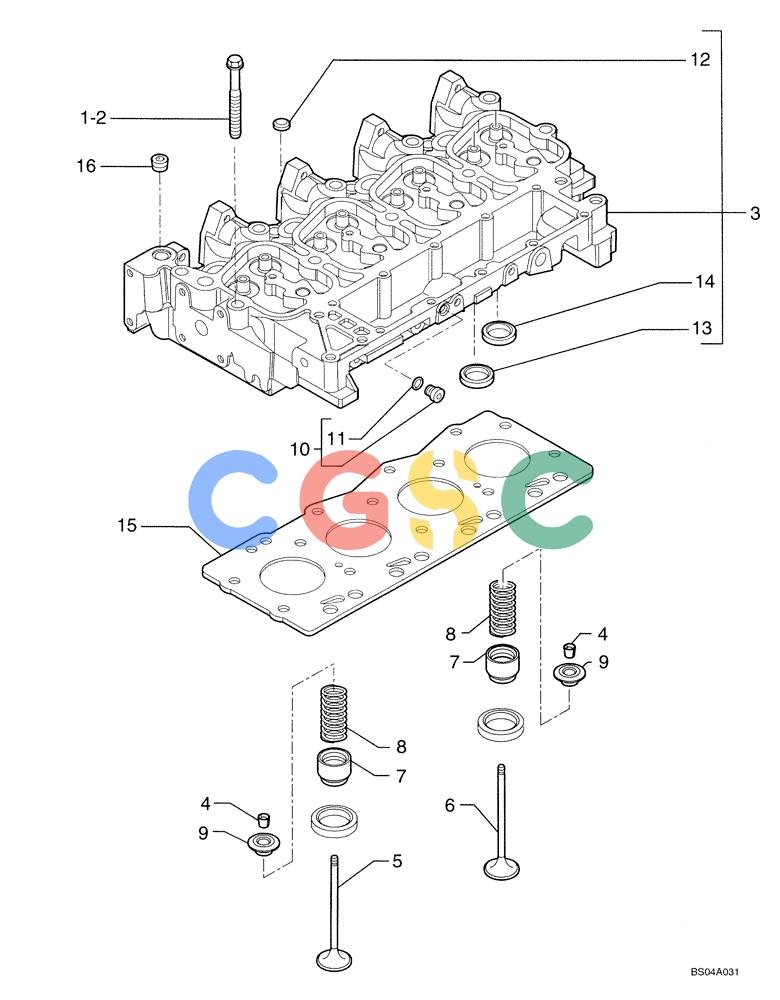

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-17) - CYLINDER HEAD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4892861 | [4] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TOR |
| 2. | 4892859 | [10] | BOLT,Flng, M12 x 1.75 x 143mm | TOR |
| 3. | 4895790 | [1] | CYLINDER HEAD | TORIncl. Ref 12 -14 |
| . . | 4895790R | [1] | REMAN-CYLINDER HEAD | TORDC75 (8/04-) Superseded by part number: 87536180R |
| . . | 4895790C | [1] | CORE-CYLINDER HEAD | TORReturn Number |
| 4. | 4895183 | [16] | COLLET | TOR |
| 5. | 4895188 | [4] | STD EXHAUST VALVE | TORSTD ENGINE EXHAUST VALVE |
| 6. | 4895187 | [4] | STD INLET VALVE | TORSTD ENGINE INLET VALVE |
| 7. | 4895347 | [8] | SEAL | TOR |
| 8. | 4895215 | [8] | VALVE SPRING | TORLength 63.5 mm |
| 8. | 2831472 | [8] | VALVE SPRING | TORLength 65.6 mm Superseded by part number: 4895215 |
| 9. | 4895184 | [8] | RETAINER | TOR |
| 10. | 4899009 | [1] | PLUG,M10 x 1.5 | TORIncl. Ref 11 |
| 11. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR |
| 12. | 4895179 | [3] | EXPANSION PLUG,M20.93 | TOR |
| 13. | 4897178 | [4] | VALVE SEAT | TORExhaust |
| 14. | 4897179 | [4] | VALVE SEAT | TORIntake |
| 15. | 2830919 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TOR |
| 15. | 2830920 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR |
| 16. | 4895078 | [5] | PIPE PLUG,1/2"-14 | TOR |
| 16. | 2856677 | [5] | PLUG | TOR |
