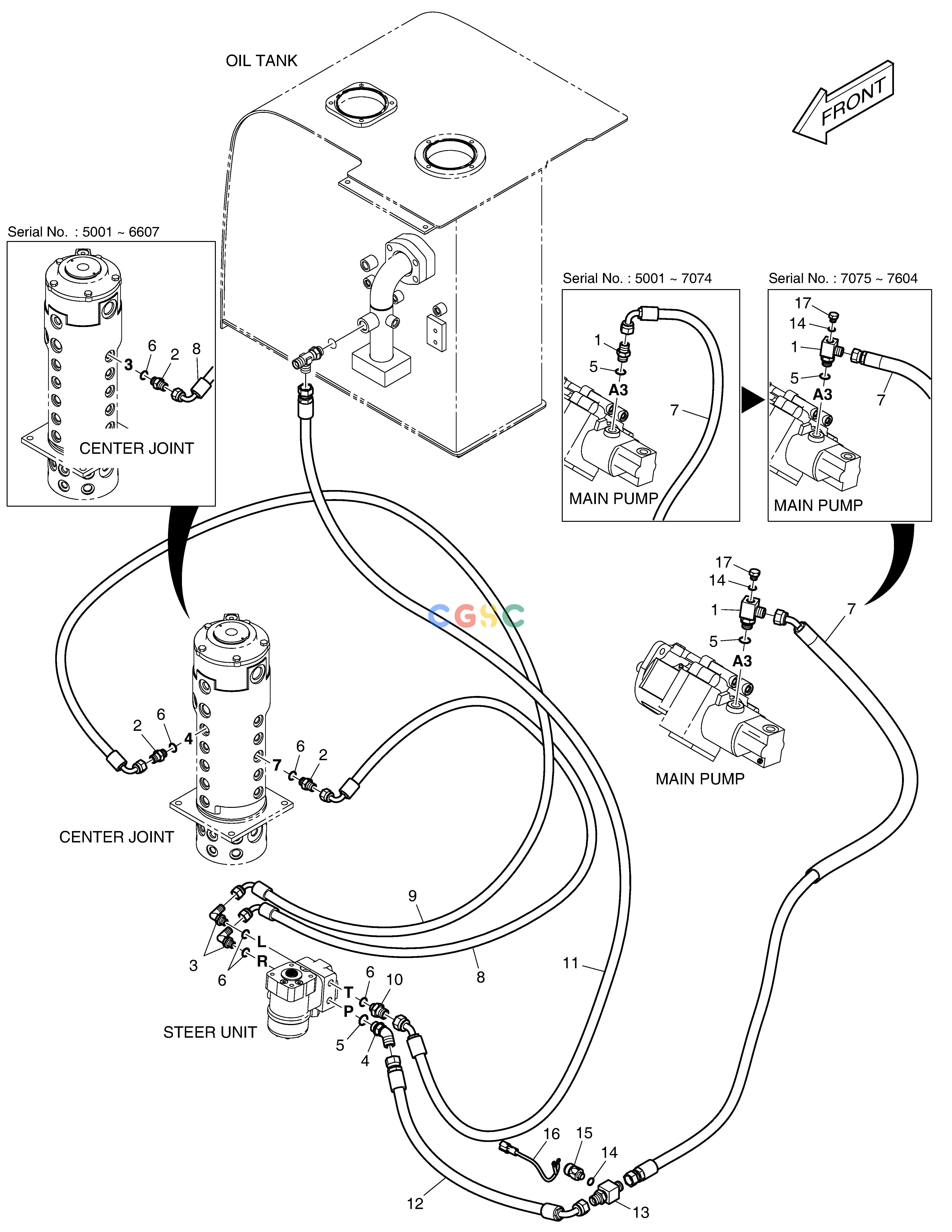

斗山零件查询STEERING PIPING - EMR DX55W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
718 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02146
|
[-] |
|
|
| 1. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 1. |
DS2365002
|
[1] |
TEE
|
|
| 10. |
2181-1126D115
|
[1] |
ADAPTER
|
|
| 11. |
DS2092195
|
[1] |
HOSE
|
|
| 12. |
DS2093833
|
[1] |
|
|
| 13. |
430225-00026
|
[1] |
|
|
| 14. |
S8000111
|
[1] |
O-RING
|
|
| 14. |
S8000111
|
[2] |
O-RING
|
|
| 15. |
301413-00017
|
[1] |
|
|
| 16. |
530-00067
|
[1] |
HARNESS
|
|
| 17. |
DS2901009
|
[1] |
PLUG
|
|
| 17. |
2181-1950D1
|
[1] |
PLUG
|
DS2901009
|
| 2. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 3. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 4. |
2181-2419D3
|
[1] |
ELBOW
|
|
| 5. |
S8000181
|
[2] |
O-RING
|
|
| 6. |
S8000141
|
[5] |
O-RING
|
|
| 7. |
DS2093834
|
[1] |
|
|
| 7. |
DS2094490
|
[1] |
|
|
| 7. |
DS2054579
|
[1] |
|
|
| 8. |
DS2091104
|
[1] |
HOSE
|
|
| 9. |
DS2091172
|
[1] |
HOSE
|
|
