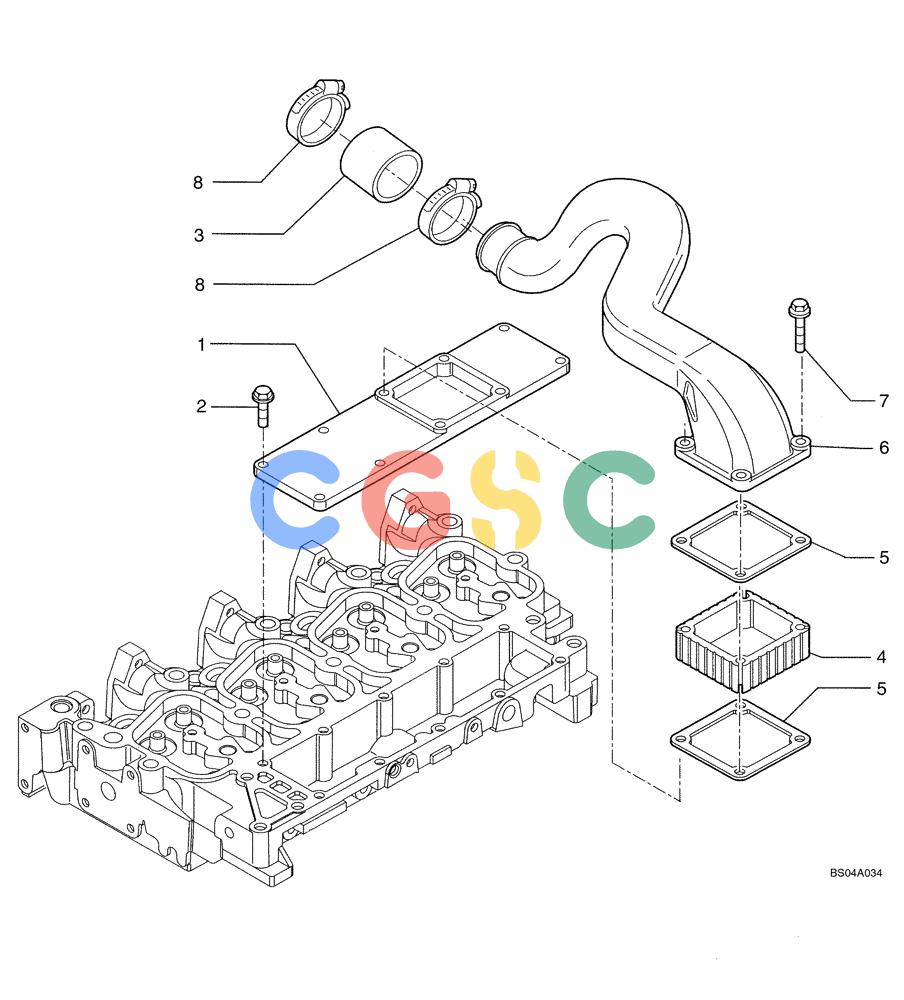

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-20) - MANIFOLD - INTAKE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
582 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852044 | [1] | INLET MANIFOLD | TORAluminum; If used Superseded by part number: |
| 1. | 2856462 | [1] | INLET MANIFOLD | TORCOVER, Manifold Inlet, Plastic; If Used Superseded by part number: |
| 2. | 4899039 | [6] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TOR |
| 3. | 2852029 | [1] | HOSE,50mm ID x 64mm L | TOR Superseded by part number: 504063980 |
| 4. | 4895648 | [1] | SPACER | TOR Superseded by part number: |
| 5. | 4899921 | [2] | GASKET,1.2mm Thk | TOR |
| 4. | 2856263 | [1] | SPACER | TORAir Intake Connector Superseded by part number: |
| 6. | 2852030 | [1] | SUCTION PIPE | TOR Superseded by part number: 504052006 |
| 7. | 4895294 | [4] | BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9 | TOR |
| 8. | 4899629 | [2] | HOSE CLAMP,50.8mm - 63.5mm | TORIf Used Superseded by part number: 17764993 |
| 8. | 2853076 | [2] | HOSE CLAMP | TOR70 mm; If Used Superseded by part number: 13000890 |
| 8. | 4895641 | [1] | HOSE CLAMP,52.32mm - 76.2mm | TORIf Used |
