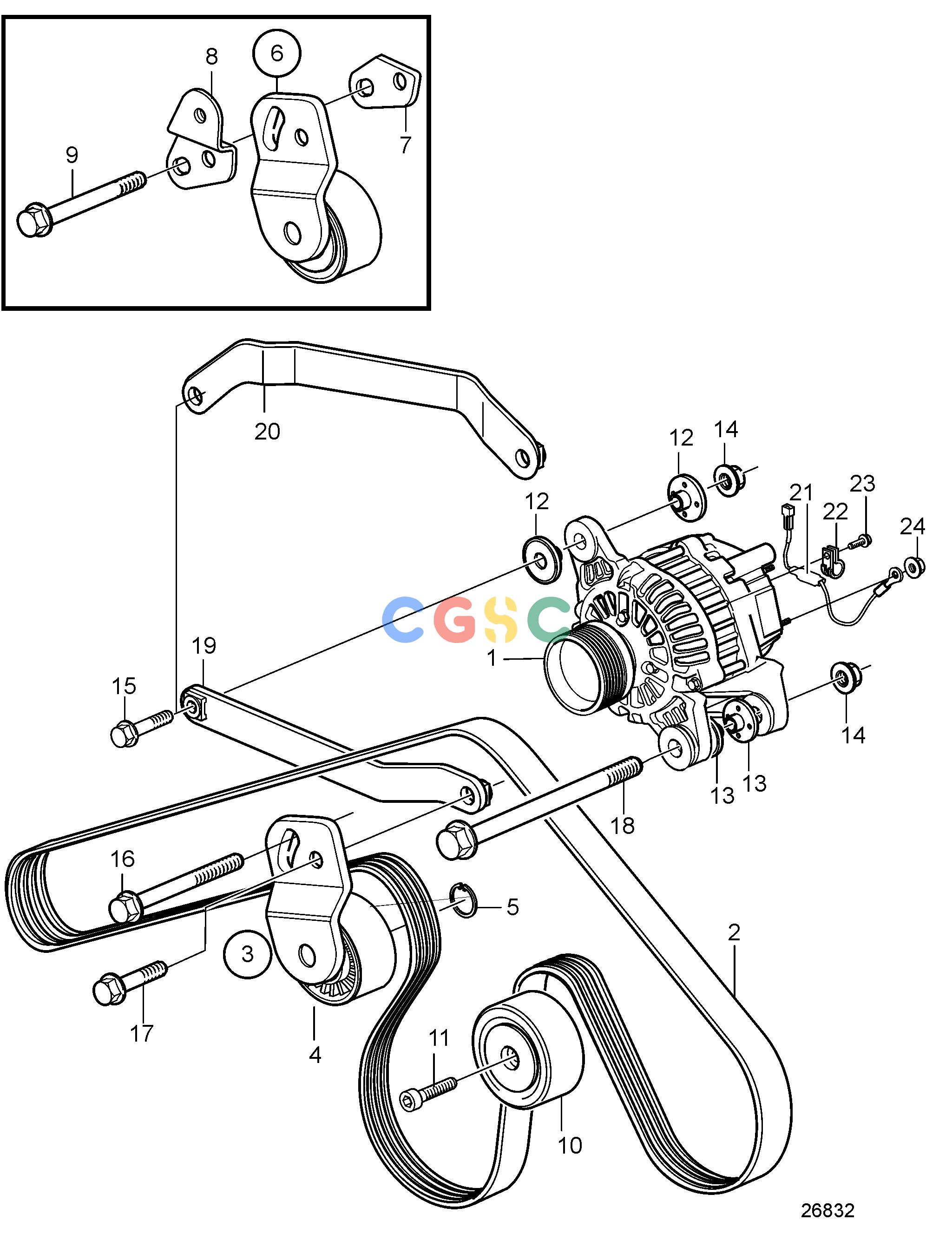

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemAlternator with Installation Parts. SN-2006036629EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803911
|
[1] |
Alternator, exch
|
14V, 115A
|
| 1. |
3803912
|
[1] |
Alternator, exch
|
28V, 80A
|
| 2. |
3583729
|
[1] |
Belt, generator
|
other
|
| 2. |
991586
|
[1] |
V-ribbed belt, generator
|
SOLAS
|
| 2. |
3582696
|
[1] |
V-ribbed belt, power steering pump
|
other
|
| 2. |
991589
|
[1] |
V-ribbed belt, power steering pump
|
SOLAS
|
| 3. |
3583665
|
[1] |
Belt tensioner
|
Replaced by 21344508
|
| 4. |
3582694
|
[1] |
Pulley
|
|
| 5. |
914451
|
[1] |
Snap ring
|
|
| 6. |
21344508
|
[1] |
Belt tensioner
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
965190
|
[1] |
Flange screw
|
|
| 10. |
3847482
|
[2] |
Idler pulley
|
(3848896)
|
| 11. |
959224
|
[2] |
Hex. socket screw
|
|
| 12. |
3589369
|
[2] |
Insulating bushing
|
D=8mm
|
| 13. |
21308514
|
[2] |
Insulating bushing
|
D=12mm
|
| 14. |
971096
|
[2] |
Flange nut
|
|
| 15. |
946470
|
[1] |
Flange screw
|
|
| 16. |
965189
|
[1] |
Flange screw
|
|
| 17. |
965186
|
[1] |
Flange screw
|
|
| 18. |
978447
|
[1] |
Flange screw
|
|
| 19. |
3584076
|
[1] |
Bracket
|
|
| 20. |
3588184
|
[1] |
Bracket
|
350A-B, 370D-B, 435D-A, For compressor
|
| 21. |
881679
|
[1] |
Resistor
|
12V
|
| 21. |
21967118
|
[1] |
Resistor
|
24V
|
| 22. |
952626
|
[1] |
Clamp
|
|
| 23. |
948663
|
[1] |
Flange screw
|
|
| 24. |
983712
|
[1] |
Hexagon nut
|
|
