纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-22) - CRANKSHAFT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
936 次

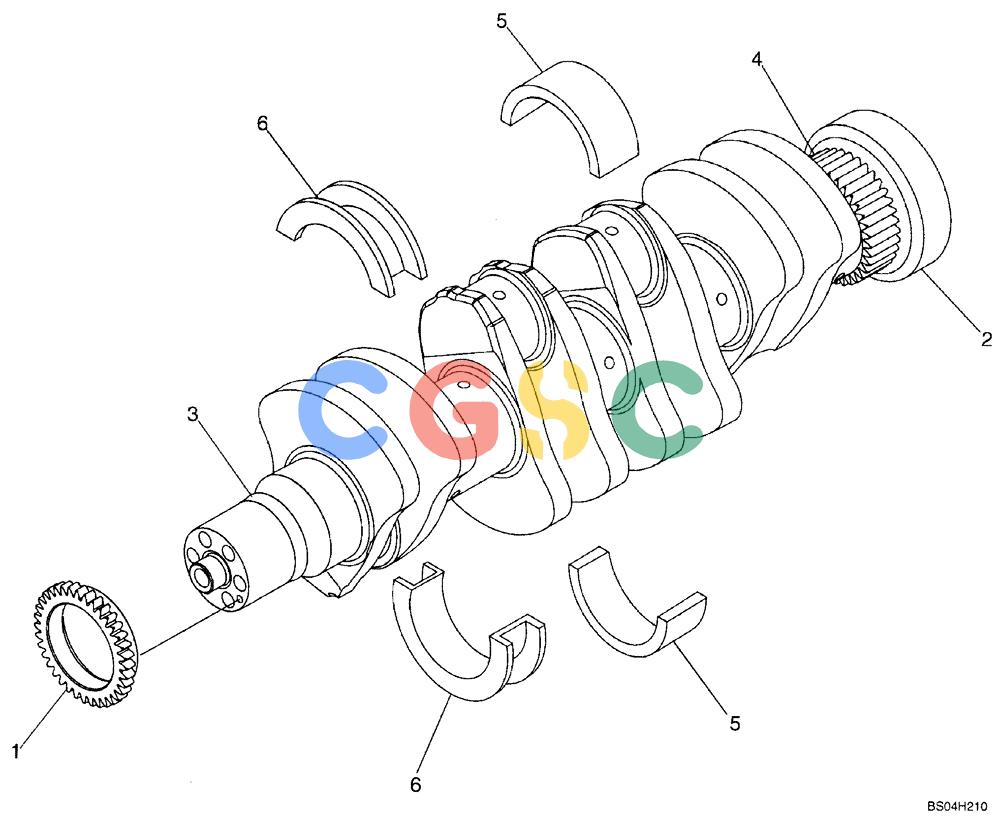

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2853822 | [1] | CRANKSHAFT | TORReplaces 2852009; Incl. 1-4 Superseded by part number: |
| . . | 2853822R | [1] | REMAN-CRANKSHAFT | MKTRemanufactured Crankshaft; |
| . . | 2853822C | [1] | CORE-CRANKSHAFT | MKTReturn Number |
| 1. | 4893386 | [1] | GEAR,36 T | TOR |
| 2. | 2831066 | [1] | COLLAR; Crankshaft | |
| 3. | NSS | [1] | NOT SERVICED SEPARATELY | CONCRANKSHAFT |
| 4. | 4892438 | [1] | GEAR | TORCrankshaft |
| 5. | 4895013 | [4] | CRANKSHAFT BEARING | TORMain, Std. |
| 5. | 4895017 | [4] | BEARING HALF | TORMain, Std. Superseded by part number: 2995787 |
| 5. | 2855016 | [4] | CRANKSHAFT BEARING,14.45 mm | BHBMain; 0.25 Undersize |
| 5. | 2855017 | [4] | CRANKSHAFT BEARING,14.45 mm | BHBBEARING, CRANKSHAFT; Main; 0.50 Undersize |
| 5. | 2855018 | [4] | CRANKSHAFT BEARING,14.45 mm | BHBBEARING, CRANKSHAFT; Main; 0.75 Undersize |
| 5. | 2852019 | [4] | BEARING, CRANKSHAFT; Main; 1.00 Undersize | |
| 6. | 4895015 | [1] | THRUST BEARING | TORThrust |
| 6. | 4895414 | [1] | BEARING HALF | TORThrust Superseded by part number: 2995784 |
| 6. | 2855020 | [1] | CRANKSHAFT BEARING,14.45 mm | BHBBEARING, CRANKSHAFT; Thrust, 0.25 Undersize |
| 6. | 2855021 | [1] | CRANKSHAFT BEARING | BHBBEARING, CRANKSHAFT; Thrust, 0.50 Undersize |
| 6. | 2855022 | [1] | CRANKSHAFT BEARING,16.15 mm | BHBBEARING, CRANKSHAFT; Thrust, 0.75 Undersize |
| 6. | 2855023 | [1] | CRANKSHAFT BEARING,16.15 mm | BHBBEARING, CRANKSHAFT; Thrust, 1.00 Undersize |
