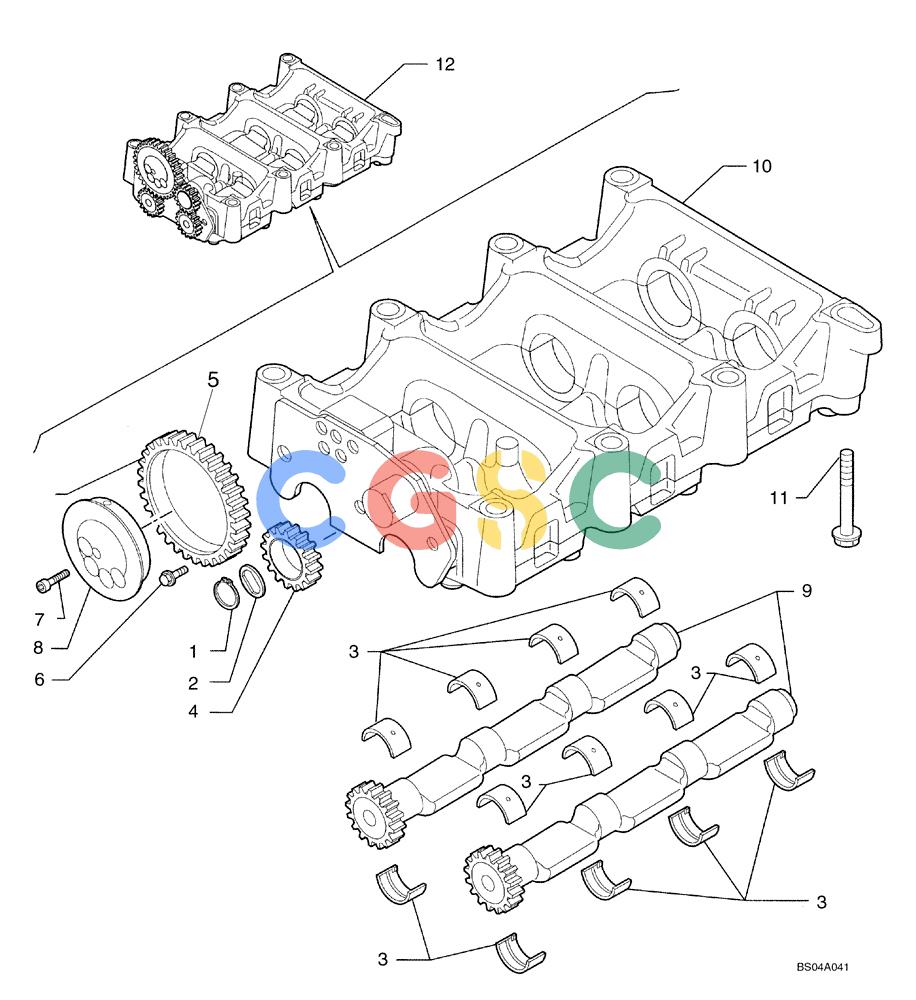

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-27) - DYNAMIC BALANCER, GEARS & SHAFTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
683 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4897125 | [1] | SNAP RING,Ext, M23 | TOR Superseded by part number: 16866473 |
| 2. | 4897123 | [1] | THRUST BEARING | TOR |
| 3. | 8093883 | [16] | SET OF STD MAIN BRGS | TOR |
| 4. | 4897048 | [1] | IDLER GEAR | TOR |
| 5. | 4896947 | [1] | IDLER GEAR | TOR |
| 6. | 4895586 | [3] | SCREW,Hex, Flg Hd, M8 x 16 | TOR |
| 7. | 2830433 | [5] | HEX SOC SCREW | TOR |
| 8. | 2831031 | [1] | IDLE SHAFT | TOR |
| 9. | 2853226 | [2] | SHAFT ASSY. | TOR Superseded by part number: 504088119 |
| 10. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 11. | 4899109 | [7] | SCREW,Hex, M10 x 1.5 x 80 | BASFlange |
| 11. | 4897934 | [1] | SCREW,Hex, Flg Hd, M10 x 100 | TOR |
| 12. | 2853225 | [1] | HOUSING | TORIncl. Ref 1 - 10 Superseded by part number: 2855743 |
