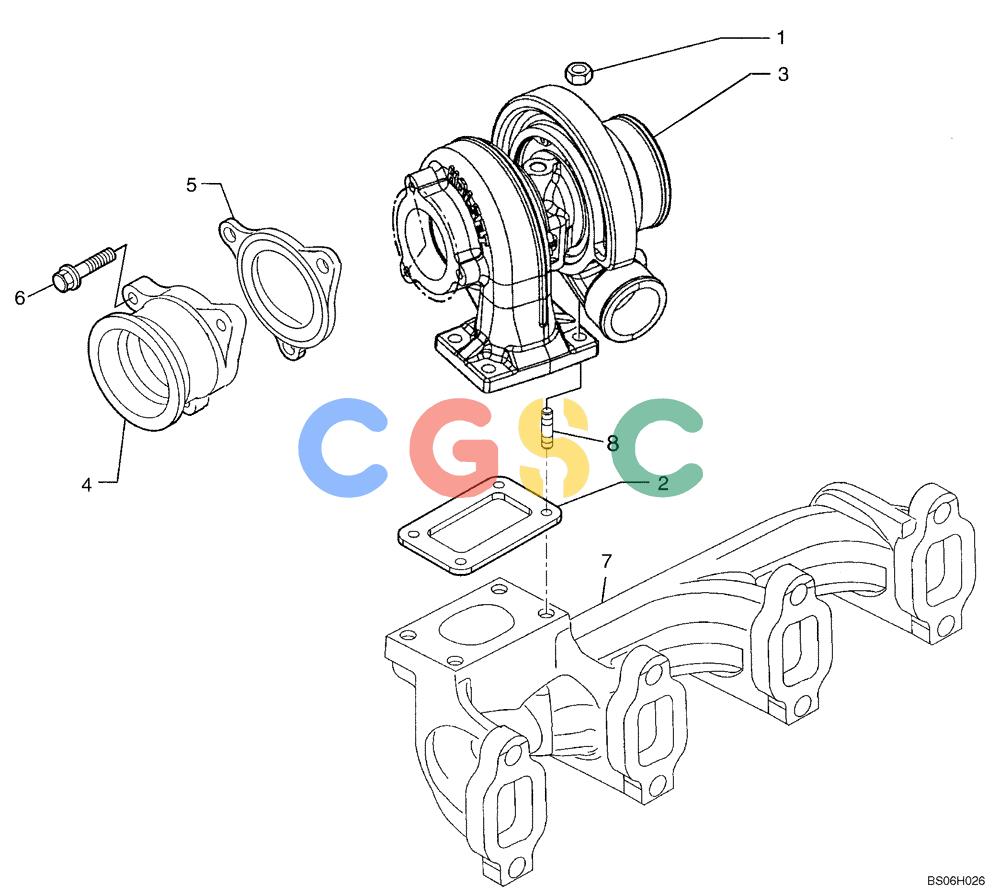

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-29) - TURBOCHARGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
335 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899118 | [4] | FLANGE NUT,M8 | TOR Superseded by part number: 500322677 |
| 2. | 4895133 | [1] | GASKET,0.5mm Thk | TOR |
| 3. | 2852507 | [1] | TURBOCHARGER | TORTurbocharger Assembly |
| 3. | 2852507R | [1] | REMAN-TURBOCHARGER | MKTRemanufactured TURBOCHARGER |
| 3. | 2852507C | [1] | CORE-TURBOCHARGER | MKTReturn Number |
| 4. | 2852510 | [1] | TUBE | TORTube, Rigid |
| 5. | 2852509 | [1] | MANIFOLD GASKET,0.5mm Thk | TOR Superseded by part number: 504050114 |
| 6. | 4898482 | [3] | BOLT,Flng, M8 x 1.25 x 30mm, Cl 10.9 | TOR |
| 8. | 4899119 | [4] | STUD,M8 x 1.25 x 40 | TOR Superseded by part number: 5801452462 |
| 9. | 2855273 | [1] | COLLAR | TORCollar Screw, Not Illustrated |
