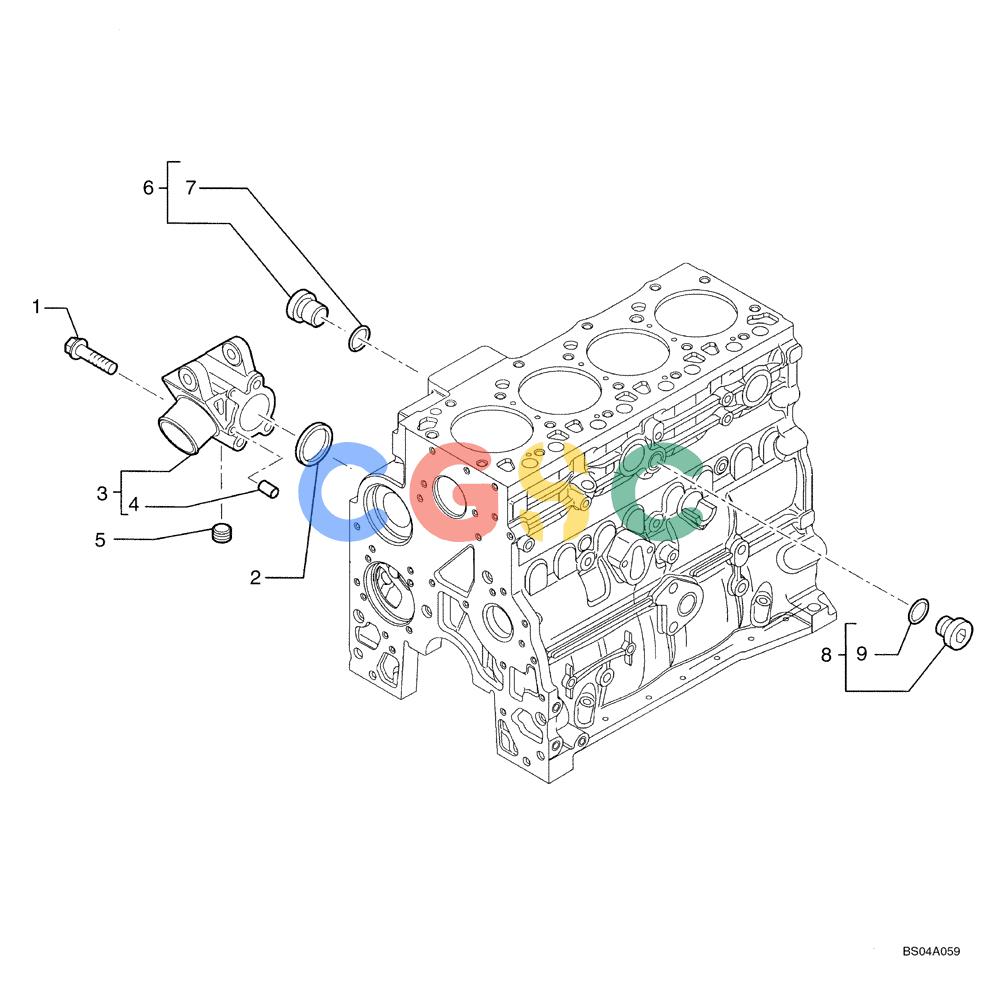

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-36) - COOLING SYSTEM - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
505 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899109 | [3] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
| 2. | 2854072 | [1] | SEALING RING,Square, 5.16mm Thk x 50.17mm ID | TORReplaces 4895121 Superseded by part number: 504062710 |
| 3. | 2852145 | [1] | SUPPORT | TORIncl. Ref 4 Superseded by part number: 504064336 |
| 4. | 2830894 | [2] | DOWEL,.25" OD x .625" L | TOR |
| 5. | 2852511 | [1] | PLUG | TOR Superseded by part number: 504074178 |
| 6. | 4895392 | [1] | HEX SOCKET PLUG,M18 x 1.5 | TORTorque Converter Oil; Incl. Ref 7 |
| 7. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 8. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORCompressor Plumbing; Incl. Ref 9 |
| 9. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TORNo Longer Available, Order 4895623 Threaded Plug Assy, Ref 8 Superseded by part number: 17281681 |
