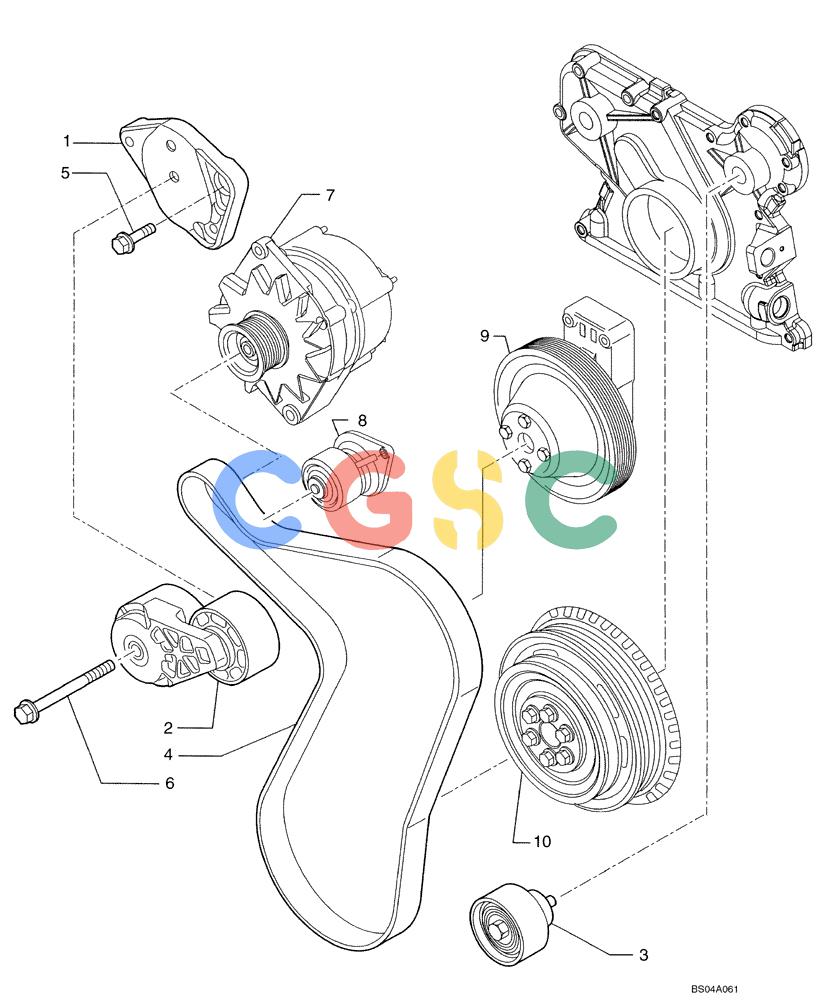

纽荷兰零件查询(DC75) - CRAWLER DOZER (8/04-) (02-38) - WATER PUMP - CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
976 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853230 | [1] | BRACKET | TORSupport Belt Tensioner Superseded by part number: 504088283 |
| 2. | 2853206 | [1] | BELT TENSIONER | TOR, Serial Range: Alternate-2856172 Superseded by part number: 2856172 |
| 2. | 2856172 | [1] | BELT TENSIONER | TOR, Serial Range: Alternate-2853206 |
| 3. | 2852245 | [1] | PULLEY,65mm OD | TOR |
| 5. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 6. | 4899109 | [1] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
