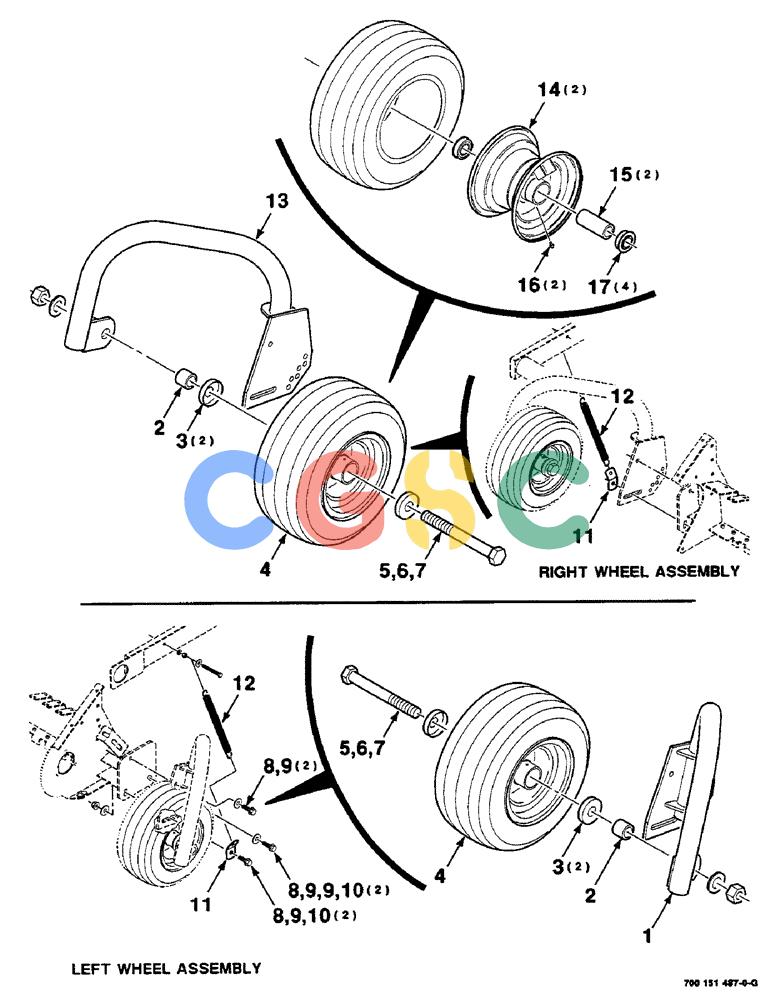

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (3-10) - PICKUP GAUGE WHEEL AND SUPPORT ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
808 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700147500
|
[1] |
STRUT
|
HFI
WA - left
|
| 2. |
6651772
|
[2] |
SPACER
|
HFI
|
| 3. |
700127756
|
[4] |
RING
|
CAS
- grass
|
| 4. |
700716366
|
[2] |
WHEEL
|
CAS
- assembly (Includes items 14, 15, 16 and 17)
|
| 5. |
413-16128
|
[2] |
BOLT,Hex, 1" - 8 x 8", Gr 5
|
CAS
1-8 X 8 C Superseded by part number: 18682
|
| 6. |
705574
|
[2] |
WASHER,1 1/8" x 2" x .156", HDN
|
CAS
|
| 7. |
232-41116
|
[2] |
LOCK NUT,1"-8, GC
|
CAS
NUT, LOCK, 1"-8, GC Superseded by part number: 9626600
|
| 8. |
8701237
|
[6] |
BOLT
|
CAS
1/2-13 X 1-1/2 HFS GR8
|
| 9. |
700711557
|
[8] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 10. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 11. |
700150878
|
[2] |
SPRING
|
HFI
TAB - spring
|
| 12. |
700708977
|
[2] |
SPRING
|
CAS
- extension
|
| 13. |
700147501
|
[1] |
STRUT
|
HFI
WA - right
|
| 14. |
700716367
|
[2] |
WHEEL
|
CAS
|
| 15. |
700714562
|
[2] |
SPACER
|
CAS
|
| 16. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 17. |
700714371
|
[4] |
FLANGED BEARING
|
CAS
BEARING - flange
|
