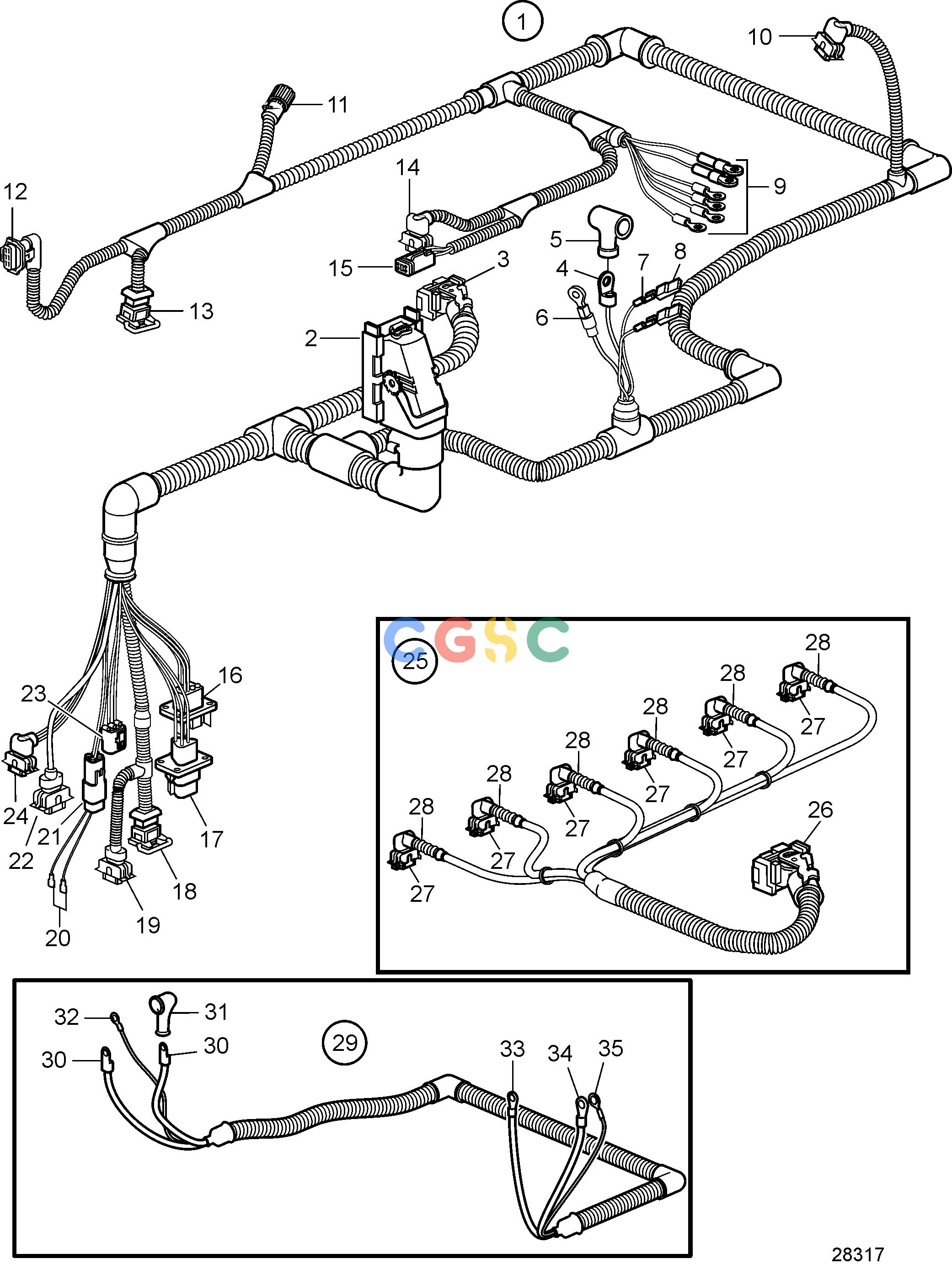

沃尔沃零件查询D6-280A-A; D6-280A-B; D6-280A-C; D6-280A-D; D6-280A-E; D6-280I-A; D6-280I-B; D6-280I-C; D6-280I-D; D6-280I-E; D6-310I-A; D6-310A-A; D6-310A-Electrical SystemElectrical System, SN2006022155-EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21138339
|
[1] |
Wiring harness
|
|
| 2. |
874567
|
[1] |
Cover, 89-pole
|
EDC-unit
|
| 3. |
874568
|
[1] |
Cover, 36-pole
|
EDC-unit
|
| 4. |
976478
|
[1] |
Cable terminal
|
|
| 5. |
842150
|
[1] |
Protective cap
|
|
| 6. |
976477
|
[1] |
Cable terminal
|
|
| 7. |
973121
|
[2] |
Cable terminal
|
|
| 8. |
949597
|
[2] |
Housing
|
|
| 9. |
978969
|
[1] |
Cable terminal
|
|
| 9. |
970790
|
[1] |
Cable terminal
|
|
| 9. |
940336
|
[1] |
Cable terminal
|
|
| 9. |
978966
|
[1] |
Cable terminal
|
|
| 9. |
978970
|
[1] |
Cable terminal
|
|
| 9. |
940337
|
[1] |
Cable terminal
|
|
| 10. |
874368
|
[1] |
Receptacle housing
|
|
| 11. |
8159018
|
[1] |
Adapter
|
|
| 12. |
874456
|
[1] |
Receptacle housing, pressure/temp
|
4-pole
|
| 13. |
977929
|
[1] |
Housing, WIF
|
3-pole
|
| 14. |
874368
|
[1] |
Receptacle housing, fuel pump
|
|
| 15. |
874957
|
[1] |
Housing
|
4-pole
|
| 16. |
874432
|
[1] |
Tab housing
|
VPEP
|
| 17. |
874654
|
[1] |
Housing, oil level
|
|
| 18. |
874432
|
[1] |
Tab housing, temperature
|
Fuel
|
| 19. |
874455
|
[1] |
Receptacle housing, pressure
|
3-pole
|
| 20. |
|
|
|
|
| 21. |
874802
|
[1] |
Housing
|
|
| 22. |
976256
|
[1] |
Housing, temperature
|
2-pole
|
| 23. |
970753
|
[1] |
Housing, temperature
|
2-pole
|
| 24. |
874368
|
[1] |
Receptacle housing
|
4-pole
|
| 25. |
3809877
|
[1] |
Wiring harness
|
|
| 26. |
874566
|
[1] |
Coupling piece
|
16-pole
|
| 27. |
874368
|
[6] |
Receptacle housing
|
2-pole
|
| 28. |
3809871
|
[6] |
Adapter
|
|
| 29. |
21163206
|
[1] |
Wiring harness
|
Replaced by 21736443
|
| 29. |
21736443
|
[1] |
Wiring harness
|
|
| 30. |
976478
|
[1] |
Cable terminal
|
|
| 31. |
842150
|
[1] |
Protective cap
|
|
| 32. |
973121
|
[1] |
Cable terminal
|
|
| 33. |
940336
|
[1] |
Cable terminal
|
|
| 34. |
940337
|
[1] |
Cable terminal
|
|
| 35. |
978966
|
[1] |
Cable terminal
|
|
