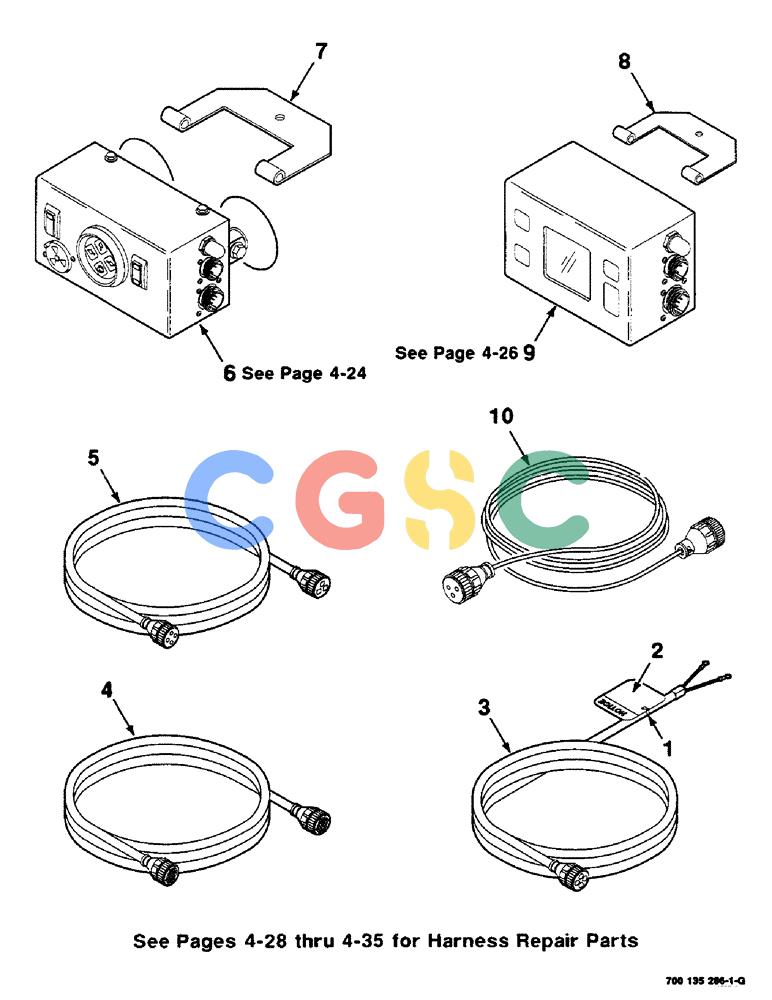

凯斯零件查询(RS451) - CASE IH ROUND BALER (1/99-12/00) (4-22) - ELECTRICAL CONTROL BOXES AND CABLE ASSEMBLIES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
869707C1
|
[1] |
STRAP,368.3mm L
|
IH
TIE - cable Superseded by part number: 529070
|
| 2. |
700707683
|
[1] |
DECAL
|
CAS
- notice, 12 volt
|
| 3. |
700717795
|
[1] |
HARNESS
|
CAS
CABLE ASSEMBLY
|
| 4. |
700715692
|
[1] |
HARNESS
|
L
- control (Without mesh wrap)
|
| . . |
700717507
|
[1] |
HARNESS
|
CAS
- control, (With mesh wrap)
|
| 5. |
700717823
|
[1] |
CABLE
|
CAS
ASSEMBLY
|
| 6. |
700716953
|
[1] |
CASE
|
L
CONTROL BOX ASSEMBLY COMPLETE (Without mesh wrap)
|
| 7. |
700151501
|
[1] |
SUPPORT
|
HFI
BRACKET - mounting, control box (Without mesh wrap)
|
| 8. |
700151500
|
[1] |
SUPPORT
|
HFI
BRACKET - mounting, control box (With mesh wrap)
|
| 9. |
700718052
|
[1] |
CONTROL
|
CAS
BOX ASSEMBLY COMPLETE (With mesh wrap)
|
| 10. |
700718048
|
[1] |
CABLE ASSY.
|
CAS
CABLE ASSEMBLY (Cable for Imported Tractors only)
|
