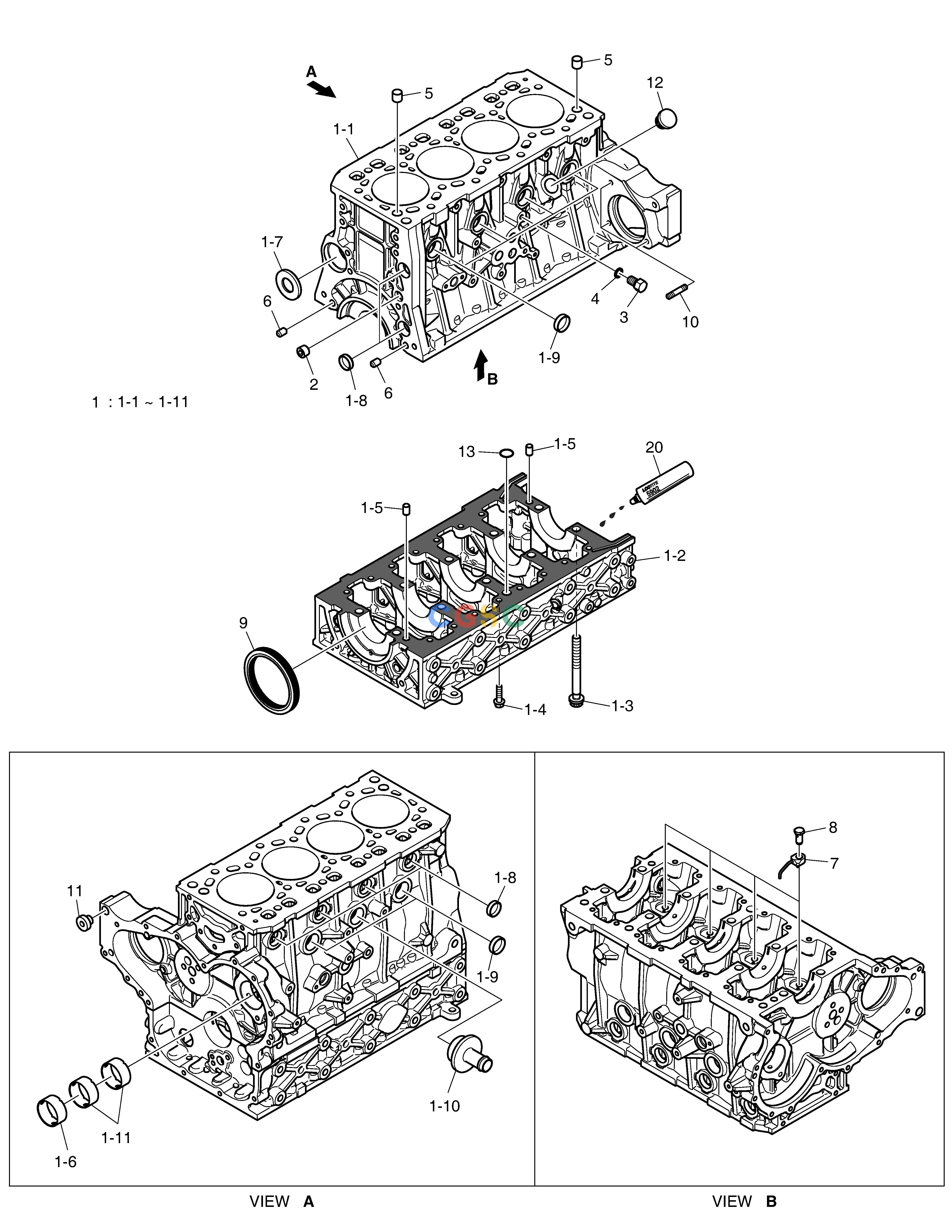

斗山零件查询CYLINDER BLOCK E57W Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
830 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150102-00021S
|
[1] |
|
|
| 1-1. |
150102-00029P
|
[1] |
|
|
| 1-10. |
430221-00120A
|
[1] |
|
|
| 1-11. |
131002-00573
|
[1] |
|
|
| 1-2. |
110970-00001M
|
[1] |
|
|
| 1-3. |
120112-00080A
|
[10] |
|
|
| 1-4. |
120106-00177
|
[16] |
|
|
| 1-5. |
120501-00660
|
[2] |
|
|
| 1-6. |
131002-00572
|
[1] |
|
|
| 1-7. |
110508-13222
|
[1] |
|
|
| 1-8. |
65.90302-0048
|
[6] |
. PLUG,CORE
|
|
| 1-9. |
65.90302-0041
|
[6] |
. PLUG;CORE
|
|
| 10. |
120117-00196
|
[3] |
|
|
| 10. |
120117-00196A
|
[3] |
|
|
| 11. |
110951-00082
|
[1] |
|
|
| 12. |
110508-02576
|
[1] |
|
|
| 13. |
401109-00135
|
[1] |
|
|
| 2. |
120705-01062
|
[1] |
|
|
| 20. |
500212-00016
|
[1] |
|
|
| 3. |
65.90310-0091
|
[1] |
SCREW;PLUG M12X1.5X20
|
|
| 4. |
06.56190-0703
|
[1] |
RING;SEAL
|
|
| 5. |
120501-00139
|
[2] |
CORE;PLUG
|
|
| 6. |
06.22022-1110
|
[2] |
|
|
| 7. |
430218-00013A
|
[4] |
|
|
| 8. |
410127-00310
|
[4] |
|
|
| 9. |
401106-00260
|
[1] |
|
401106-00545
|
| 9. |
401106-00545
|
[1] |
|
|
